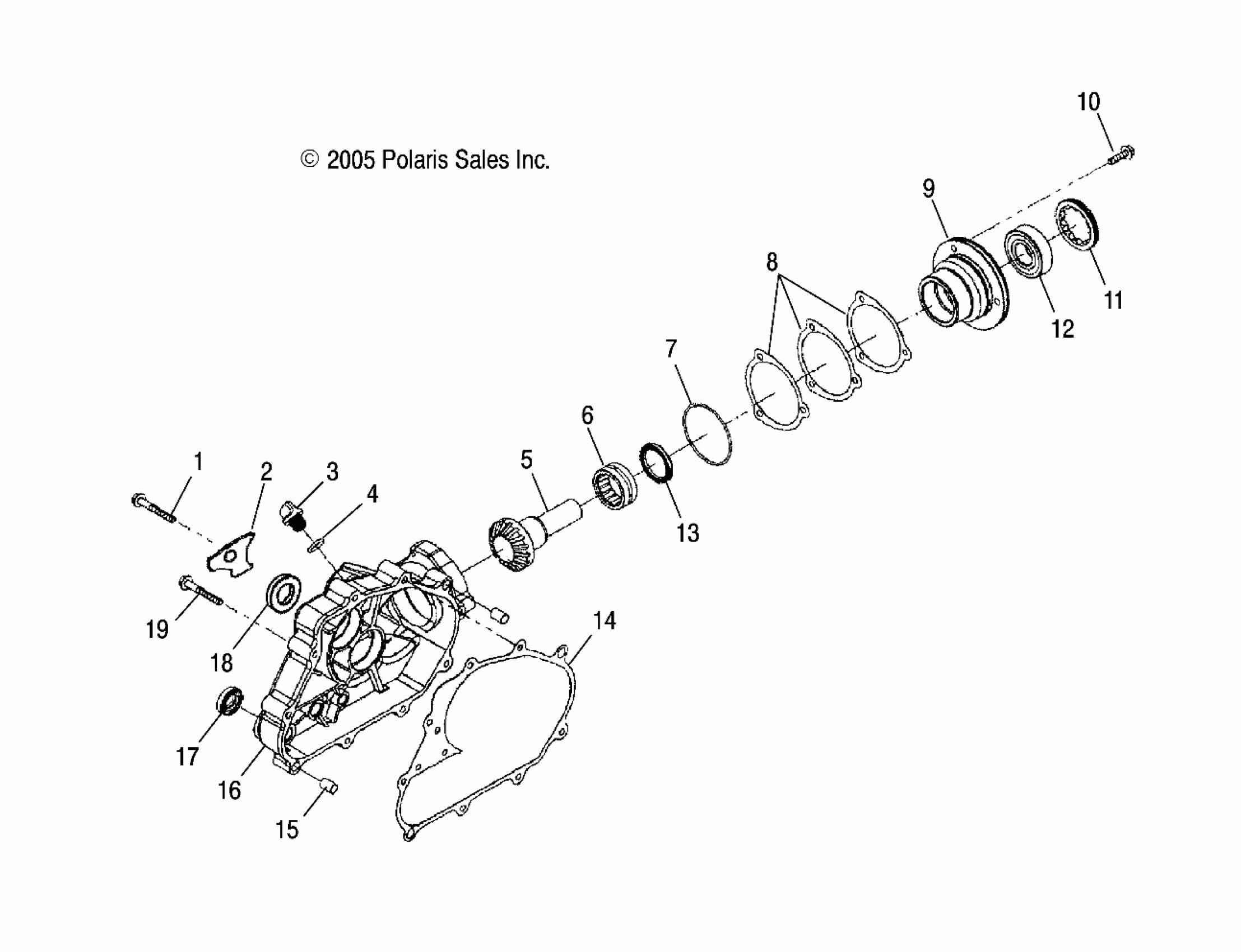

Polaris SAWTOOTH - A06SB20AA DRIVE ASSEMBLY, REAR - A06SB20AA/AB (4999202799920279A06) Diagram

Description

Price

BOLT

0452330

$3.99

RETAINER, SIGHT GLASS

0453245

$4.79

PLUG, OIL

0451813

$5.59

O-Ring

0450154

Unavailable

GEAR, SHAFT, OUTPUT

0452356

$103.99

BEARING, NEEDLE, ID 30MM

0452358

$71.99

O-RING

0452353

$2.39

SHIM, SET

0452352

$12.79

COLLAR, GEAR SHAFT

0452351

$87.99

BOLT

0452350

$3.99

NUT, LOCK

0452355

$27.99

BEARING, BALL

0452354

$43.99

SEAL, OIL

0452357

$15.99

GASKET, TRANSMISSION COVER

0452334

Unavailable

PIN, DOWEL

0450142

$3.99

Cover, Transmission

0452332

Unavailable

SEAL, OIL

0452175

$11.99

Asm., Sight Glass

0452333

$13.99

BOLT

0452343

$3.99
