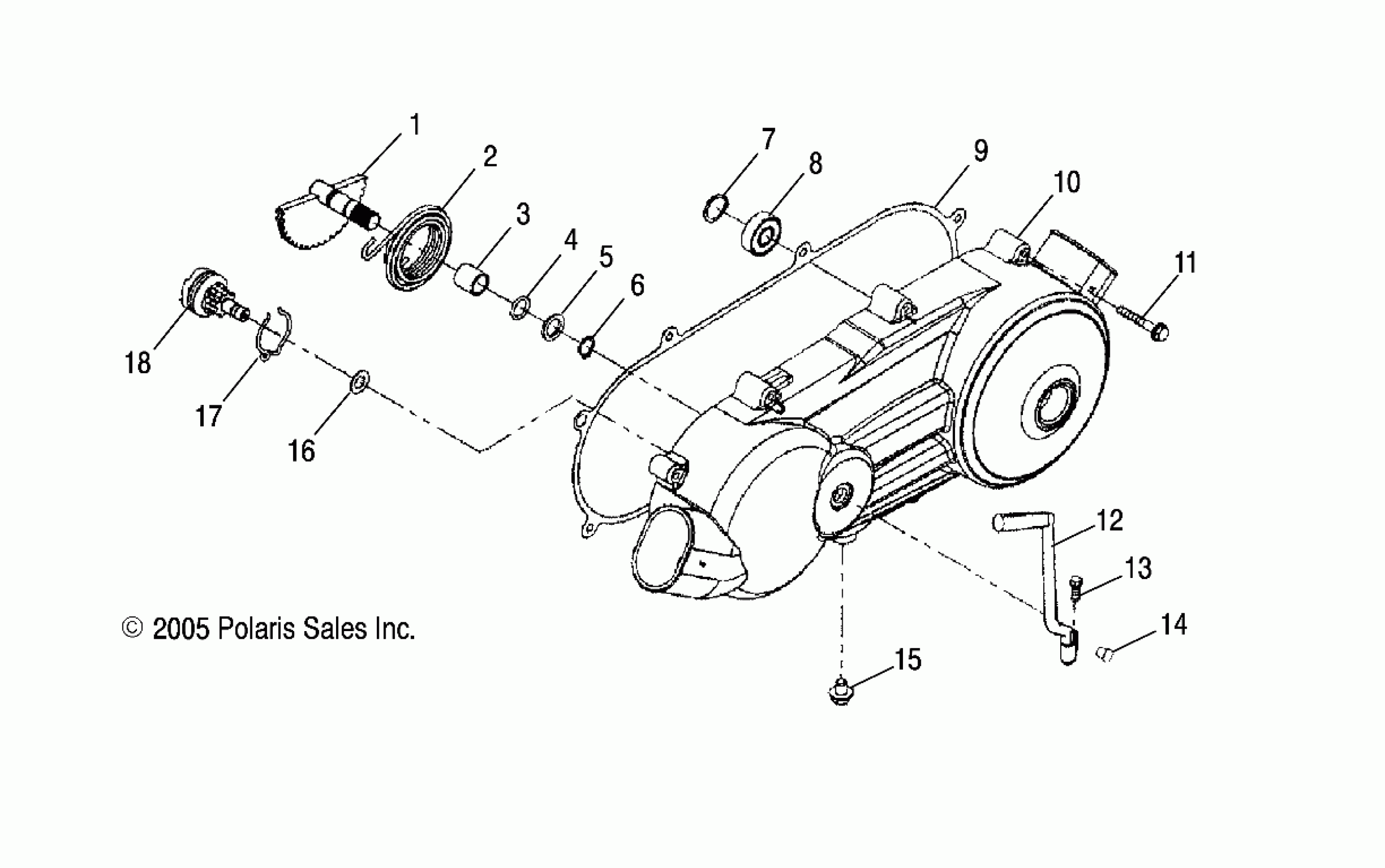

Polaris SAWTOOTH - A06SB20AA CRANKCASE COVER, LH - A06SB20AA/AB (4999202799920279A07) Diagram

#

Description
Price

1

Spindle, Kick Start

0452359

$60.70

2

SPRING, KICK START

0452360

$49.99

3

SPACER, KICK START

0452361

$2.99

4

O-RING

0452394

$1.60

5

WASHER, FLAT

0452363

$4.35

6

CLIP, RETAINER

0452364

$3.97

7

CLIP, RETAINER

0452339

$3.97

8

Bearing, Ball

0450261

$39.68

9

GASKET

0452328

$24.27

10

Cover, Clutch

0452327

$153.79

11

BOLT

0452331

$3.97

12

Asm., Kick Start

0453219

Unavailable

13

BOLT

0451704

$3.97

14

CAP, SHAFT, KICK STARTER

0451746

$5.65

15

BOLT

0452126

$4.76

16

WASHER, FLAT

0452367

$3.17

17

SPRING, KICK START GEAR

0452366

$8.70

18

GEAR, KICK START, DRIVEN

0452365

$88.87
