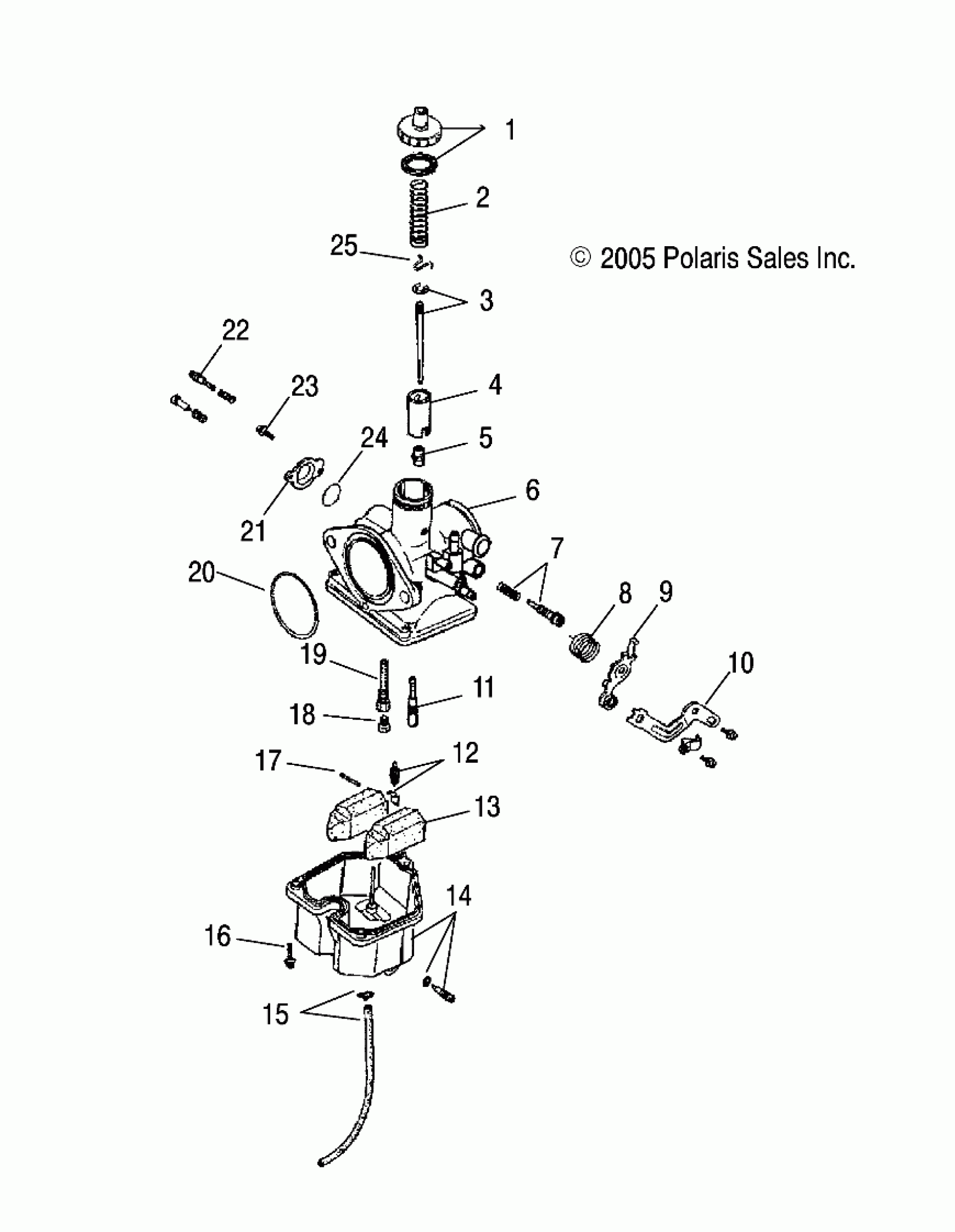

Polaris SAWTOOTH - A06SB20AA CARBURETOR - A06SB20AA/AB (4999202799920279A14) Diagram

#

Description
Price

1

ASM., CAP

0452544

$39.99

2

SPRING

0452548

Unavailable

3

ASM., JET NEEDLE

0452551

$27.99

4

THROTTLE, VALVE, 3.5

0453525

$67.99

5

NEEDLE, JET

0452539

$10.39

6

Asm., Carburetor

0452852

Unavailable

7

ASM., SCREW, AIR

0454491

$7.19

8

SPRING

0452543

$6.39

9

CHOKE, LEVER

0452538

$11.43

10

SUPPORT, CABLE

0453080

$31.99

11

JET, PILOT, #40

0453524

$31.99

12

VALVE, FLOAT

0452533

$27.99

13

FLOAT

0452546

$35.99

14

FLOAT, BODY

0452535

$63.99

15

ASM., DRAIN TUBE

0452552

$31.99

16

ASM., SCREW

0452540

$3.19

17

PIN, FLOAT

0452534

$3.19

18

JET, MAIN

3131608

$23.99

19

VALVE, NEEDLE

0452545

$27.99

20

O-RING

0452536

$1.59

21

COVER, DIAPHRAGM

0452547

$3.99

22

Asm., Screw

0452549

$5.59

23

ASM., SCREW

0452541

$3.19

24

O-RING

0452550

$1.59

25

CLIP, NEEDLE [USE POSITION #4]

0452542

$3.99
