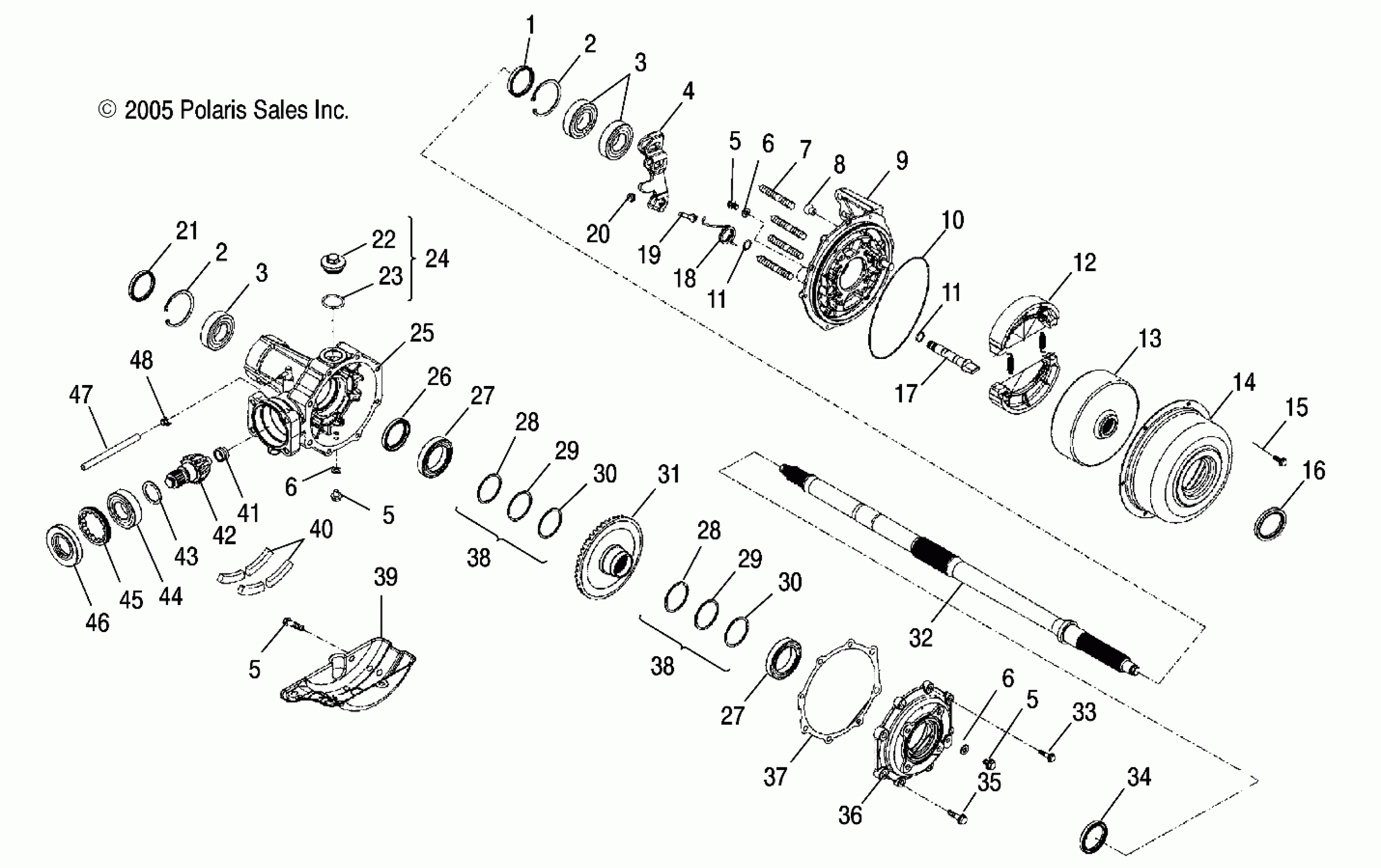

Polaris SAWTOOTH - A06SB20AA AXLE, REAR WHEEL - A06SB20AA/AB (4999202799920279C01) Diagram

#

Description
Price

1

O-RING

0452718

$1.99

2

RETAINER

0452717

$10.39

2

RETAINER

0452717

$10.39

3

BEARING

0452715

Unavailable

3

BEARING

0452715

Unavailable

4

Arm, Brake, Rear

0453253

Unavailable

5

BOLT

0452126

$4.79

5

BOLT

0452126

$4.79

5

BOLT

0452126

$4.79

5

BOLT

0452126

$4.79

6

WASHER, FLAT

0452712

$3.99

6

WASHER, FLAT

0452712

$3.99

6

WASHER, FLAT

0452712

$3.99

7

STUD, BOLT

0452714

$6.39

8

CAP, RUBBER

0452775

$2.39

9

PLATE, BRAKE

0452711

$127.99

10

O-RING

0452710

$4.79

11

O-RING

0452708

$1.49

11

O-RING

0452708

$1.49

12

ASM., BRAKE SHOE, REAR

0452705

Unavailable

13

DRUM, BRAKE

0452702

Unavailable

14

Cover, Rear, Brake Drum, Black [AA]

0452701-067

$83.99

14

Cover, Rear, Brake Drum, Silver [AB]

0452701-385

$79.03

15

BOLT

0452720

$3.99

16

SEAL

0452700

$19.99

17

SHAFT, BRAKE, REAR

0452706

$43.99

18

SPRING

0452722

$7.19

19

BOLT

0451704

$3.99

20

Nut

0450150

$1.49

21

SEAL, OIL

0452752

$15.99

22

Cap, Oil Fill

0452368

$23.99

23

O-RING, DRAIN PLUG

0452371

$1.59

24

ASM., CAP [INCL. 22,23]

0452754

$10.39

25

GEARCASE

0453148

$303.99

26

SEAL, OIL

0452737

$11.99

27

BEARING

0452730

$35.99

27

BEARING

0452730

$35.99

28

SHIM

0452734

$5.59

28

SHIM

0452734

$5.59

29

SHIM

0452733

$5.59

29

SHIM

0452733

$5.59

30

SHIM

0452732

$5.59

30

SHIM

0452732

$5.59

31

GEAR, RING

0452736

$311.99

32

AXLE

0452751

$303.99

33

BOLT

0452749

$3.19

34

SEAL, OIL

0452726

$11.99

35

BOLT

0452747

$4.79

36

Cover, Gearcase, Final

0453147

$151.99

37

GASKET, COVER

0452729

Unavailable

38

Asm., Shim

0452731

Unavailable

38

Asm., Shim

0452731

Unavailable

39

Plate, Gearcase, Black [AA]

0452757-067

$79.99

39

Plate, Gearcase, Silver [AB]

0452757-385

$66.39

40

SPACER, RUBBER

0452756

$8.79

41

BEARING, NEEDLE

0452739

$59.99

42

GEAR, PINION

0452740

$135.99

43

SHIM

0452741

$12.79

44

BEARING

0452742

$35.99

45

NUT

0452743

$27.99

46

SEAL, OIL

0452745

$15.99

47

Hose, Breather

0452698

$5.19

48

Clip, Cir

0452758

$3.99
