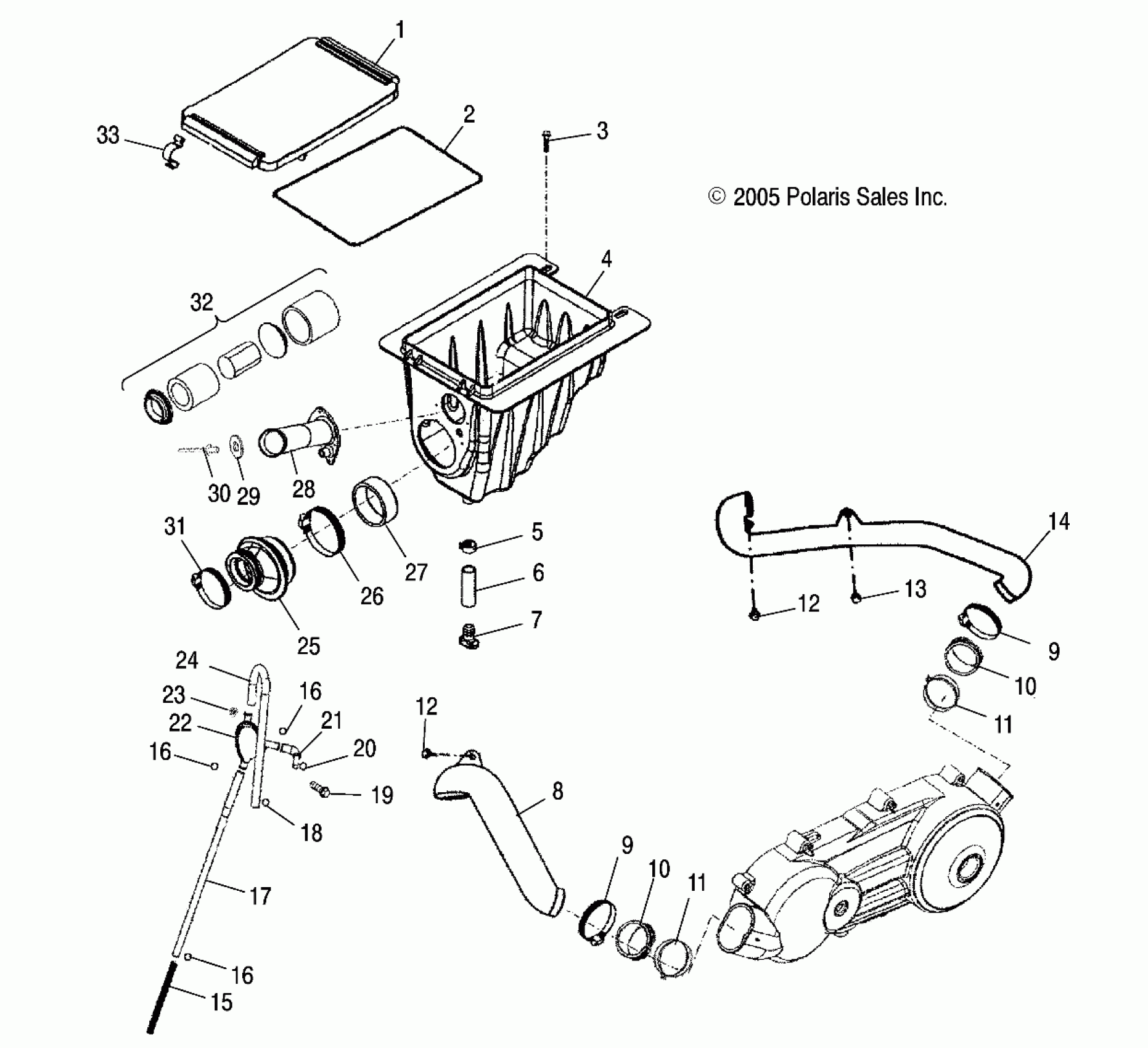

Polaris SAWTOOTH - A06SB20AA AIR CLEANER - A06SB20AA/AB (4999202799920279B01) Diagram

#

Description
Price

-

Asm., Air Box [Incl. 1-7,25-33]

0453084

Unavailable

-

Asm., Breather Tube [Incl. 15-24]

0452570

Unavailable

1

Cover, Air Box

0452560

$44.43

2

Gasket

0452569

$11.54

3

Bolt

0450340

$3.97

4

Box, Air

0452559

$161.49

5

Clamp

0452566

$4.76

6

Hose, Drain

0452567

$5.32

7

Plug, Trap

0452568

$16.14

8

Duct, Inlet, Air Box

0453214

$36.83

9

Clamp

0452578

$6.64

9

Clamp

0452578

$6.64

10

Boot, Duct

0452574

$13.75

10

Boot, Duct

0452574

$13.75

11

Clamp

0452577

$10.32

11

Clamp

0452577

$10.32

12

BOLT

0450824

$2.38

12

BOLT

0450824

$2.38

13

Bolt

0453249

$4.74

14

Duct, Outlet

0453241

Unavailable

15

Spring

0452793

$7.14

16

Clip

0452796

$3.97

16

Clip

0452796

$3.97

16

Clip

0452796

$3.97

17

Tube, Breather, Ventilated

0452794

$64.99

18

Clip

0452795

$3.97

19

Bolt

0450309

$3.97

20

Clip

0450054

$1.19

21

Tube, Breather, Inlet

0452572

Unavailable

22

Separator, Oil

0452307

Unavailable

23

Nut, Flange

0450880

$3.97

24

Tube, Breather, Outlet

0452573

Unavailable

25

Boot

0452563

$33.24

26

Clamp

0452561

$9.49

27

Duct

0452557

$26.65

28

Duct, Air Box

0453085

$38.99

29

Washer, Flat

0453098

$3.97

30

Rivet

0453097

$3.17

31

Clamp

0452562

$9.49

32

Element, Air Cleaner

0452306

$27.78

33

Clip

0452565

$5.69
