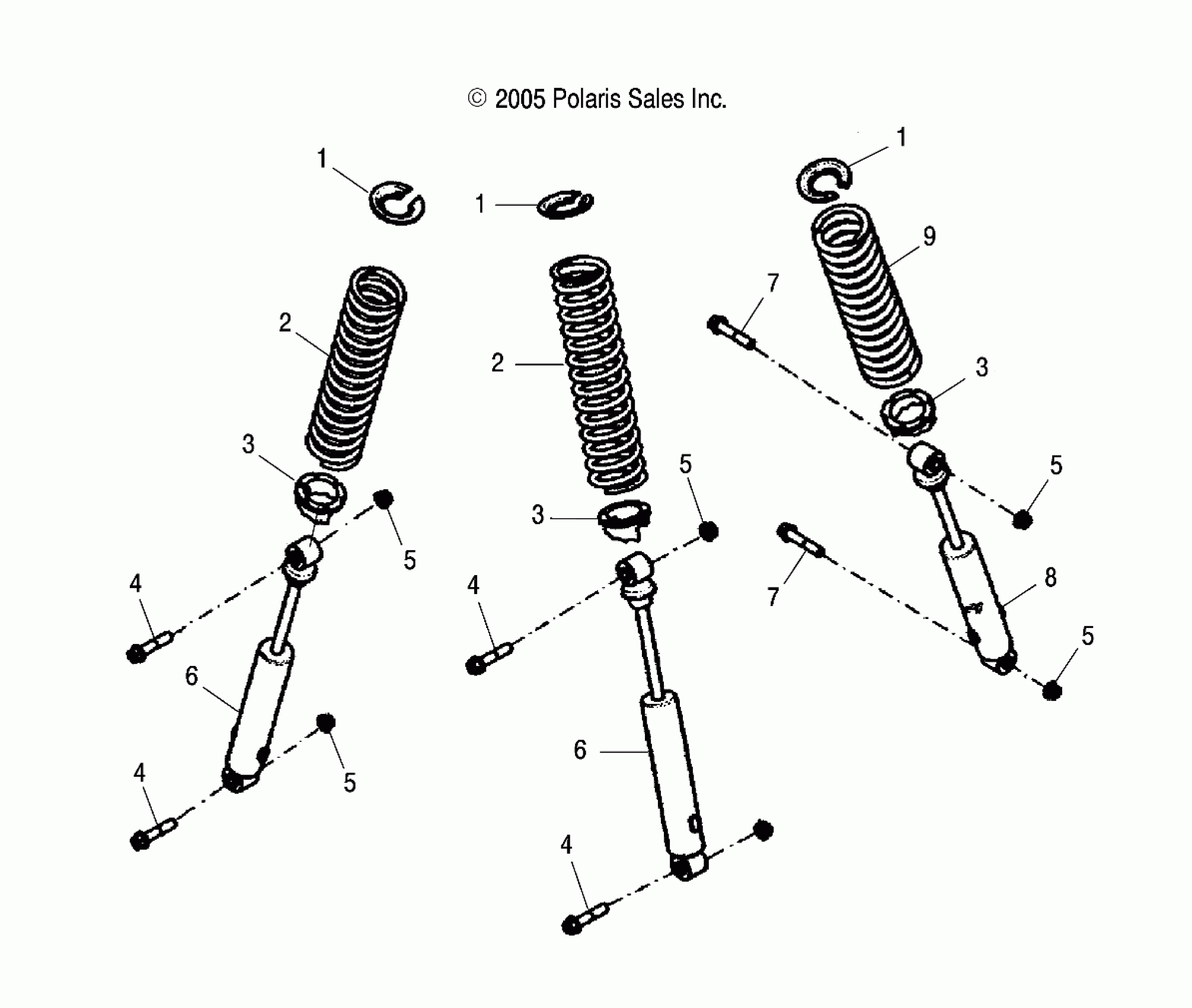

Polaris SAWTOOTH 200 - A07SB20AA SUSPENSION - A07SB20AA (49ATVSUSP07PHX) Diagram

#

Description
Price

1

RETAINER, SPRING

0453768

$9.52

1

RETAINER, SPRING

0453768

$9.52

1

RETAINER, SPRING

0453768

$9.52

2

SPRING- SUSP,88LBS/IN,RED [Std]

0452996-293

$45.39

2

Spring, Susp, Front, Red, 106 LBS/IN [Opt]

0452652-293

$45.39

2

SPRING- SUSP,88LBS/IN,RED [Std]

0452996-293

$45.39

2

Spring, Susp, Front, Red, 106 LBS/IN [Opt]

0452652-293

$45.39

3

COLLAR, ADJUSTMENT, SHOCK

0453787

$23.81

3

COLLAR, ADJUSTMENT, SHOCK

0453787

$23.81

3

COLLAR, ADJUSTMENT, SHOCK

0453787

$23.81

4

BOLT

0450820

$5.56

4

BOLT

0450820

$5.56

4

BOLT

0450820

$5.56

4

BOLT

0450820

$5.56

5

Nut

0450249

$3.97

5

Nut

0450249

$3.97

5

Nut

0450249

$3.97

5

Nut

0450249

$3.97

5

Nut

0450249

$3.97

6

SHOCK, FRONT, BLACK

0453788-067

$168.87

6

SHOCK, FRONT, BLACK

0453788-067

$168.87

7

BOLT

0452649

$4.35

7

BOLT

0452649

$4.35

8

SHOCK, SUSPENSION, REAR, BLACK

0453789-067

$199.98

9

Spring, Suspension, Rear, Red

0453769-293

$40.48
