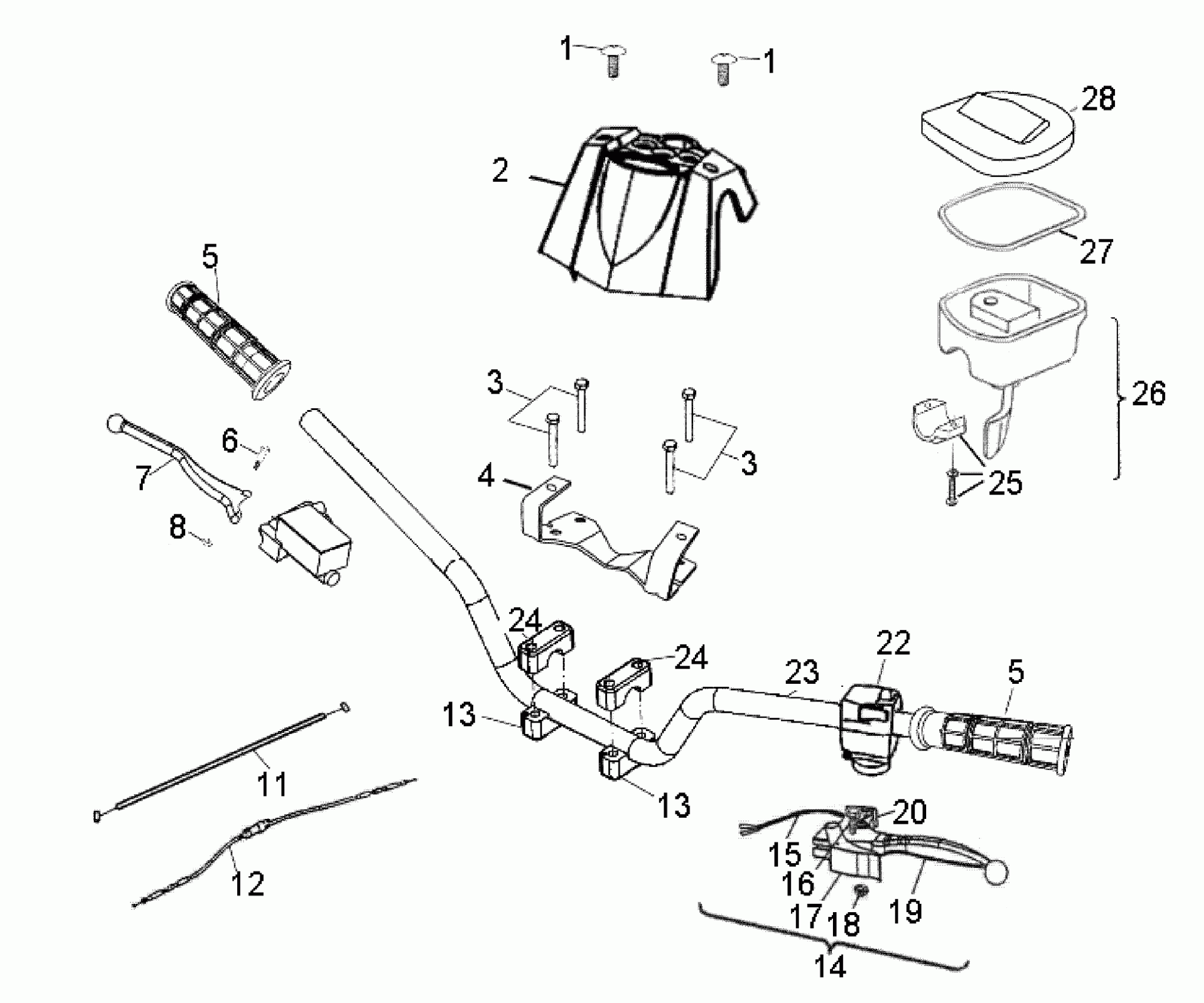

Polaris SAWTOOTH 200 - A07SB20AA HANDLEBAR - A07SB20AA (49ATVHANDLEBAR07SAW) Diagram

#

Description
Price

1

BOLT

0450622

$2.39

1

BOLT

0450622

$2.39

2

Pod, Handlebar, Black

0453064-070

$25.59

3

BOLT

0453256

$5.59

3

BOLT

0453256

$5.59

4

Bracket, Pod

0453233

$13.19

5

GRIP, HANDLEBAR

0453370

$23.99

5

GRIP, HANDLEBAR

0453370

$23.99

6

Bolt

0453805

$3.19

7

LEVER, BRAKE, RH

0453109

$35.99

8

Nut

0453804

$4.79

11

CHOKE, CABLE, MANUAL

0453773

$47.99

12

CABLE, THROTTLE

0453099

$51.99

13

CLAMP, HANDLEBAR, LOWER

0452685

$31.99

13

CLAMP, HANDLEBAR, LOWER

0452685

$31.99

14

Asm., Lever, LH

0453257

$69.84

15

SENSOR, BRAKE

0453815

$43.99

16

BOLT, BRAKE LEVER

0450807

$7.19

17

LOCK, BRAKE, PARK

0453774

Unavailable

18

NUT

0450808

$2.39

19

LEVER, BRAKE, LH

0452691

$31.99

20

Cam, Brake Lock

0453086

$38.39

22

ASM., SWITCH, LH

0453103

$143.99

23

HANDLEBAR

0453232

$67.99

24

CLAMP, HANDLEBAR, UPPER

0452688

$31.99

24

CLAMP, HANDLEBAR, UPPER

0452688

$31.99

25

ASM-THROTTLE CLAMP

2010191

$31.99

26

Asm., Throttle Control, 2X4

2010402

Unavailable

27

O-RING

5411439

$2.39

28

COVER, THROTTLE CONTROL

5434113

$31.99
