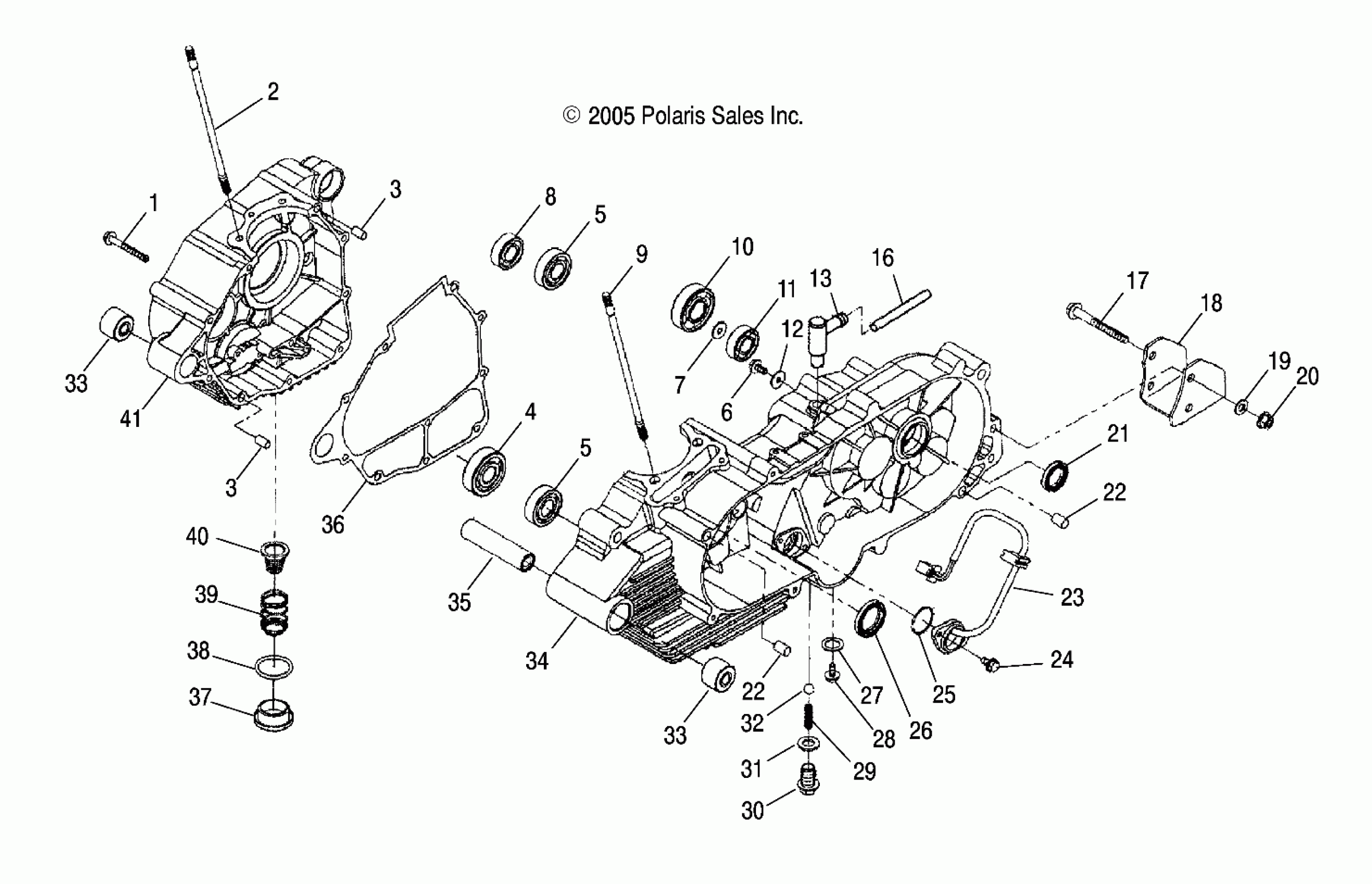

Polaris SAWTOOTH 200 - A07SB20AA ENGINE, CRANKCASE - A07SB20AA (49ATVCRANKCASE07PHX) Diagram

#

Description
Price

-

Asm., Engine, w/o Carb

0454109

Unavailable

1

BOLT

0452344

Unavailable

2

BOLT, STUD

0452335

$11.19

3

PIN, DOWEL

0452342

$3.99

3

PIN, DOWEL

0452342

$3.99

4

BEARING, BALL

0452345

$35.99

5

BEARING, BALL

0452348

$31.99

5

BEARING, BALL

0452348

$31.99

6

BOLT

0452330

$3.99

7

WASHER, FLAT

0452374

$5.59

8

BEARING, MAIN TRANSMISSION SHAFT

0452156

$15.99

9

BOLT, STUD

0452336

$10.39

10

BEARING, BALL

0452349

$35.99

11

BEARING, NEEDLE

0452373

$35.99

12

WASHER, FLAT

0452337

$3.99

13

Clamp

0450054

$1.49

16

HOSE, VENT

0452326

$6.39

17

BOLT

0452324

$6.39

18

BRACKET, MOTOR MOUNT

0452323

$43.99

19

WASHER, FLAT

0452325

$3.99

20

NUT

0450268

$1.49

21

SEAL, OIL

0452340

$11.99

22

PIN, DOWEL

0450142

$3.99

22

PIN, DOWEL

0450142

$3.99

23

SWITCH

0452329

$35.99

24

BOLT

0452138

$3.19

25

O-RING

0452129

$1.59

26

SEAL, OIL

0452341

$39.99

27

WASHER, FLAT

0452133

$3.99

28

BOLT, DRAIN PLUG

0452132

$4.79

29

SPRING, DETENT

0452135

Unavailable

30

BOLT

0452137

$7.19

31

WASHER, FLAT

0452136

$3.99

32

BALL, STEEL

0452134

$4.79

33

BUSHING, RUBBER

0452319

$7.19

33

BUSHING, RUBBER

0452319

$7.19

34

Crankcase, LH

0452322

$436.51

35

SPACER, COLLAR

0452320

$10.39

36

GASKET

0452321

Unavailable

37

Plug, Drain, Oil

0452368

$23.99

38

O-RING, DRAIN PLUG

0452371

$1.59

39

SPRING, SCREEN

0452370

$12.79

40

SCREEN

0452369

$12.79

41

Crankcase, RH

0452318

$205.99
