2005 Can-Am Sarasota 1000 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Can-Am Sarasota 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

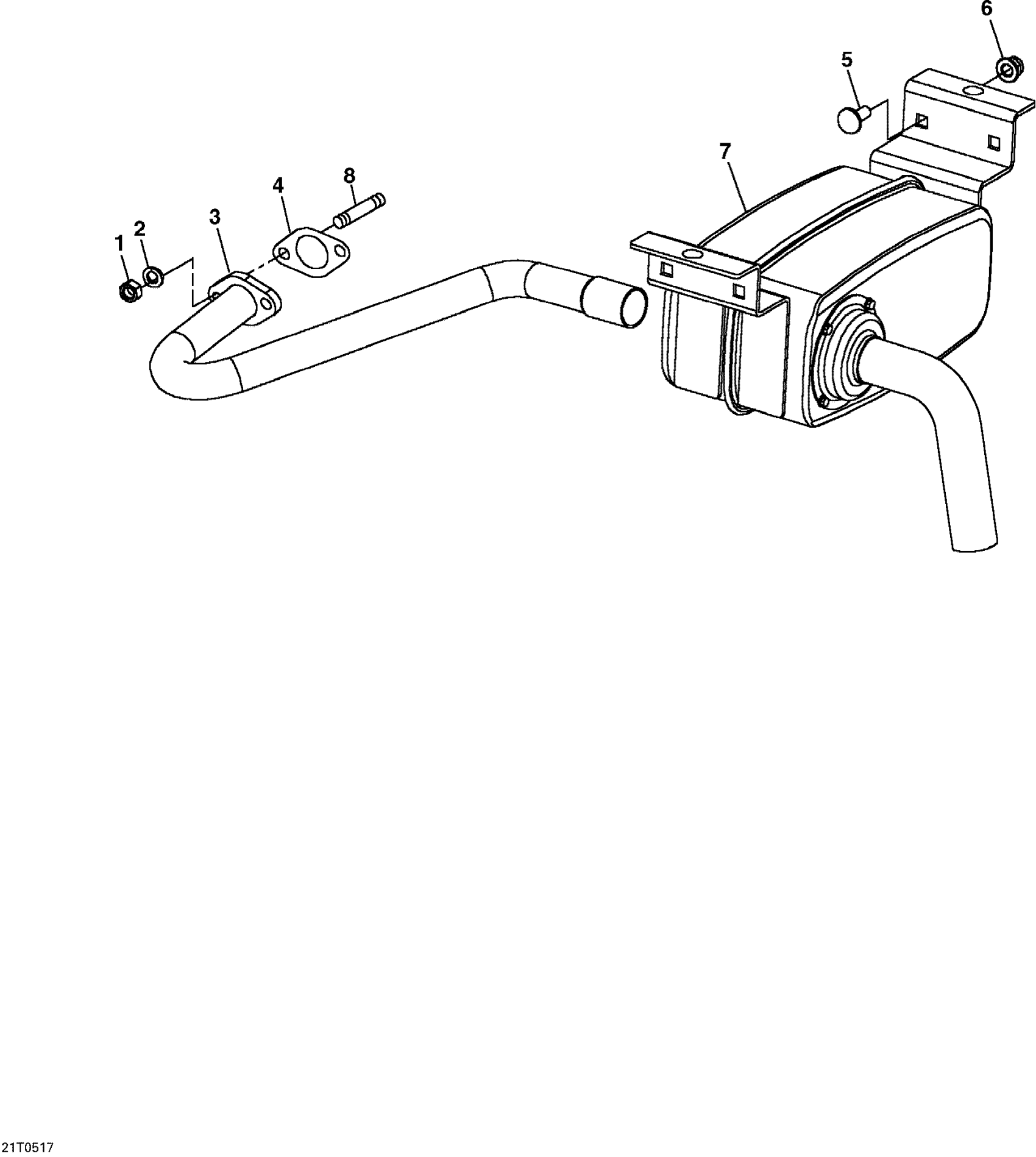

2005 Can-Am Sarasota 1000 Muffler Diagram

#

Description
Price
Status
Order Qty

1

Nut

DM149532

Out of stock

2

Lockwasher M8

D12M7065

Out of stock

3

Exhaust Pipe

DVGA10883

Out of stock

4

Gasket

DM73271

Out of stock

5

Carriage Bolt M8

D03M7184

Out of stock

6

Nut M8

D14M7396

Out of stock

7

Muffler

DVGA10877

Out of stock

8

Stud

DM117613

Out of stock
