2005 Can-Am Sarasota 1000 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Can-Am Sarasota 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

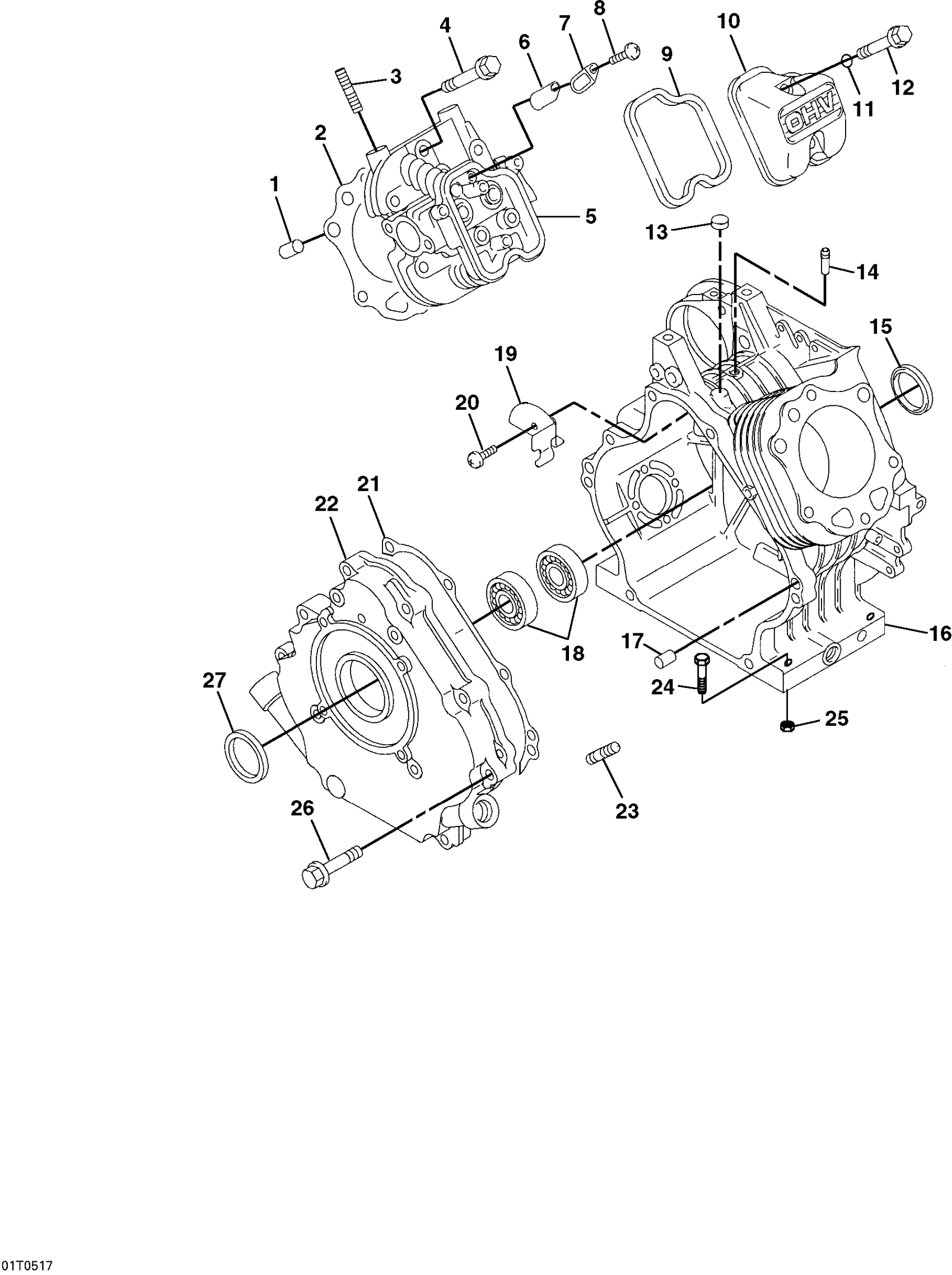

2005 Can-Am Sarasota 1000 Crankcase Diagram

#

Description
Price
Status
Order Qty

Short Block Ass'y | Not Shown

DAM133541

Out of stock

1

Pin

DM70227

Out of stock

2

Cylinder Head Gasket

DUP04731

Out of stock

3

Stud

DM68144

Out of stock

4

Hex. Flange Screw M8X45

D19M8318

Out of stock

5

Cylinder Head

DUP04732

Out of stock

6

Reed Valve

DM73817

Out of stock

7

Plate

DW40494

Out of stock

8

Screw

DM95848

Out of stock

9

Rocker Gasket

DUP04733

Out of stock

10

Rocker Case

DUP04734

Out of stock

11

O-Ring

DW40499

Out of stock

12

Hex. Flange Screw M6X35

D19M8290

Out of stock

13

Oil Seal

DM88987

Out of stock

14

Pulse Pipe

DM68067

Out of stock

15

Oil Seal

DM97289

Out of stock

16

Crankcase

DAM133549

Out of stock

17

Pin

DM74252

Out of stock

18

Ball Bearing

DUP04711

Out of stock

19

Deflector

DUP04766

Out of stock

20

Screw

DM95848

Out of stock

21

Gasket

DM149984

Out of stock

22

Crankcase Cover

DM149986

Out of stock

23

Stud

DM88447

Out of stock

24

Hex. Flange Screw M8X40

D19M7798

Out of stock

25

Nut M8

D14M7396

Out of stock

26

Hex. Flange Screw M8X40

DUP04712

Out of stock

27

Oil Seal

DPT18249

Out of stock
