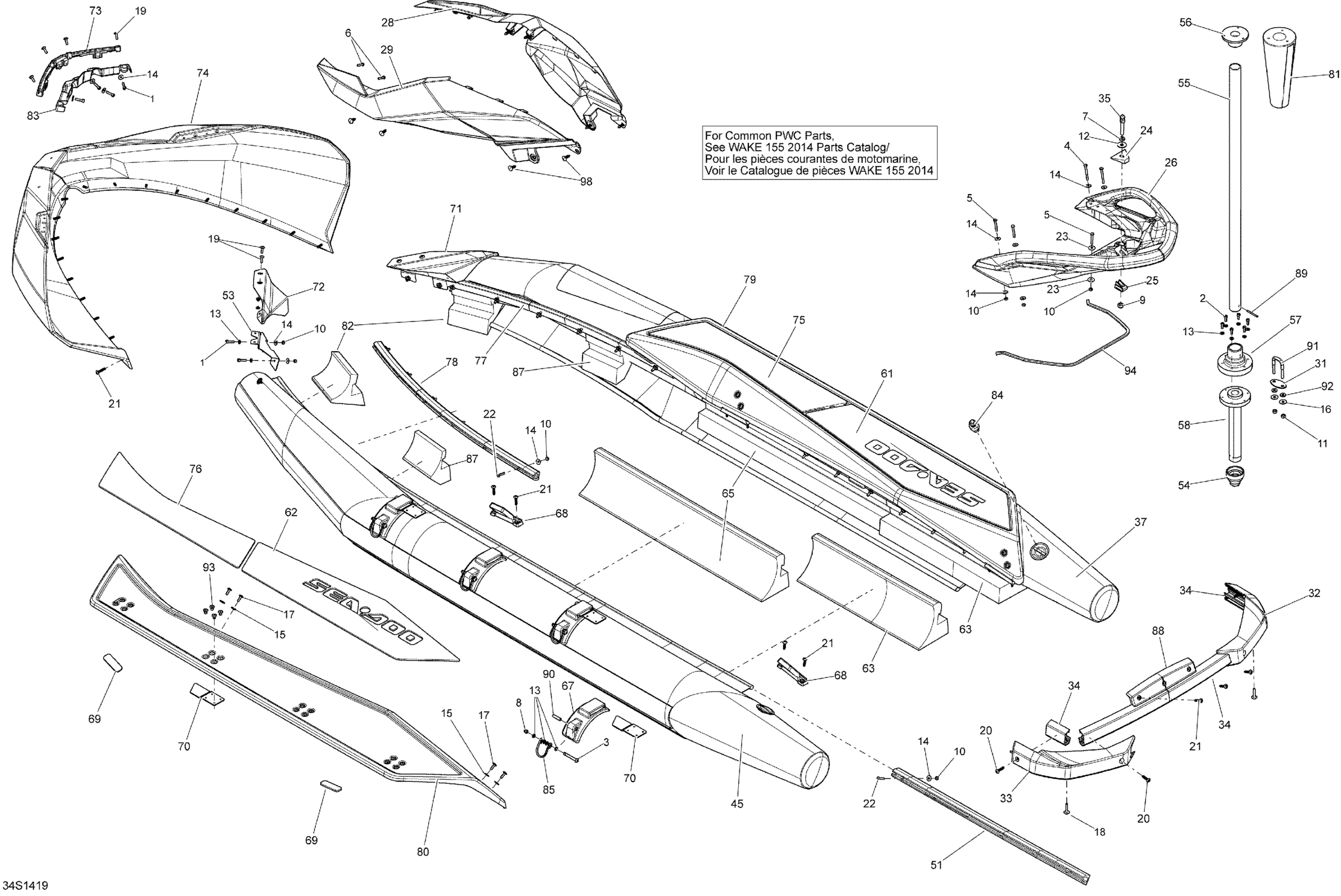

Sea-doo SAR 155, 2014 Body _34S1419 Diagram

#

Description
Price

1

Socket Head Screw M6 X 25

205062560

$1.69

1

Socket Head Screw M6 X 25

205062560

$1.69

2

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

2

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

3

Socket Head Screw

205566060

$6.45

3

Socket Head Screw

205566060

$6.45

4

Hex. Screw M6 x 55

207065560

$1.01

4

Hex. Screw M6 x 55

207065560

$1.01

5

Hex. Screw M6 X 40

207164060

$3.38

5

Hex. Screw M6 X 40

207164060

$3.38

6

Hex. Screw 10-14 X 7/8”

211000023

$3.59

6

Hex. Screw 10-14 X 7/8”

211000023

$3.59

7

Hex. Jam Nut M10

232100600

$2.22

8

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

9

Elastic Stop Nut M10, Brass

232501200

$2.64

10

Elastic Stop Nut M6, Brass

232561200

$4.23

11

Hex. Elastic Nut M8 Brass

232581200

$2.22

12

Flat Washer 10 mm, Stainless

234002600

$2.22

13

Stainless Flat Washer M6

234061600

$0.33

14

Flat Washer M6, Stainless

234062600

$0.77

15

Stainless Steel Flat Washer

234062670

$2.11

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Torx Truss Screw M6 X 20

250000350

$5.29

18

Hexagonal Cap Screw M6 X35

250000399

$4.44

19

Torx Truss Screw M6 X 20

250000488

$2.11

20

Screw Torx M6.81 X 30

250001007

$2.54

21

THREAD SCREW FILET 1/4-20 X 1 1/4 - Call your local BRP dealership

291004284

$2.19

22

TORX SCEW M6 X 30 - Call your local BRP dealership

250000744

Unavailable

23

Flat Washer M6.6 X 22

250200022

$2.72

24

Seat Stud Spacer

269002125

$8.19

25

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

26

Black, Rear Handle Ass'y

291004625

$142.99

28

White RH Cosmetic Panel This part replaces 269501812.

269502191

$149.99

29

WHITE LH COSMETIC PANEL - Call your local BRP dealership This part replaces 269501813.

269502192

Unavailable

31

Black, Finition Plate

291001386

$10.99

32

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

33

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

33

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

34

Lateral Bumper

291003872

$148.49

34

Lateral Bumper

291003872

$148.49

35

Stud Seat

291003877

$48.99

35

Stud Seat

291003877

$48.99

37

RH Float Inflatable Balloon

291003955

Unavailable

37

RH Float Inflatable Balloon

291003955

Unavailable

45

LH Float Inflatable Balloon

291003956

Unavailable

45

LH Float Inflatable Balloon

291003956

Unavailable

51

REAR BALLOON SLIDE RAIL - Call your local BRP dealership

291003962

Unavailable

51

REAR BALLOON SLIDE RAIL - Call your local BRP dealership

291003962

Unavailable

53

RH UPPER SUPPORT - Call your local BRP dealership

291003967

Unavailable

53

RH UPPER SUPPORT - Call your local BRP dealership

291003967

Unavailable

53

LH UPPER SUPPORT - Call your local BRP dealership

291003968

Unavailable

53

LH UPPER SUPPORT - Call your local BRP dealership

291003968

Unavailable

54

MAST ASS'Y - Call your local BRP dealership

291003970

Unavailable

54

ROD STOPPER BLOCK - Call your local BRP dealership

291003969

Unavailable

55

MAST ASS'Y - Call your local BRP dealership

291003970

Unavailable

56

MAST ASS'Y - Call your local BRP dealership

291003970

Unavailable

57

MAST ASS'Y - Call your local BRP dealership

291003970

Unavailable

58

LINK BAR SUPPORT ASSEMBLY - Call your local BRP dealership

291003974

Unavailable

58

ROD STOPPER BLOCK - Call your local BRP dealership

291003969

Unavailable

61

RH REAR FOOT PAD - Call your local BRP dealership

291003979

Unavailable

62

LH REAR FOOT PAD - Call your local BRP dealership

291003980

Unavailable

63

Rear Balloon Support

291003989

$98.99

65

Front Balloon Support

291004051

$124.99

67

Foot Anchor

291004054

Unavailable

68

FOOT SUPPORT - Call your local BRP dealership

291004055

Unavailable

69

Rubber Stopper

291004057

Unavailable

70

FLOORBOARD MOUNTING PLATE - Call your local BRP dealership

291004058

Unavailable

71

RH COVER SUPPORT - Call your local BRP dealership

291004087

$76.99

72

LH COVER SUPPORT - Call your local BRP dealership

291004088

Unavailable

73

BUMPER SUPPORT MA - Call your local BRP dealership

291004111

Unavailable

74

BUMPER WITH PROTECTIVE COATING - Call your local BRP dealership

291004162

Unavailable

75

RH FRONT FOOT PAD - Call your local BRP dealership

291004113

Unavailable

76

LH FRONT FOOT PAD - Call your local BRP dealership

291004114

Unavailable

77

REAR BALLOON SLIDE RAIL - Call your local BRP dealership This part replaces 291004115.

291004294

Unavailable

78

REAR BALLOON SLIDE RAIL - Call your local BRP dealership This part replaces 291004115.

291004294

Unavailable

79

RH FLOORBOARD - Call your local BRP dealership

291004118

Unavailable

80

LH FLOORBOARD - Call your local BRP dealership

291004119

Unavailable

81

PAD FOAM - Call your local BRP dealership

291004128

Unavailable

82

Front Balloon Support (Small)

291004151

Unavailable

83

BUMPER SUPPORT MA - Call your local BRP dealership

291004160

Unavailable

84

Air Pump Adaptor

291004166

Unavailable

85

SHACKLE - Call your local BRP dealership

291004167

Unavailable

87

MID BALLOON SUPPORT (SMALL) - Call your local BRP dealership

291004187

Unavailable

88

Appui Civière

291004213

Unavailable

89

SPRING PIN M4 X 50 - Call your local BRP dealership

291004214

Unavailable

90

SHACKLE SPACER BUSHING - Call your local BRP dealership

291004219

Unavailable

91

U-Clamp

292000933

$59.49

92

Flat Washer M8.5 x 18

293050001

$3.07

93

Pop Rivet 3/16

293150186

$2.09

94

Gasket 3000Mm Long

219704378

$26.49

98

Black, Dart

293730006

$0.99
