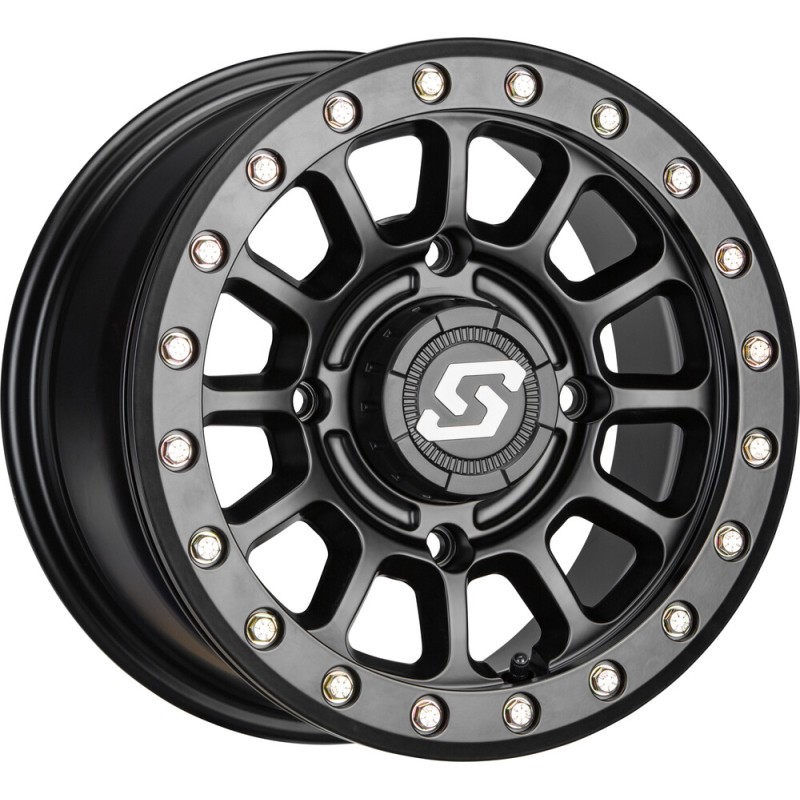

SEDONA Sano Beadlock Wheel
Color
Item: 570-2025
Weight: 19.6 lbs
Package Dimensions: 16.9 x 16.8 x 8
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/156
Finish: Raw
Industry Offset: 5+1
Wheel Size: 15 in. x 6 in.
True Offset: +40 mm
Wheel Line: Sano Beadlock
Item: 570-2022
Weight: 17.94 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/137
Industry Offset: 5+1
Wheel Size: 15 in. x 6 in.
Finish: Satin
True Offset: +40 mm
Wheel Line: Sano Beadlock
Item: 570-2023
Weight: 17.94 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/156
Industry Offset: 5+1
Wheel Size: 15 in. x 6 in.
Finish: Satin
True Offset: +40 mm
Wheel Line: Sano Beadlock
Item: 570-2024
Weight: 17.94 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/137
Finish: Raw
Industry Offset: 5+1
Wheel Size: 15 in. x 6 in.
True Offset: +40 mm
Wheel Line: Sano Beadlock
Item: 570-2014
Weight: 17.02 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 14 in. x 7 in.
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/137
Industry Offset: 5+2
Finish: Raw
True Offset: +10 mm
Wheel Line: Sano Beadlock
Item: 570-2018
Weight: 16.78 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 14 in. x 7 in.
Industry Offset: 6+1
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/156
Finish: Satin
True Offset: +38 mm
Wheel Line: Sano Beadlock
Item: 570-2020
Weight: 16.78 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 14 in. x 7 in.
Industry Offset: 6+1
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/137
Finish: Raw
True Offset: +38 mm
Wheel Line: Sano Beadlock
Item: 570-2021
Weight: 16.78 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 14 in. x 7 in.
Industry Offset: 6+1
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/156
Finish: Raw
True Offset: +38 mm
Wheel Line: Sano Beadlock
Item: 570-2026
Weight: 20.4 lbs
Package Dimensions: 17 x 16.9 x 9.1
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 15 in. x 7 in.
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/137
Industry Offset: 5+2
Finish: Satin
True Offset: +10 mm
Wheel Line: Sano Beadlock
Item: 570-2027
Weight: 20.05 lbs
Package Dimensions: 16.9 x 16.9 x 9.1
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 15 in. x 7 in.
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/156
Industry Offset: 5+2
Finish: Satin
True Offset: +10 mm
Wheel Line: Sano Beadlock
Item: 570-2015
Weight: 17.02 lbs
- Heavy-duty 12 spoke mesh style design
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black and As Cast/Machined finishes
- Includes a satin black snap-in cap with embossed Sedona S logo
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Wheel Size: 14 in. x 7 in.
Beadlock: Beadlock
Wheel Brand: Sedona
Pattern: 4/156
Industry Offset: 5+2
Finish: Raw
True Offset: +10 mm
Wheel Line: Sano Beadlock
