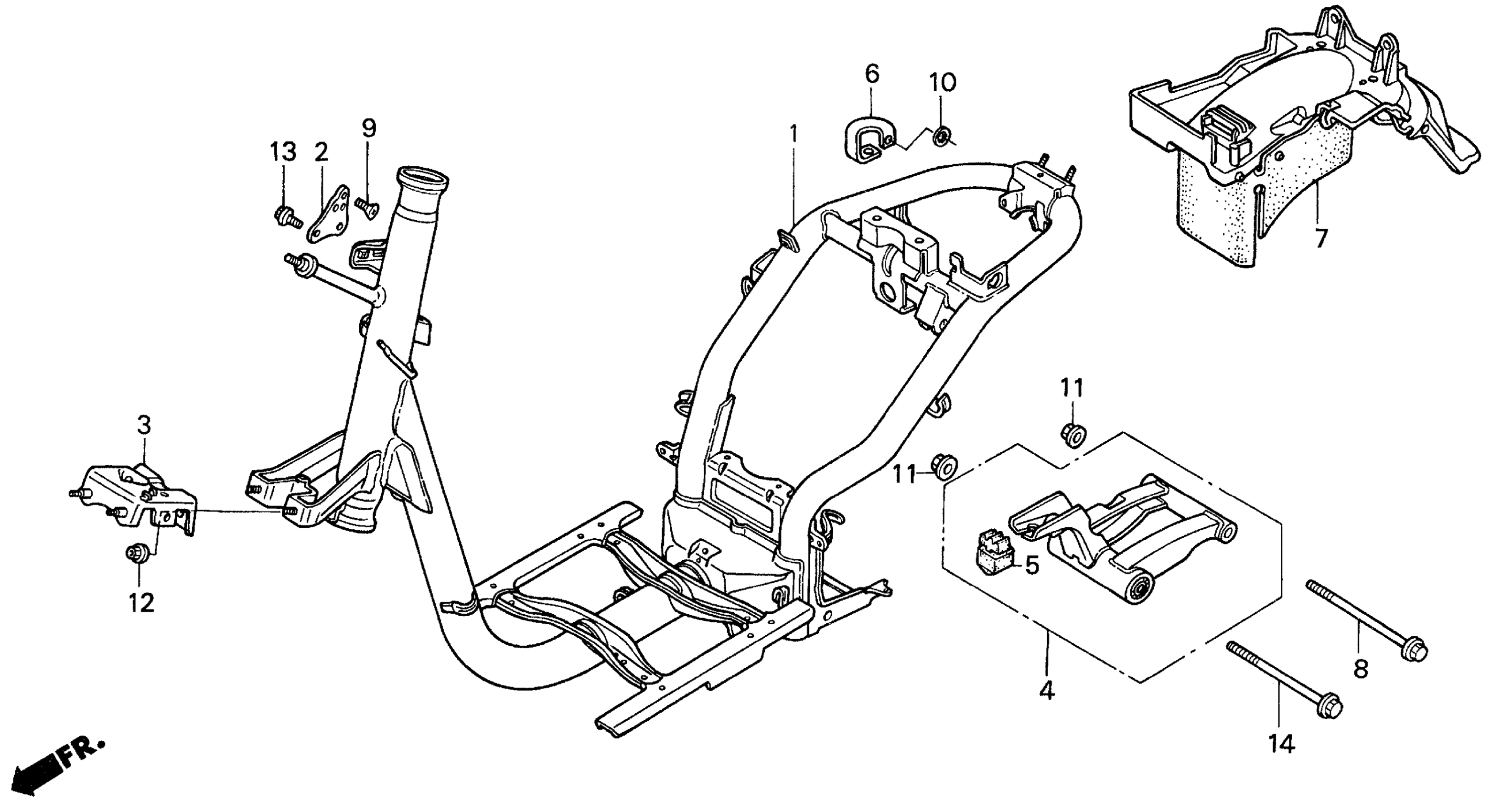

Honda SA50PA (98) ELITE 50 S, MEX, VIN# 3H1AF161-WD400001 FRAME Diagram

FRAME

50100-GS7-980

$485.28

PLATE, HANDLE LOCK

50123-GN2-010

Unavailable

STAY, FR. COVER SETTING

50135-GS7-000

Unavailable

LINK ASSY., ENGINE HANGER

50350-GS7-950

Unavailable

RUBBER, LINK STOPPER

50352-GS7-000

Unavailable

BAND, TUBE

80106-GS7-950

Unavailable

FENDER ASSY., RR.

80110-GS7-950

Unavailable

BOLT, ENGINE HANGER

90103-147-000

$12.74

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

NUT, CLIP

90301-GE0-000

$2.13

NUT, U (10MM)

90304-GE8-003

$3.67

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (10X140)

95801-10140-00

Unavailable
