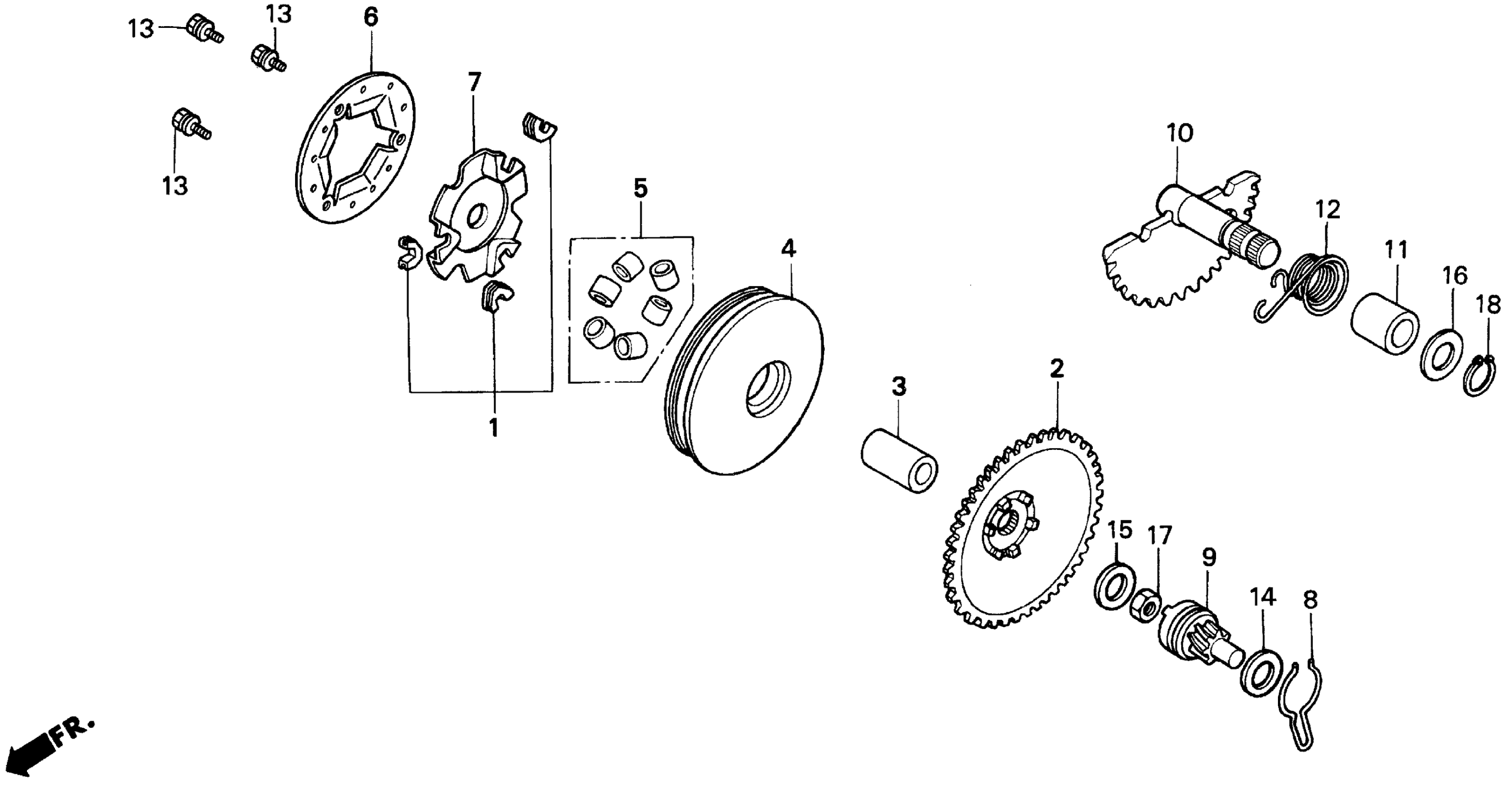

Honda SA50PA (98) ELITE 50 S, MEX, VIN# 3H1AF161-WD400001 DRIVE FACE Diagram

PIECE SET, SLIDE

22011-GW0-000

$9.39

FACE, DRIVE (62T)

22102-GAH-720

$32.80

BOSS, DRIVE FACE

22105-GAH-720

Unavailable

FACE, MOVABLE DRIVE

22110-GS7-980

Unavailable

ROLLER SET, WEIGHT

22123-GG2-750

Unavailable

SEAL, MOVABLE DRIVE FACE

22126-GAH-600

Unavailable

PLATE, RAMP

22131-GAH-720

Unavailable

SPRING, KICK DRIVEN GEAR

28223-GAH-720

$6.22

GEAR, STARTER IDLE

28230-GBL-870

Unavailable

SPINDLE, KICK STARTER (42T)

28250-GN2-601

Unavailable

BUSH, KICK SPINDLE

28253-GBL-003

$9.16

SPRING, KICK RETURN (CHUO HATSUJO)

28281-GN2-602

Unavailable

BOLT-WASHER (4X10)

90005-GAH-600

$1.48

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$0.41

WASHER, SPECIAL (12MM)

90426-KBN-900

$4.40

WASHER (14MM)

90451-GBL-870

$2.80

NUT, HEX. (12MM)

94001-12200-0S

$0.88

CIRCLIP (OUTER) (14MM)

94511-14000

$0.78
