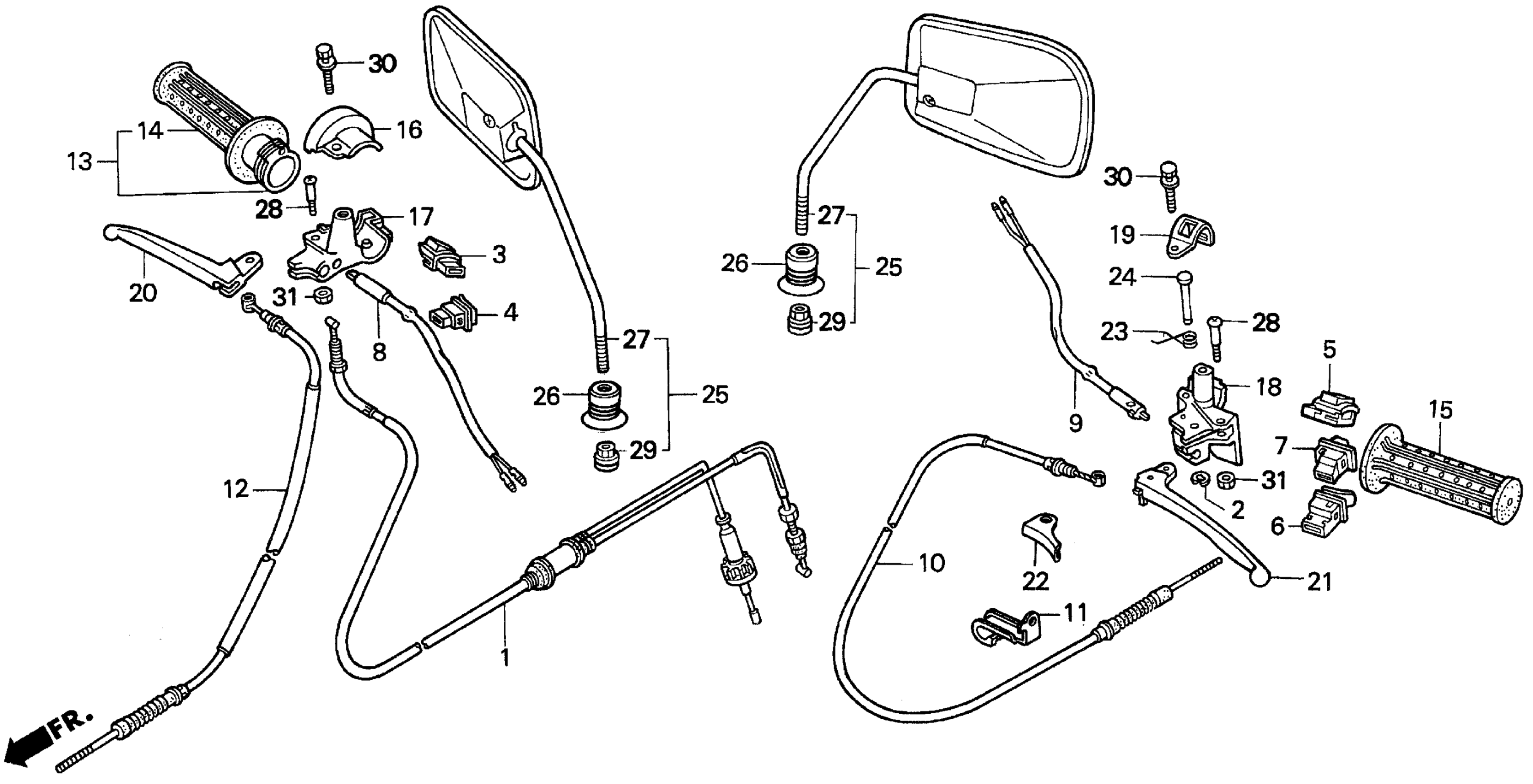

Honda SA50PA (95) ELITE 50 S, MEX, VIN# 3H1AF161-SD100001 HANDLE SWITCH + CABLES Diagram

CABLE SET, THROTTLE

17920-GS7-306

Unavailable

E-CLIP (3MM)

30158-700-010

$2.92

SWITCH UNIT, STOP

35130-GS7-671

Unavailable

SWITCH UNIT, STARTER This part replaces 35160-GS7-670.

35160-GS7-671

Unavailable

SWITCH UNIT, STARTER

35160-GS7-671

Unavailable

SW UNIT,DIMMER . This part replaces 35170-GS7-670.

35170-GBM-701

Unavailable

SWITCH UNIT, HORN

35180-GS7-671

$23.31

SWITCH UNIT, TURN SIGNAL

35200-GS7-670

$23.44

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-003.

35340-GBJ-000

$21.26

SWITCH ASSY., FR. STOP

35340-GS7-003

Unavailable

CABLE, RR. BRAKE

43450-GS7-670

Unavailable

CLAMP, BRAKE CABLE

43452-GW0-000

$3.77

CABLE, FR. BRAKE

45450-GS7-950

Unavailable

GRIP, THROTTLE

53140-GS7-000

Unavailable

GRIP, R. HANDLE

53165-GA7-000

$6.48

GRIP, L. HANDLE

53166-GA7-000

$6.48

HOUSING, THROTTLE This part replaces 53167-GS7-003.

53167-GS7-013

Unavailable

HOUSING, THROTTLE (LOWER) This part replaces 53168-GS7-003.

53168-GS7-013

Unavailable

HOUSING, THROTTLE (LOWER)

53168-GS7-013

Unavailable

BRACKET, HANDLE

53172-GW0-010

Unavailable

BAND, HANDLE BRACKET | Use from Frame SN *9

53173-GBL-770

Unavailable

BAND, HANDLE BRACKET | Use up to Frame SN *8

53173-GS7-003

$5.09

LEVER, R. HANDLEBAR

53175-GN2-930

$16.40

LEVER, L. HANDLEBAR This part replaces 53178-GN2-930.

53178-GS7-670

Unavailable

LEVER, PARKING

53181-GN2-930

Unavailable

SPRING, LEVER RETURN

53182-155-010

$3.74

PIN, PARKING LEVER PIVOT

53183-155-000

$8.92

MIRROR ASSY.

88110-GZ5-000

Unavailable

CAP, LOCK NUT

88113-GAH-000

$5.70

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

NUT, LOCK

90134-GM8-000

$2.33

NUT, LOCK This part replaces 90134-GZ5-000.

90134-GM8-000

$2.33

BOLT-WASHER (6X20)

93401-06020-07

$1.62

NUT, HEX. (5MM)

94001-05000-0S

$2.74
