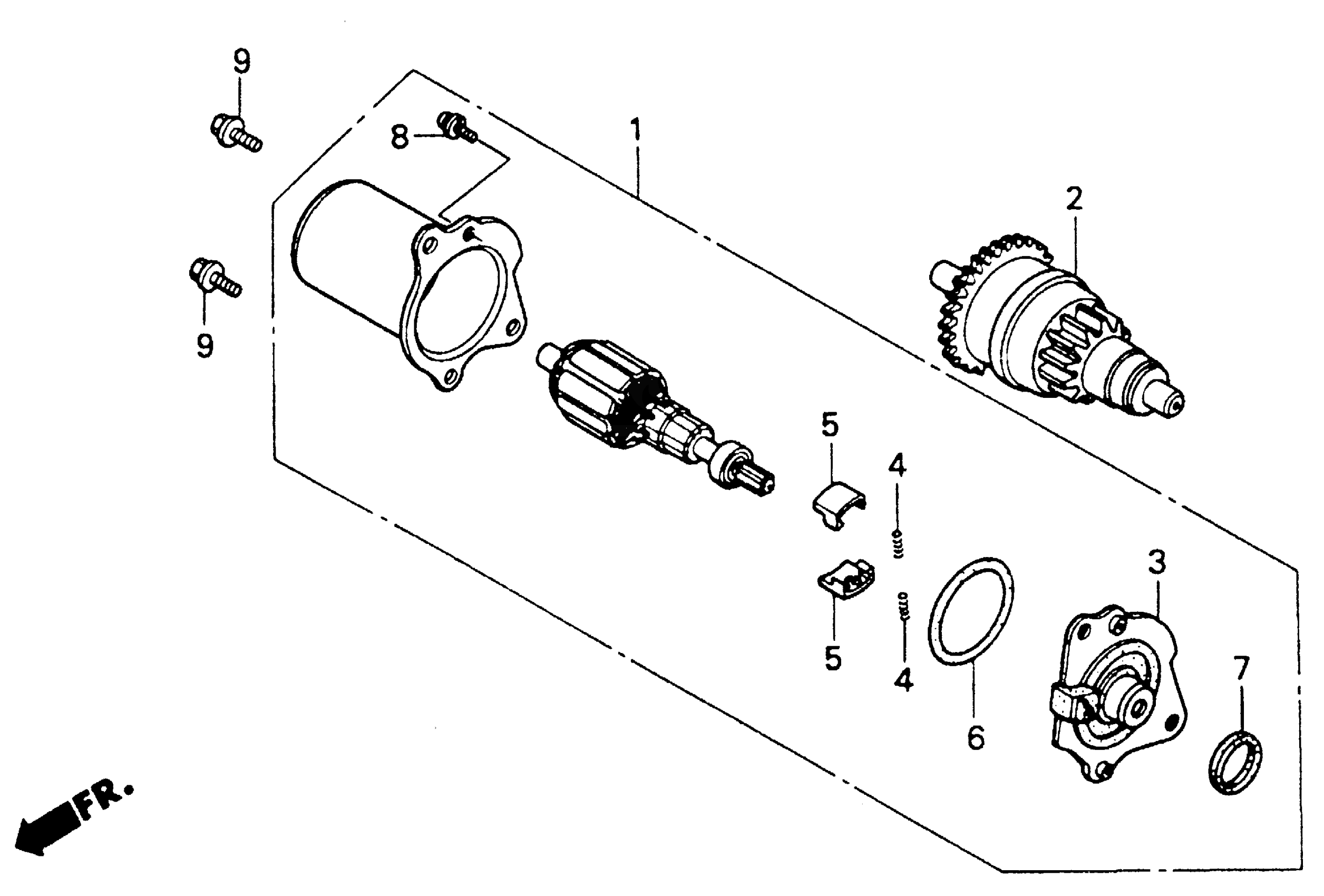

Honda SA50PA (94) ELITE 50 S, MEX, VIN# 3H1AF160-RD000001 STARTER MOTOR 94 Diagram

MOTOR ASSY., STARTER This part replaces 31200-GBL-000.

31200-GBL-770

Unavailable

MOTOR ASSY., STARTER

31200-GBL-770

Unavailable

MOTOR ASSY., STARTER | Use up to Engine SN 2009524 This part replaces 31200-GW0-010.

31200-GBL-770

Unavailable

PINION ASSY., STARTER (14T/63T)

31209-GR1-014

$111.90

BRACKET, FR.

31213-GW0-000

Unavailable

SPRING, BRUSH

31214-GS6-701

Unavailable

HOLDER, BRUSH

31215-GS6-701

$4.97

GASKET

31217-GS6-701

Unavailable

GASKET, STARTER MOTOR

91309-GS6-700

Unavailable

SCREW-WASHER (4X6) | Use from Engine SN 2009525

93892-04006-08

$1.49

SCREW-WASHER (4X8) | Use up to Engine SN 2009524

93892-04008-08

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
