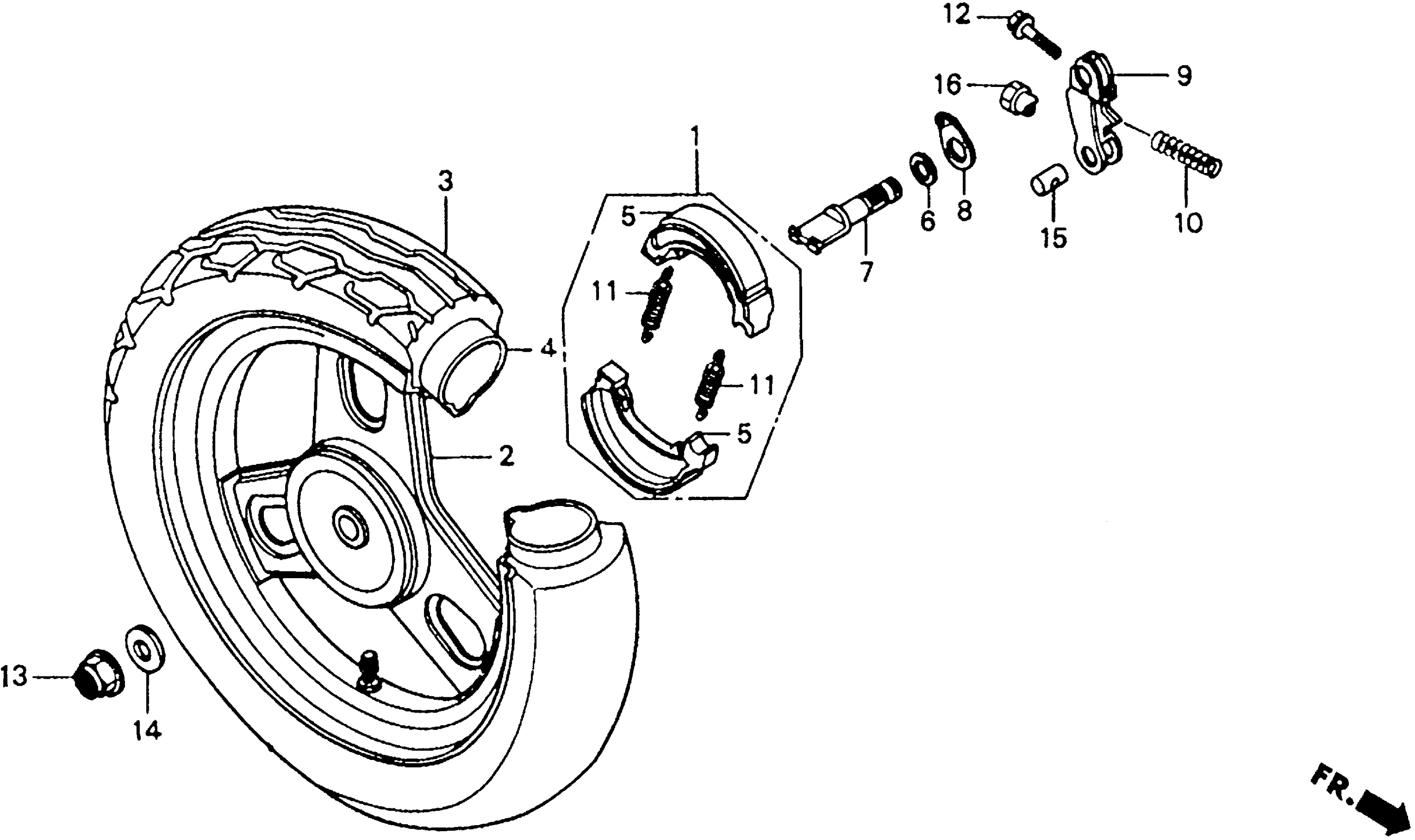

Honda SA50PA (94) ELITE 50 S, MEX, VIN# 3H1AF160-RD000001 REAR WHEEL Diagram

SHOE SET, BRAKE (ASK)

06430-GY1-922

$18.48

WHEEL, RR. *NH138* (SHASTA WHITE)

42650-GS7-980ZA

Unavailable

TIRE (3.00-10) (4PR 42J MB35L) (INOUE)

42711-GS7-673

$73.24

TUBE, TIRE (3.00-10) (INOUE)

42712-GN2-623

Unavailable

TUBE, TIRE (3.00-10) (INOUE) This part replaces 42712-GW0-006.

42712-GN2-623

Unavailable

SEAL, BRAKE CAM

43134-196-000

$2.56

CAM, RR. BRAKE

43141-GR0-010

Unavailable

INDICATOR, RR. BRAKE

43145-GN2-000

$4.28

ARM, RR. BRAKE

43410-GK1-010

Unavailable

SPRING, RR. BRAKE ARM

43472-161-000

$4.13

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

NUT, AXLE (14MM)

90305-197-013

$6.14

WASHER (26X14X2.8)

90501-GAH-000

$6.63

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
