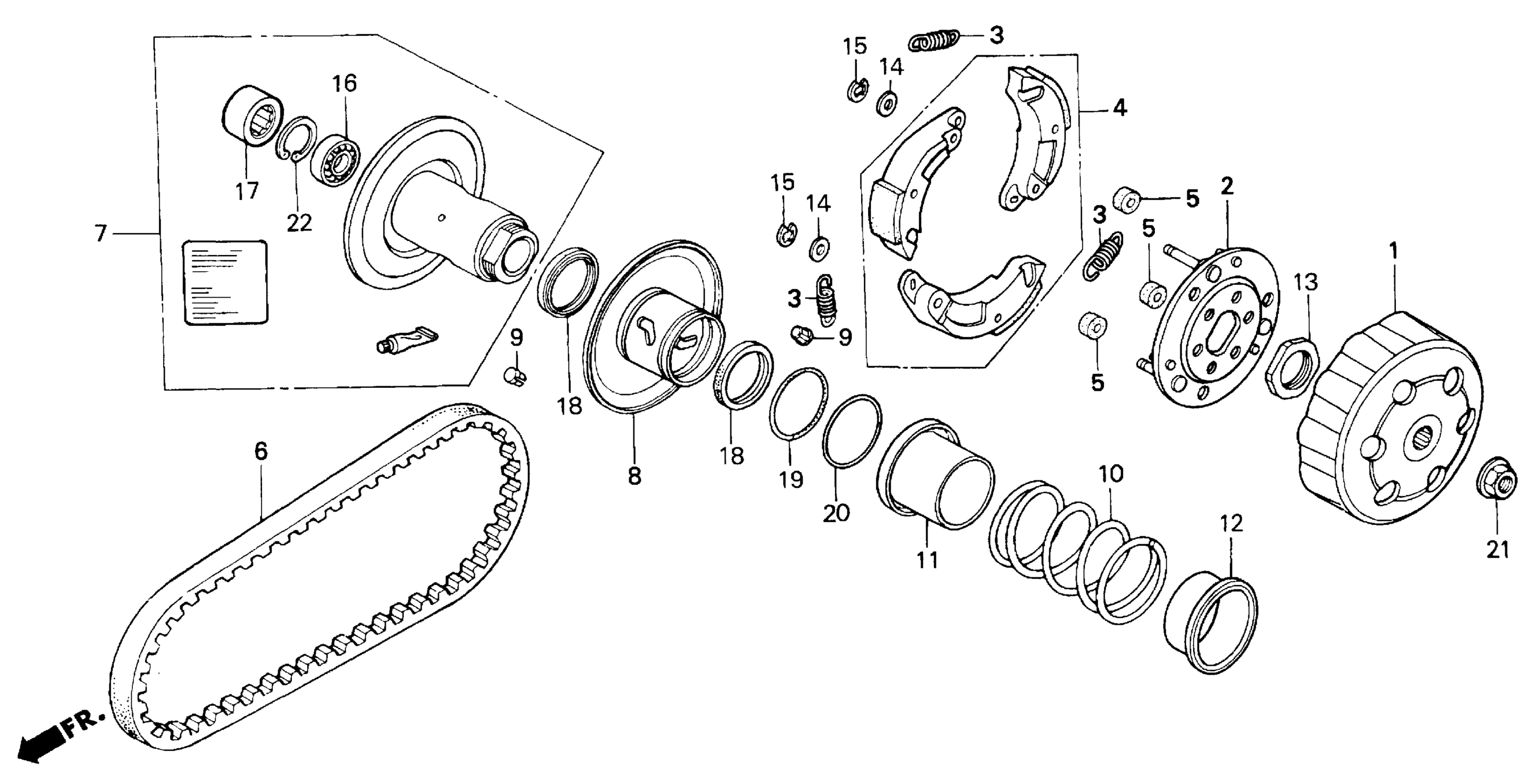

Honda SA50PA (01) ELITE S, MEX, VIN# 3H1AF161-1D700001 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-GW2-710

$88.88

2

PLATE, DRIVE

22350-GAH-A00

$31.75

3

SPRING, CLUTCH

22401-GAJ-920

Unavailable

4

WEIGHT SET, CLUTCH

22535-GAK-305

$65.55

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.80

6

BELT, DRIVE

23100-GG2-751

$46.71

7

FACE SET, DRIVEN This part replaces 23205-GR1-325.

23205-GBL-305

Unavailable

8

FACE, MOVABLE DRIVEN This part replaces 23220-GBL-710.

23220-GCW-000

Unavailable

8

FACE, MOVABLE DRIVEN This part replaces 23220-GR1-000.

23220-GCW-000

Unavailable

9

PIN, GUIDE

23225-GN2-010

$4.09

10

SPRING, DRIVEN FACE

23233-GM0-000

$22.22

11

COLLAR, SEAL

23237-GN2-000

$14.42

12

COLLAR, SPRING

23238-GS7-010

$14.52

13

NUT, SPECIAL (28MM)

90202-187-000

$6.82

14

WASHER, THRUST (6MM)

90442-044-000

$1.96

15

CIRCLIP (6MM)

90454-GB2-000

$1.58

16

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$22.30

17

BEARING, NEEDLE (17X25X18)

91103-GR1-003

Unavailable

18

OIL SEAL (34X39X3)

91211-GK8-013

$4.74

19

O-RING (38.5X2)

91351-GR1-000

$2.71

20

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$3.92

21

NUT, FLANGE (10MM)

94050-10000

$1.41

22

CIRCLIP (INNER) (24MM)

94520-24000

$1.10
