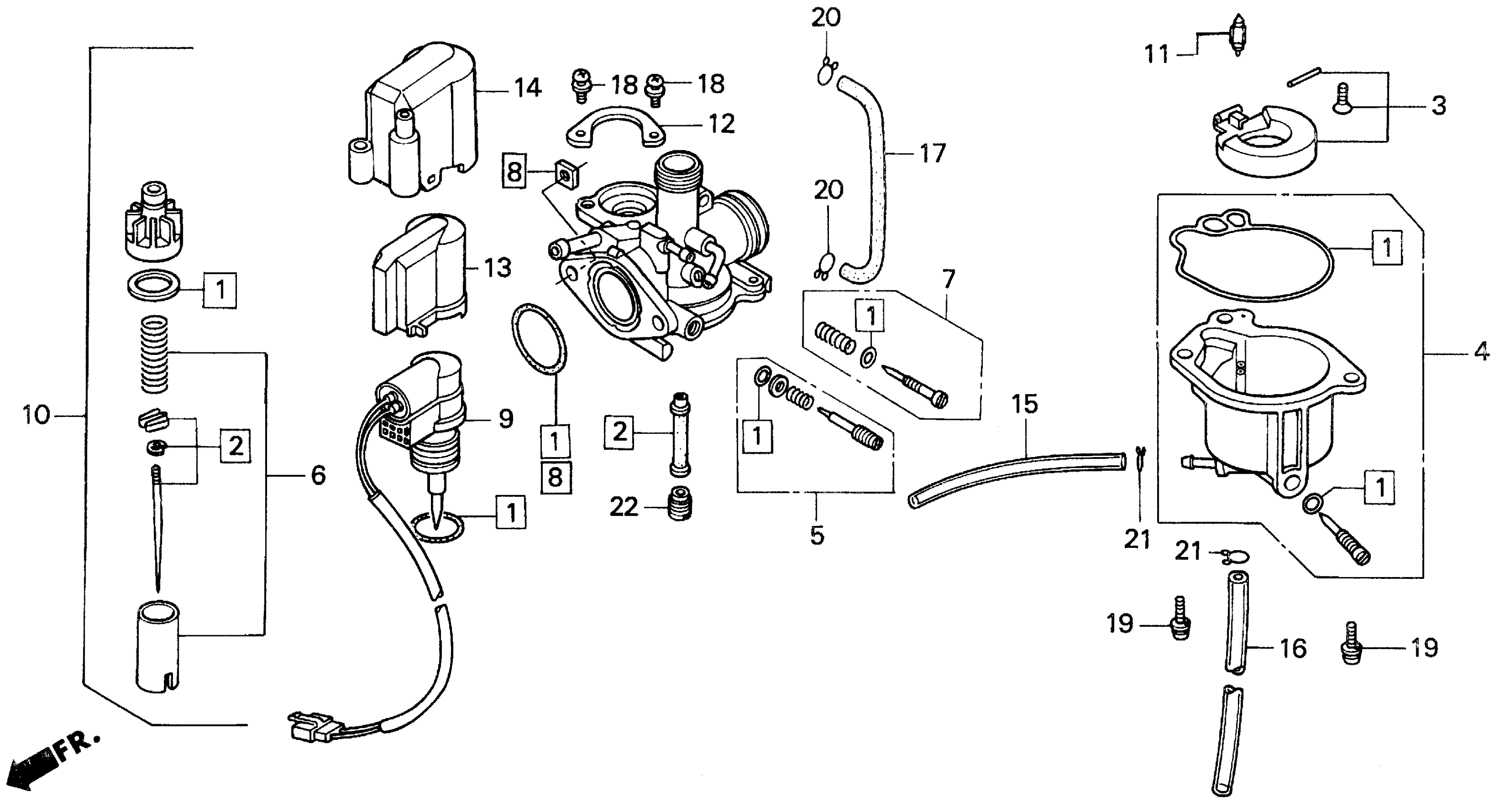

Honda SA50A (98) ELITE 50 SR, MEX, VIN# 3H1AF160-WD900001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GZ5-000

$13.86

2

NEEDLE SET, JET

16012-GS7-970

Unavailable

3

FLOAT SET

16013-147-004

$44.62

4

CHAMBER SET, FLOAT

16015-GZ5-000

Unavailable

5

SCREW SET

16016-GG2-701

Unavailable

6

VALVE SET, THROTTLE This part replaces 16022-GZ5-000.

16022-GZ5-010

Unavailable

6

VALVE SET, THROTTLE

16022-GZ5-010

Unavailable

7

SCREW SET

16028-GW3-003

Unavailable

8

NUT SET, SQUARE This part replaces 16041-GAM-000.

16041-GBJ-680

$5.11

9

VALVE ASSY., STARTER ENRICHMENT THERMAL

16046-GS7-950

Unavailable

10

CARBURETOR ASSY. (PA35J A)

16100-GS7-970

Unavailable

11

VALVE, FLOAT

16155-GZ5-000

$33.82

12

PLATE, SET

16186-GJ2-004

Unavailable

13

CAP, HOLDER This part replaces 16190-GJ2-004.

16190-GR1-003

Unavailable

14

CAP (OUTER)

16191-GR1-711

Unavailable

15

TUBE, DRAIN

16197-GZ5-000

Unavailable

16

TUBE VINYL This part replaces 16198-GZ5-000.

16198-GW0-505

Unavailable

17

TUBE, AIR VENT

16199-GZ5-000

Unavailable

18

SCREW-WASHER (4X8)

93892-04008-08

$1.49

18

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

19

SCREW-WASHER (4X12)

93892-04012-08

$1.49

19

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

20

CLIP, TUBE (B7)

95002-02079

$1.49

21

CLIP, TUBE (B6.5)

95002-02659

$1.49

22

JET, MAIN (#78)

99101-187-0780

Unavailable
