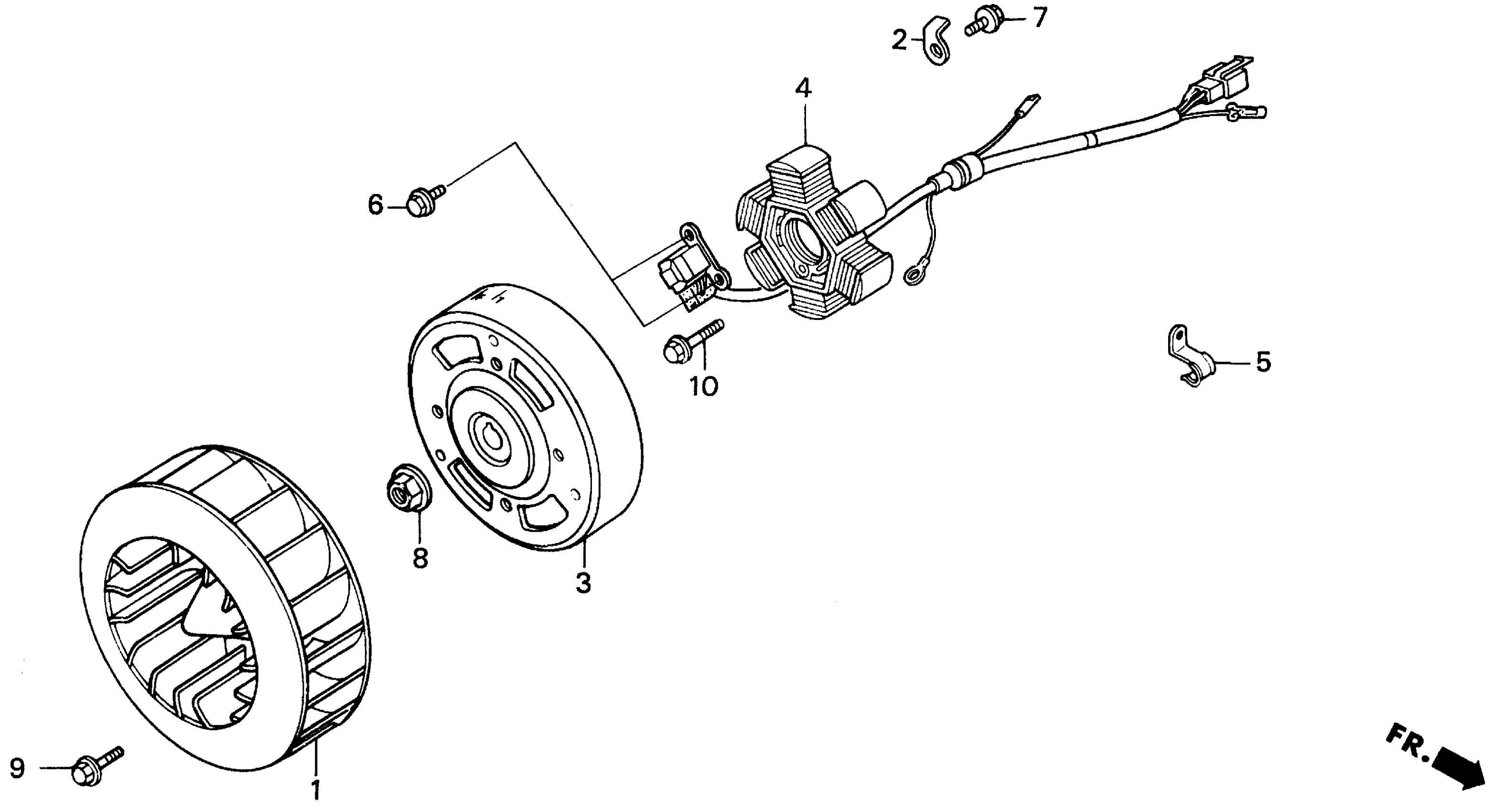

Honda SA50A (98) ELITE 50 SR, MEX, VIN# 3H1AF160-WD900001 ALTERNATOR Diagram

#

Description
Price

1

FAN, COOLING

19510-GZ0-000

Unavailable

2

CLAMP, ALTERNATOR WIRE

30907-GZ5-010

Unavailable

3

FLYWHEEL (MITSUBA)

31110-GZ5-008

Unavailable

4

STATOR (C.D.I.)

31120-GS7-951

Unavailable

5

CLAMP, SWITCH WIRE

35210-MA6-000

$3.09

6

BOLT, FLANGE (6X12)

90001-GBL-003

Unavailable

7

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.41

8

NUT, FLANGE (10MM)

94050-10000

$1.41

9

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

10

BOLT, FLANGE (6X18)

96001-06018-07

$1.14
