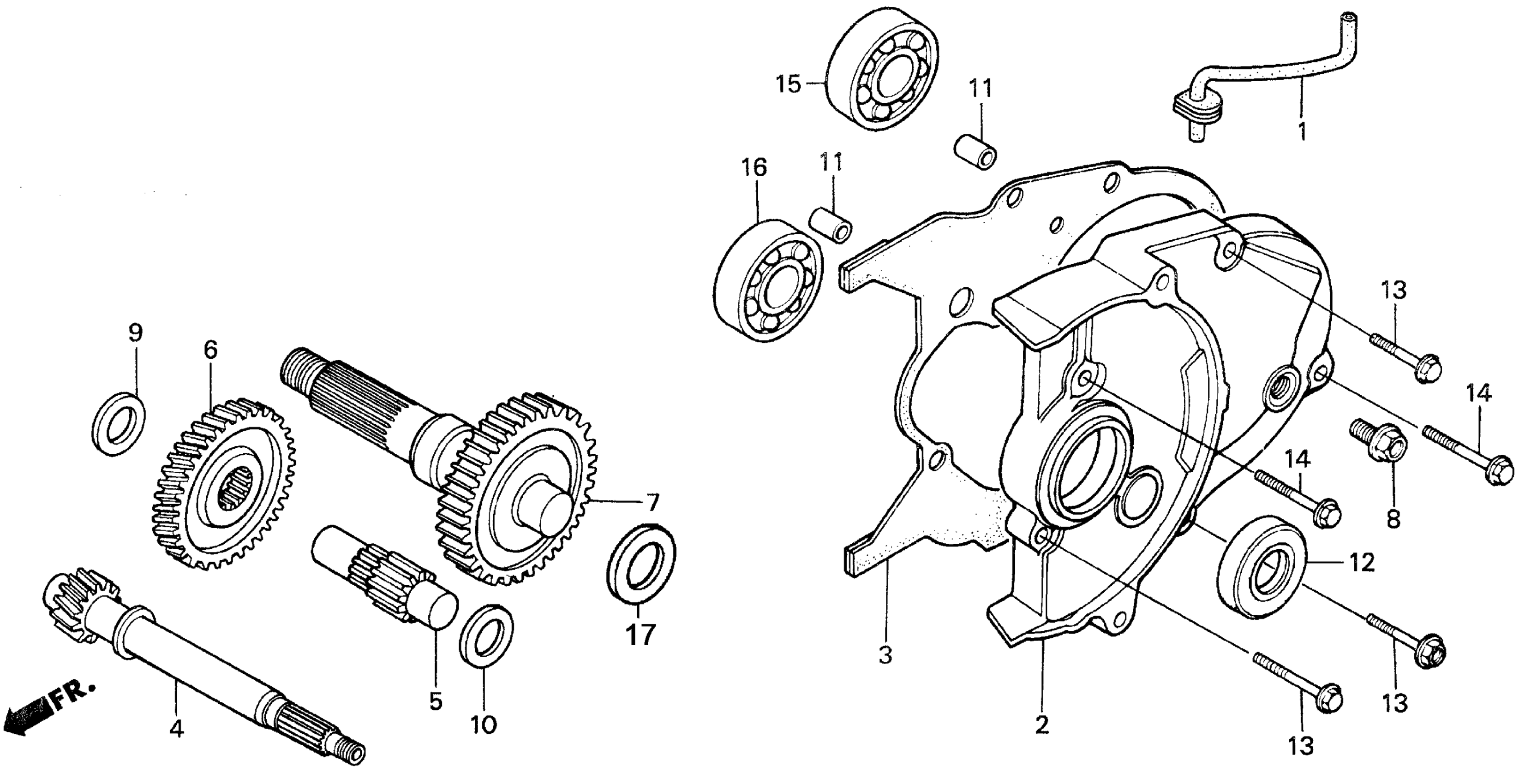

Honda SA50A (95) ELITE 50 SR, MEX, VIN# 3H1AF160-SD600001 TRANSMISSION Diagram

TUBE, BREATHER

11211-GW0-000

Unavailable

COVER, TRANSMISSION This part replaces 21301-GN2-020.

21301-GN2-030

Unavailable

GASKET, TRANSMISSION COVER

21395-GAH-000

Unavailable

DRIVESHAFT (12T)

23411-GW0-010

Unavailable

COUNTERSHAFT (13T)

23421-GW0-000

Unavailable

GEAR, COUNTERSHAFT (42T)

23422-GW0-000

Unavailable

GEAR, FINAL (45T)

23430-GAH-A00

Unavailable

GEAR, FINAL (45T) This part replaces 23430-GR1-880.

23430-GAH-A00

Unavailable

BOLT, CHECK (8MM)

90035-GF4-000

$6.67

WASHER, SIDE (14MM)

90429-GN2-003

Unavailable

WASHER, THRUST (14MM)

90454-350-000

$3.49

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.25

PIN A, DOWEL (10X14)

94301-10140

$2.25

OIL SEAL (17X30X5) (NIPPON)

91204-GN2-005

$5.54

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

BEARING, RADIAL BALL (6202)

96100-62023-00

Unavailable

BEARING, RADIAL BALL (6203)

96100-62033-00

$8.98
