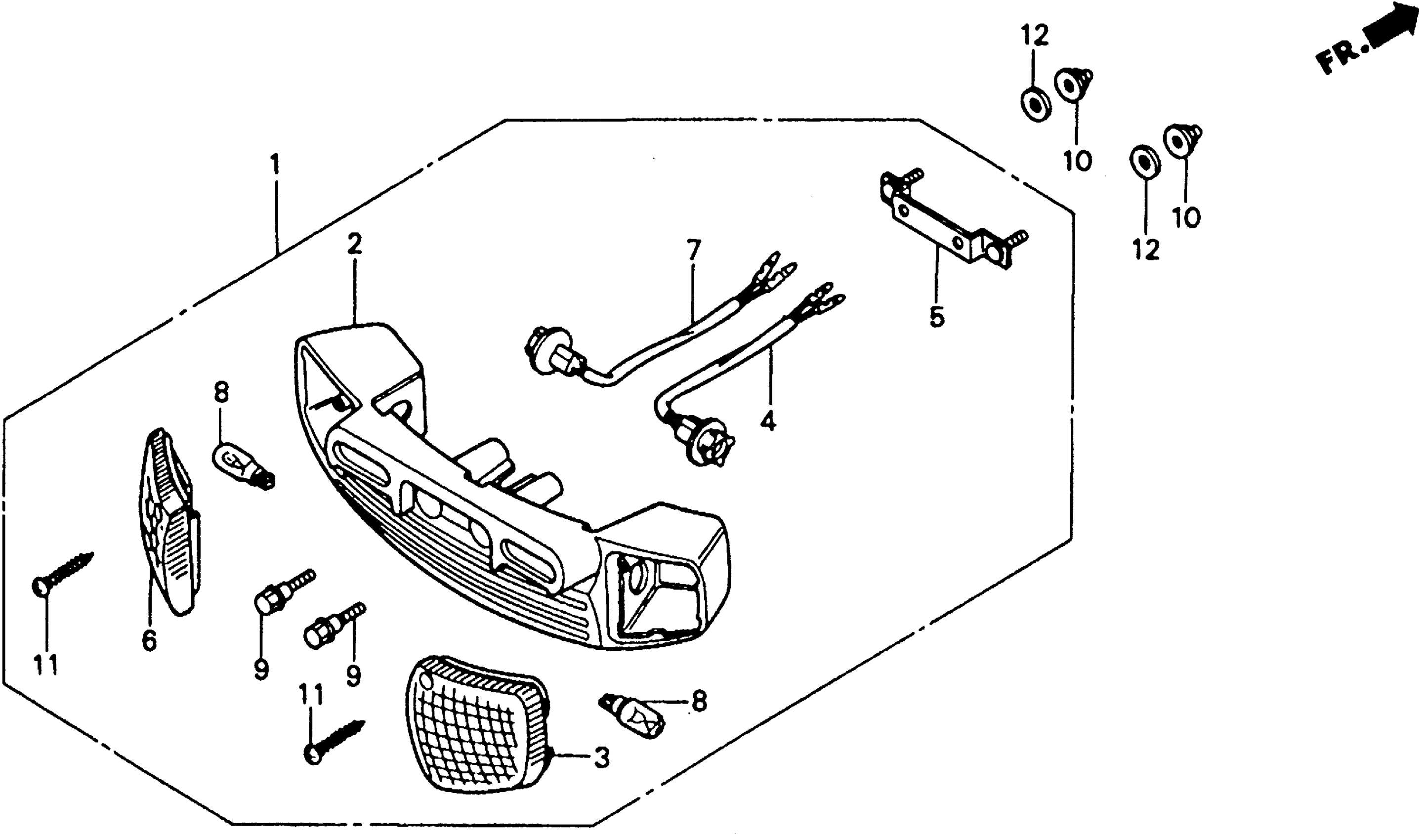

Honda SA50A (94) ELITE 50 SR, MEX, VIN# 3H1AF160-RD500001 REAR TURN SIGNAL Diagram

#

Description
Price

1

LIGHT ASSY., RR. TURN SIGNAL *NH1* (BLACK)

33600-GS7-671ZC

Unavailable

2

BASE, RR. TURN SIGNAL *NH1* (BLACK)

33604-GS7-671ZC

Unavailable

3

LENS, R. RR. TURN SIGNAL

33605-GS7-671

Unavailable

4

SOCKET, R. RR. TURN SIGNAL

33606-GS7-670

Unavailable

5

BRACKET, RR. TURN SIGNAL

33607-GS7-671

Unavailable

6

LENS, L. RR. TURN SIGNAL

33655-GS7-671

Unavailable

7

SOCKET, L. RR. TURN SIGNAL

33656-GS7-670

Unavailable

8

BULB (12V 16W) This part replaces 34901-SB3-671.

34901-TK8-A01

$4.47

9

BOLT, FLANGE (6X20)

90113-449-000

$2.96

10

NUT, CAP (6MM)

90201-415-000

$1.96

11

SCREW, TAPPING (4X30)

93901-34710

$0.42

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM)

94101-06800

Unavailable
