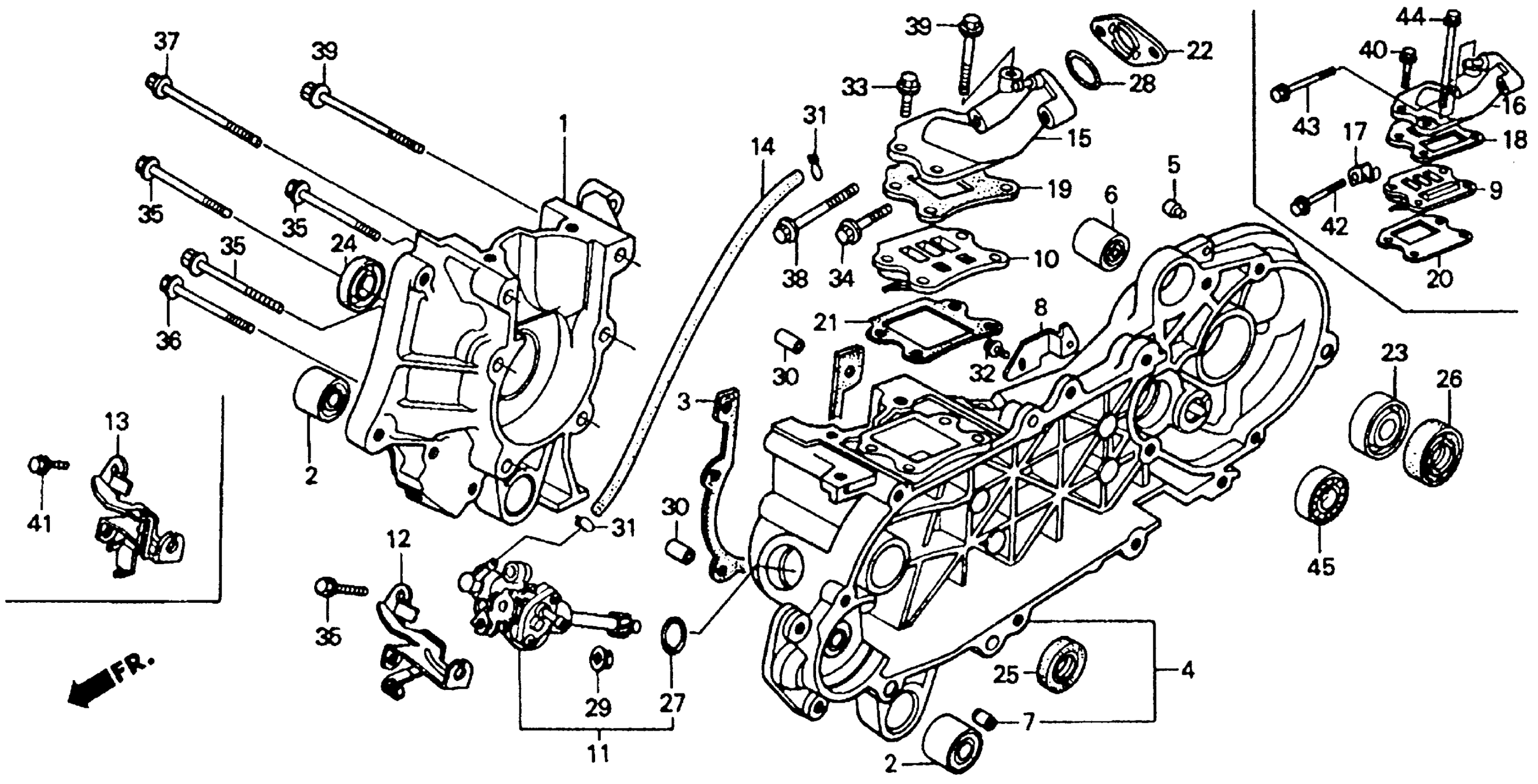

Honda SA50A (94) ELITE 50 SR, MEX, VIN# 3H1AF160-RD500001 CRANKCASE Diagram

CRANKCASE, R.

11101-GZ5-010

Unavailable

BUSH, ENGINE HANGER RUBBER

11102-GW0-003

$11.18

CRANKCASE, L. This part replaces 11200-GZ5-000.

11200-GZ5-010

Unavailable

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$9.55

BUSH (8X12X8)

11205-GAH-003

$8.90

STAY, AIR CLEANER HOUSING

11206-GS7-000

Unavailable

VALVE, PULSE SECONDARY AIR INJECTION CHECK

14100-GAH-000

Unavailable

PUMP ASSY., OIL

15100-GZ5-015

Unavailable

PLATE, SETTING

15110-GW0-010

Unavailable

TUBE, OIL PASSAGE

15525-GZ5-000

Unavailable

PIPE, INLET

17100-GZ5-010

Unavailable

STAY, TUBE

17104-GZ5-000

Unavailable

GASKET A, IN. PIPE

17111-GAH-A00

$5.68

GASKET A, IN. PIPE This part replaces 17111-GAH-000.

17111-GAH-A00

$5.68

GASKET B, IN. PIPE This part replaces 17112-GAH-000.

17112-GAH-A00

$5.28

INSULATOR, CARBURETOR

16211-GAM-000

Unavailable

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GS7-900.

42630-GK4-003

$14.98

OIL SEAL (15.6X23.5X7)

91201-GK8-003

$6.35

OIL SEAL (19.4X31X7)

91202-GAH-721

$6.01

OIL SEAL (24X40X7)

91254-GE8-005

$8.30

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.00

O-RING (20.6X1.9)

91304-GB0-910

$3.52

NUT, SPECIAL (6MM)

90201-GR2-000

Unavailable

PIN, DOWEL (8X20)

94301-08200

$2.04

CLIP, TUBE (B6.5)

95002-02650

$1.35

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

BOLT, FLANGE (6X60)

96001-06060-00

$1.97

BOLT, FLANGE (6X75)

96001-06075-00

$2.03

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

BOLT, FLANGE (6X55)

96001-06055-00

$1.48

BOLT, FLANGE (6X80)

96001-06080-00

$2.01

BEARING, RADIAL BALL (6201)

96100-62013-00

$8.39
