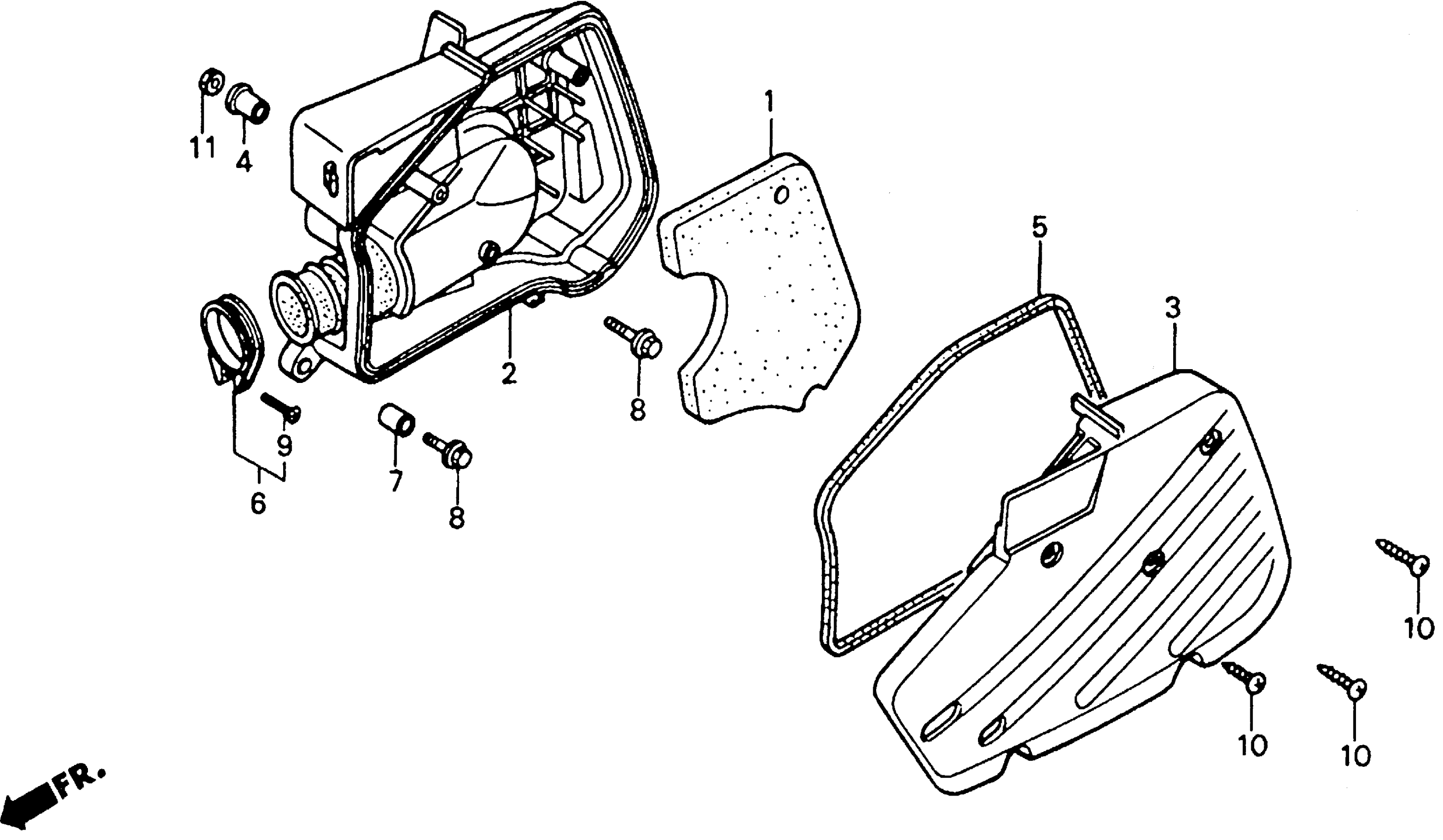

Honda SA50A (94) ELITE 50 SR, MEX, VIN# 3H1AF160-RD500001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17205-GS7-950

$7.20

HOUSING, AIR CLEANER

17206-GS7-950

Unavailable

COVER, AIR CLEANER HOUSING This part replaces 17207-GS7-950.

17207-GY1-901

Unavailable

COVER, AIR CLEANER HOUSING

17207-GY1-901

Unavailable

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.92

SEAL, AIR CLEANER COVER This part replaces 17212-GA6-670.

17212-GS9-405

Unavailable

SEAL, AIR CLEANER COVER This part replaces 17212-GS7-000.

17212-GS9-405

Unavailable

SEAL, AIR CLEANER COVER

17212-GS9-405

Unavailable

SEAL, AIR CLEANER COVER This part replaces 17212-187-010.

17212-GS9-405

Unavailable

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17257-GS7-000.

95018-34250

$7.78

BAND, AIR CLEANER CONNECTING TUBE (34)

95018-34250

$7.78

COLLAR, FR. CARRIER RUBBER

51641-121-730

Unavailable

BOLT-WASHER (6X32)

93404-06032-00

$1.49

SCREW, PAN (4X25)

93500-04025-0H

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49
