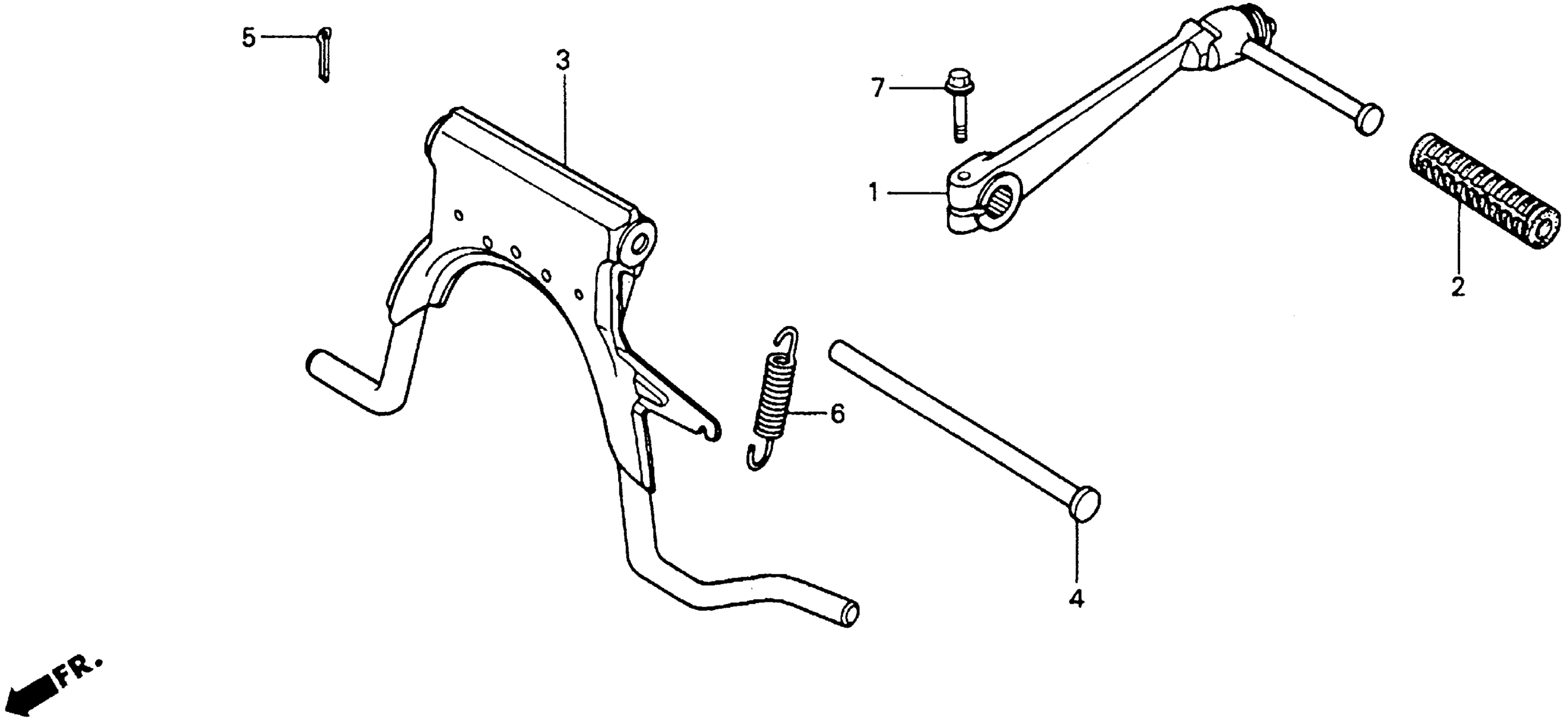

Honda SA50A (93) ELITE 50 SR, MEX, VIN# 3H1AF160-PD400001 STAND Diagram

#

Description
Price

1

ARM ASSY., KICK STARTER

28300-GS7-000

Unavailable

2

RUBBER, KICK STARTER

28311-GN2-930

Unavailable

3

STAND, MAIN

50500-GS7-690

Unavailable

4

SHAFT, MAIN STAND

50503-GR1-000

Unavailable

5

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.01

5

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.01

5

PIN, COTTER (2.5MM)

94201-25300

$1.01

6

SPRING D, MAIN STAND

95014-71402

$2.29

7

BOLT, FLANGE (6X22)

95701-06022-07

$0.87
