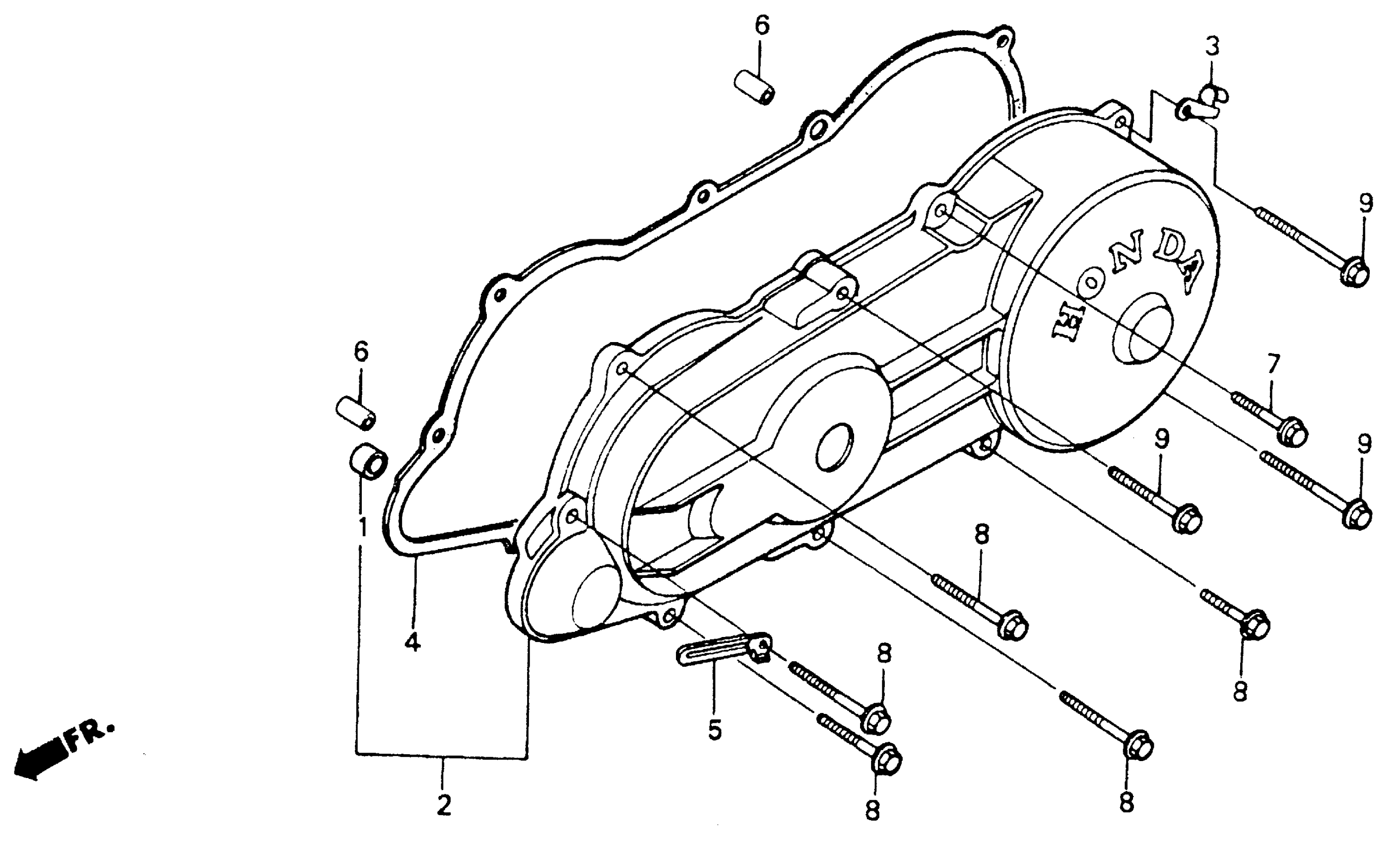

Honda SA50A (93) ELITE 50 SR, MEX, VIN# 3H1AF160-PD400001 LEFT SIDE COVER 88-93 Diagram

#

Description

Price

1

BUSH (8X12X8)

11205-GAH-003

$9.03

1

BUSH (8X12X8) | Use up to Engine SN 3631004 This part replaces 11205-GF0-761.

11205-GAH-003

$9.03

2

COVER, L. SIDE

11340-GR2-700

Unavailable

3

CLAMP, TUBE

11342-GR1-700

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-GN2-306.

11395-GY1-860

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-GN2-600.

11395-GY1-860

Unavailable

4

GASKET, L. CRANKCASE COVER

11395-GY1-860

Unavailable

5

CLIP, BYSTARTER WIRE

32906-GR1-000

Unavailable

6

PIN A, DOWEL (10X14)

94301-10140

$2.80

6

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.80

7

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

8

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

9

BOLT, FLANGE (6X50)

96001-06050-00

$2.69
