- SA50A (90) ELITE LX, MEX, VIN# 3H1AF160-LK200001 TO 3H1AF160-LK201913
HANDLE SWITCH

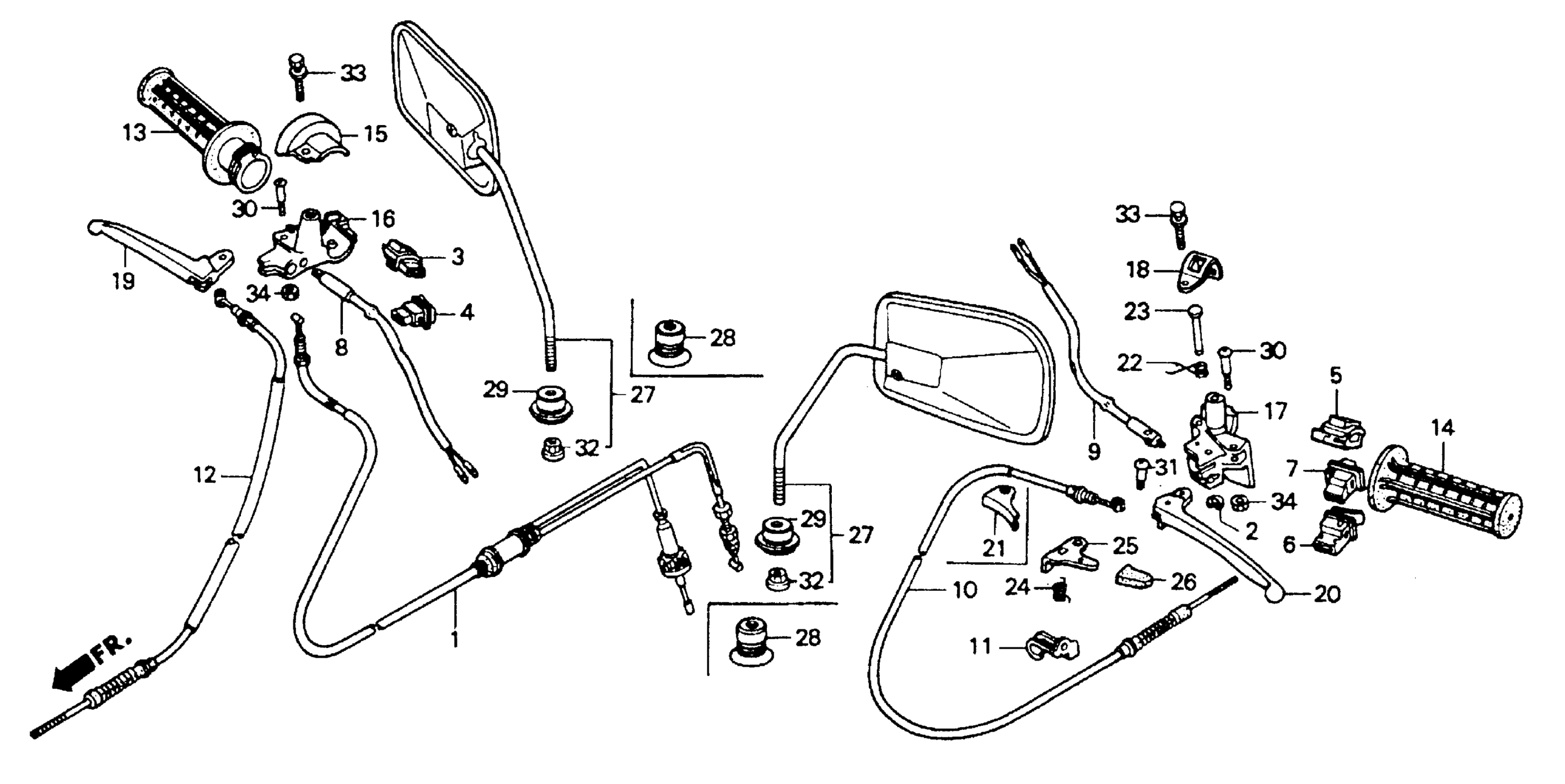

Honda SA50A (90) ELITE LX, MEX, VIN# 3H1AF160-LK200001 TO 3H1AF160-LK201913 HANDLE SWITCH Diagram
#
Description
Price
1
CABLE SET, THROTTLE
17920-GS7-306
Unavailable
3
SWITCH UNIT, STOP
35130-GS7-671
Unavailable
4
SWITCH UNIT, STARTER This part replaces 35160-GS7-670.
35160-GS7-671
Unavailable
4
SWITCH UNIT, STARTER
35160-GS7-671
Unavailable
5
SW UNIT,DIMMER . This part replaces 35170-GS7-670.
35170-GBM-701
Unavailable
10
CABLE, RR. BRAKE
43450-GS7-670
Unavailable
11
CLAMP, BRAKE CABLE
43452-GN2-600
Unavailable
12
CABLE, FR. BRAKE
45450-GS7-000
Unavailable
13
GRIP, THROTTLE
53140-GS7-000
Unavailable
15
HOUSING, THROTTLE This part replaces 53167-GS7-003.
53167-GS7-013
Unavailable
16
HOUSING, THROTTLE (LOWER) This part replaces 53168-GS7-003.
53168-GS7-013
Unavailable
16
HOUSING, THROTTLE (LOWER)
53168-GS7-013
Unavailable
17
BRACKET, HANDLE
53172-GS7-670
Unavailable
20
LEVER, L. HANDLEBAR
53178-GS7-670
Unavailable
24
SPRING, PARKING BRAKE LEVER
53191-957-010
Unavailable
25
LEVER, PARKING BRAKE LOCK
53192-GS7-670
Unavailable
26
CAP, PARKING BRAKE LEVER
53193-957-000
Unavailable
27
MIRROR ASSY. This part replaces 88110-GR2-910.
88110-GZ5-000
Unavailable
27
MIRROR ASSY.
88110-GZ5-000
Unavailable
29
CAP, LOCK NUT
88113-GS7-000
Unavailable
31
SCREW, PARKING LEVER PIVOT
90116-GS7-670
Unavailable
