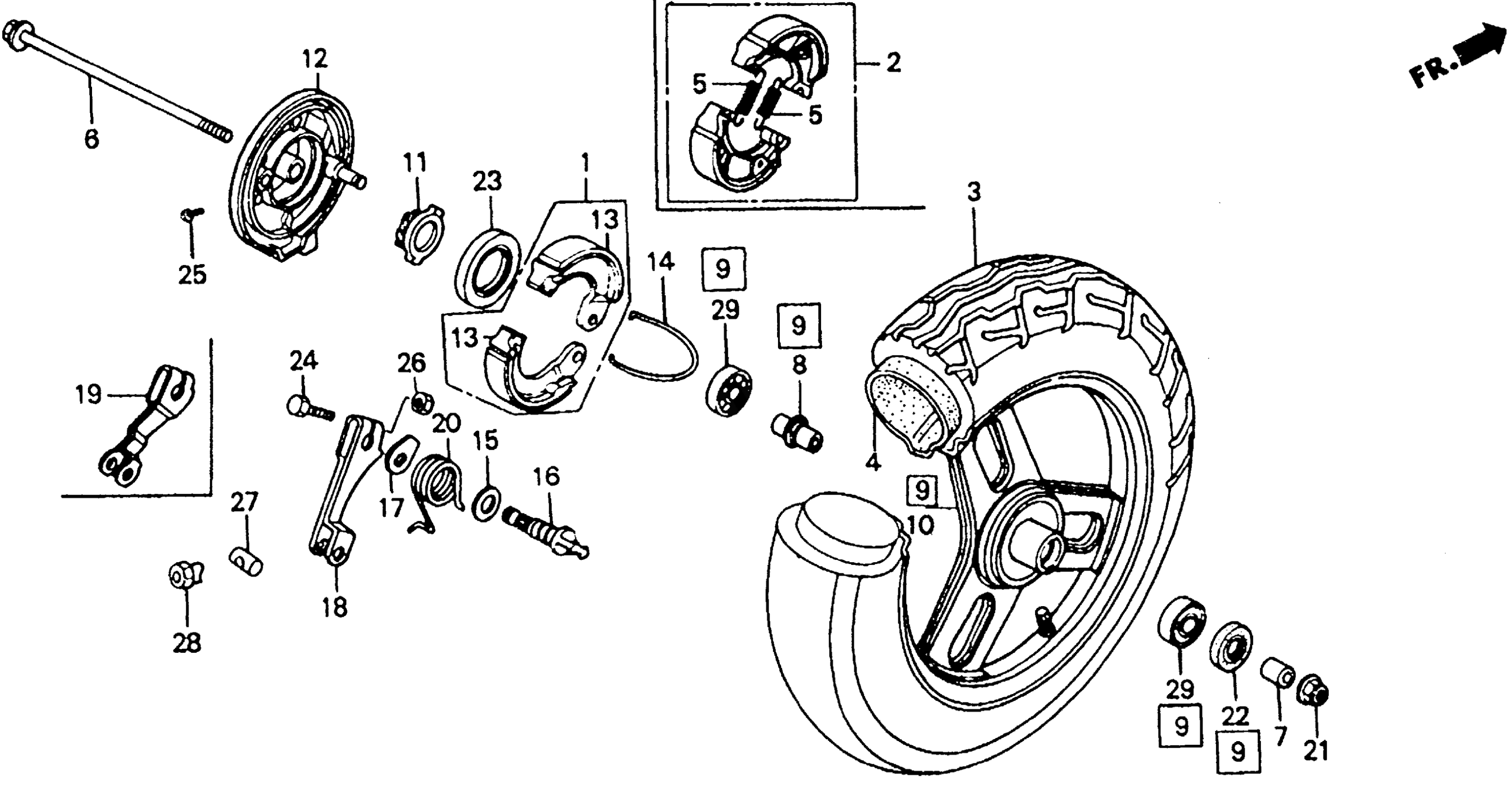

Honda SA50A (89) ELITE LX, JPN, VIN# JH2AF160-KK100001 TO JH2AF160-KK110423 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

3

TIRE (3.00-10) (4PR 42J ML24D) (BS)

42711-GS7-671

Unavailable

3

TIRE (3.00-10) (4PR 42J MB35L) (INOUE) This part replaces 42711-GS7-672.

42711-GS7-673

$73.24

3

TIRE (3.00-10) (4PR 42J MB35L) (INOUE)

42711-GS7-673

$73.24

4

TUBE, TIRE (2.50-10) (INOUE)

42712-GF0-005

Unavailable

4

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-GN2-622.

42712-GF0-005

Unavailable

4

TUBE, TIRE (3.00-10) (INOUE)

42712-GN2-623

Unavailable

4

TUBE, TIRE (3.00-10) (INOUE) This part replaces 42712-GS7-003.

42712-GN2-623

Unavailable

4

TUBE, TIRE (3.00-10) (INOUE) This part replaces 42712-GW0-006.

42712-GN2-623

Unavailable

6

AXLE, FR. WHEEL

44301-GN2-000

Unavailable

7

COLLAR, FR. WHEEL SIDE

44311-GM4-000

Unavailable

8

COLLAR, FR. DISTANCE

44620-147-000

$8.80

10

WHEEL SET, FR. *NH35M* (CLOUD SILVER METALLIC)

44650-GM8-305ZA

Unavailable

10

WHEEL SET, FR. *NH35M* (CLOUD SILVER METALLIC) This part replaces 44650-GM8-670ZC.

44650-GM8-305ZA

Unavailable

10

WHEEL SET, FR. *NH35M* (CLOUD SILVER METALLIC) This part replaces 44650-GM8-671ZC.

44650-GM8-305ZA

Unavailable

11

GEAR, SPEEDOMETER

44806-GS7-003

$18.68

12

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC)

45010-GS7-305ZE

Unavailable

13

SHOE SET, BRAKE

06430-131-405

$15.33

13

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

14

SPRING, BRAKE SHOE

45133-044-000

$2.31

15

SEAL, BRAKE CAM

45134-165-890

$1.57

16

CAM, FR. BRAKE

45141-GR1-010

Unavailable

17

INDICATOR, FR. BRAKE

45145-GN2-000

Unavailable

18

ARM, FR. BRAKE This part replaces 45410-GE8-000.

45410-GT8-600

$13.34

18

ARM, FR. BRAKE

45410-GT8-600

$13.34

20

SPRING, BRAKE ARM RETURN

45435-GC3-000

$5.90

21

NUT, U (10MM)

90304-GE8-003

$3.67

22

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$5.31

23

OIL SEAL (34X42X5) This part replaces 91252-GF0-003.

91252-GF0-004

$6.16

23

OIL SEAL (34X42X5)

91252-GF0-004

$6.16

23

OIL SEAL (34X42X5) This part replaces 91252-GK1-004.

91252-GF0-004

$6.16

24

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

25

SCREW, PAN (4X6)

93500-04006-0A

$1.49

26

NUT, HEX. (5MM)

94001-05000-0S

$2.74

27

JOINT A, BRAKE ARM

95015-31001

$1.53

28

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

29

BEARING, RADIAL BALL (6200U)

96140-62000-10

$15.44
