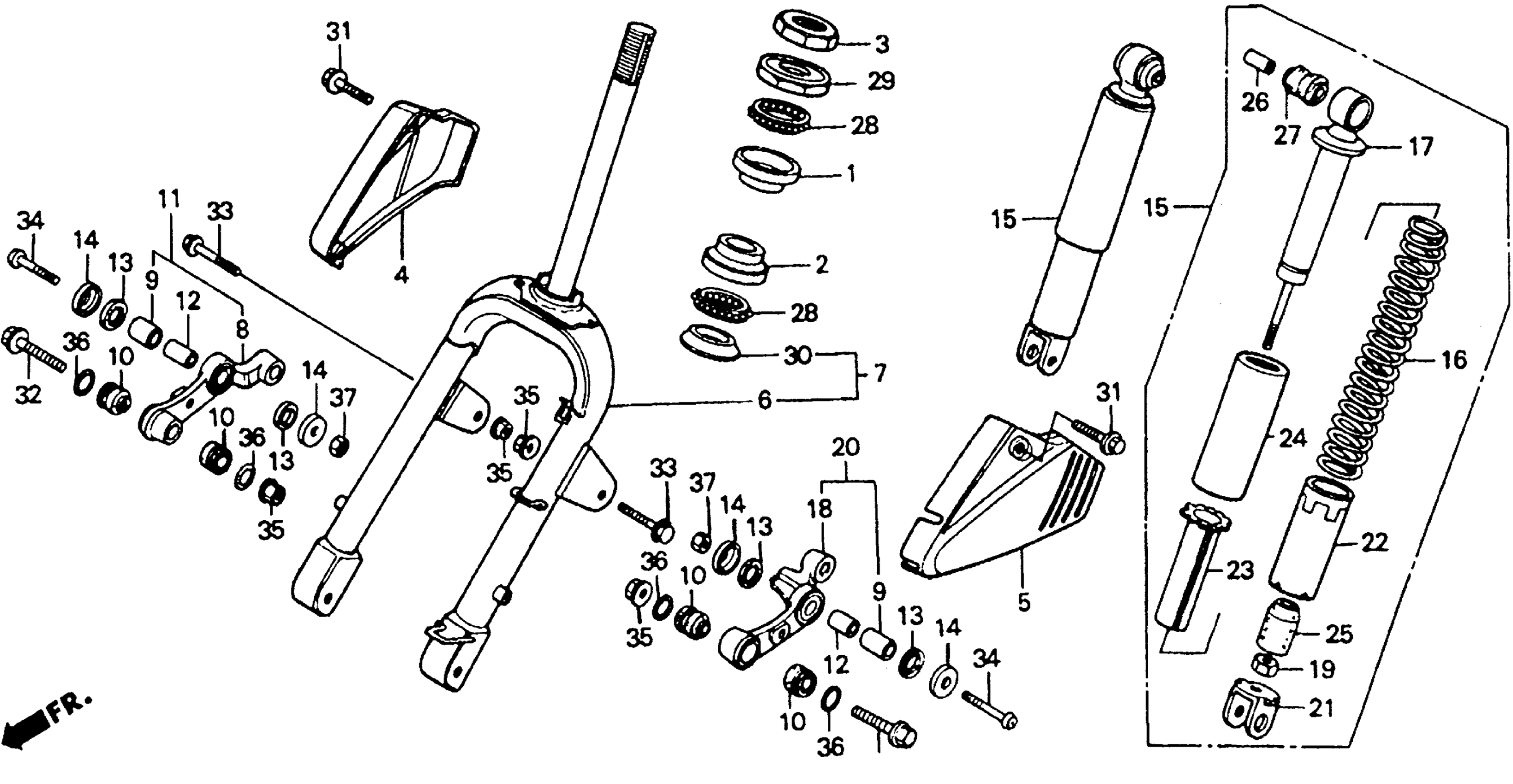

Honda SA50A (89) ELITE LX, JPN, VIN# JH2AF160-KK100001 TO JH2AF160-KK110423 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

1

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

2

RACE, STEERING BALL (LOWER)

50305-GE8-680

$10.48

3

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

4

COVER, R. PIVOT ARM *NH201R* (HUSKY GRAY)

51103-GR0-000ZB

Unavailable

5

COVER, L. PIVOT ARM *NH201R* (HUSKY GRAY)

51104-GR0-000ZB

Unavailable

6

FORK, FR. *NH147M* (BARENTS SILVER METALLIC)

51105-GS7-000ZA

Unavailable

8

ARM, R. FR. PIVOT

51311-GN2-000

Unavailable

9

BUSH, FR. FORK (LOWER)

51312-GN2-003

$7.60

10

BUSH, PIVOT ARM

51314-GR1-003

Unavailable

12

COLLAR, FR. FORK DISTANCE

51334-GN2-000

$6.56

13

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

14

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

15

FORK ASSY., R. FR. *NH147M/NH149R* (SILVER/GRAY) (NOT AVAILABLE)

51400-GN2-671ZA

Unavailable

16

SPRING, FR. FORK

51401-GN2-671

Unavailable

17

DAMPER, FR.

51410-GN2-671

Unavailable

18

ARM, L. FR. PIVOT

51411-GN2-000

Unavailable

19

NUT, LOCK (8MM)

51413-GB4-003

Unavailable

21

JOINT, FR. FORK (LOWER)

51420-GN2-003

Unavailable

22

CASE, FR. FORK (LOWER) *NH149* (DELTA GRAY)

51421-GN2-003ZA

Unavailable

23

GUIDE, FR. FORK SPRING

51458-GN2-003

Unavailable

24

CASE, FR. FORK (UPPER) *NH147M* (BARENTS SILVER METALLIC)

51460-GG2-003ZG

Unavailable

25

RUBBER, STOPPER

51475-GN2-671

Unavailable

26

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

27

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

28

BALL ASSY., STEERING STEEL

53210-GR1-751

$16.79

29

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

30

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-147-003

$8.74

31

BOLT, RR. FENDER

90003-GE0-000

$2.70

32

BOLT, FLANGE (8X48)

90111-GC3-000

$6.64

33

BOLT, FLANGE (8X37)

90118-471-000

$3.19

34

BOLT, FR. FORK (LOWER)

90149-041-010

Unavailable

35

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

35

NUT, FLANGE (8MM)

90309-428-731

$3.35

36

O-RING (16.8X1.9)

91347-PY3-000

$2.68

36

O-RING (16.8X1.9) This part replaces 91351-GA7-000.

91347-PY3-000

$2.68

37

NUT, HEX. (8MM)

94002-08000-0S

$1.49
