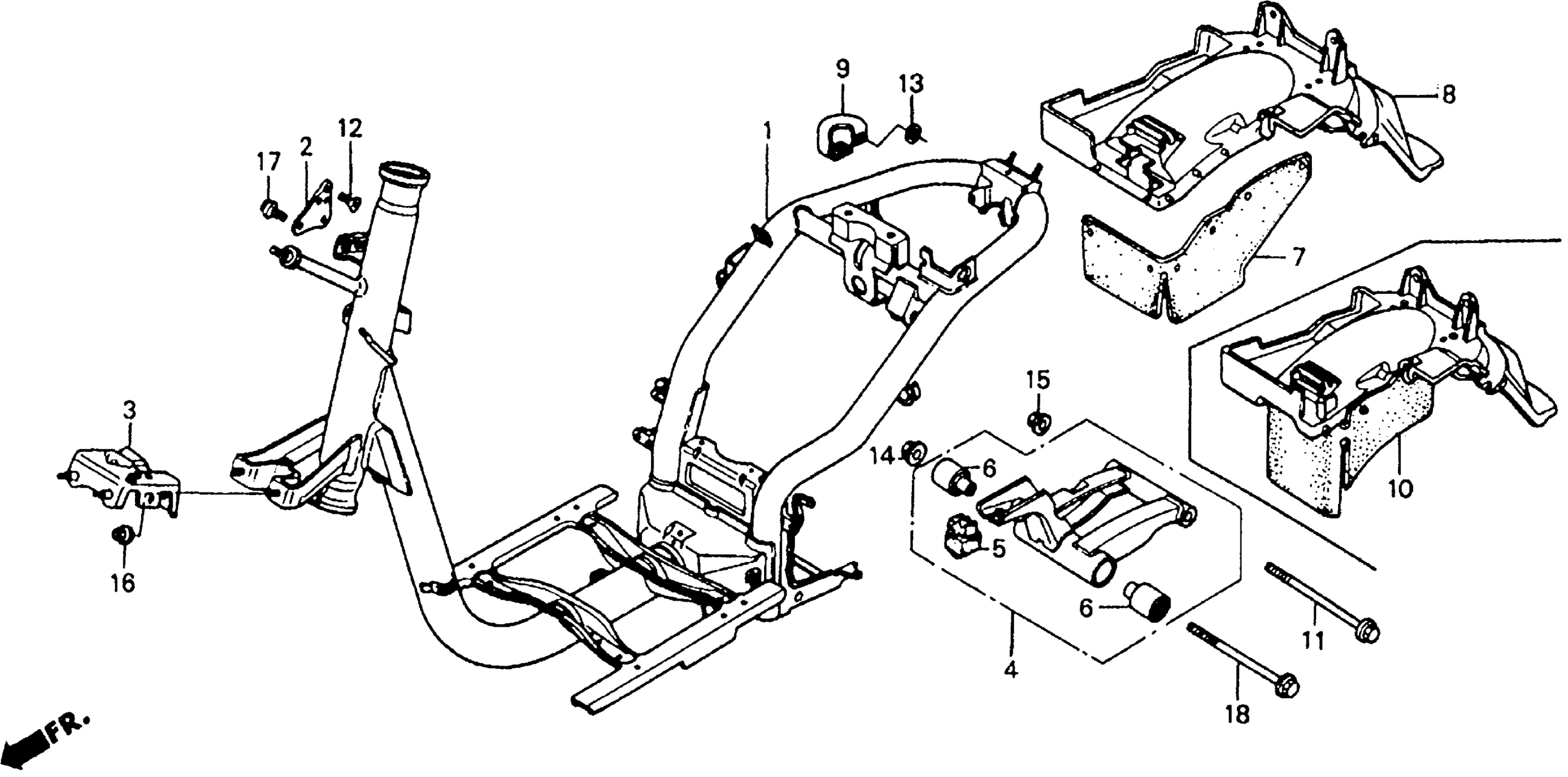

Honda SA50A (89) ELITE LX, JPN, VIN# JH2AF160-KK100001 TO JH2AF160-KK110423 FRAME Diagram

FRAME

50100-GS7-671

Unavailable

PLATE, HANDLE LOCK

50123-GN2-010

Unavailable

STAY, FR. COVER SETTING

50135-GS7-000

Unavailable

LINK ASSY., ENGINE HANGER

50350-GS7-000

Unavailable

RUBBER, LINK STOPPER

50352-GS7-000

Unavailable

BUSH, ENGINE HANGER RUBBER

50353-GE8-000

Unavailable

PLATE, SPLASH GUARD

80104-GS7-000

Unavailable

FENDER, RR.

80105-GS7-010

Unavailable

BOLT, FLANGE (8X145)

90021-ZB0-000

Unavailable

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, FLANGE (8MM)

90309-428-731

$3.35

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (10X140)

95800-10140-00

Unavailable
