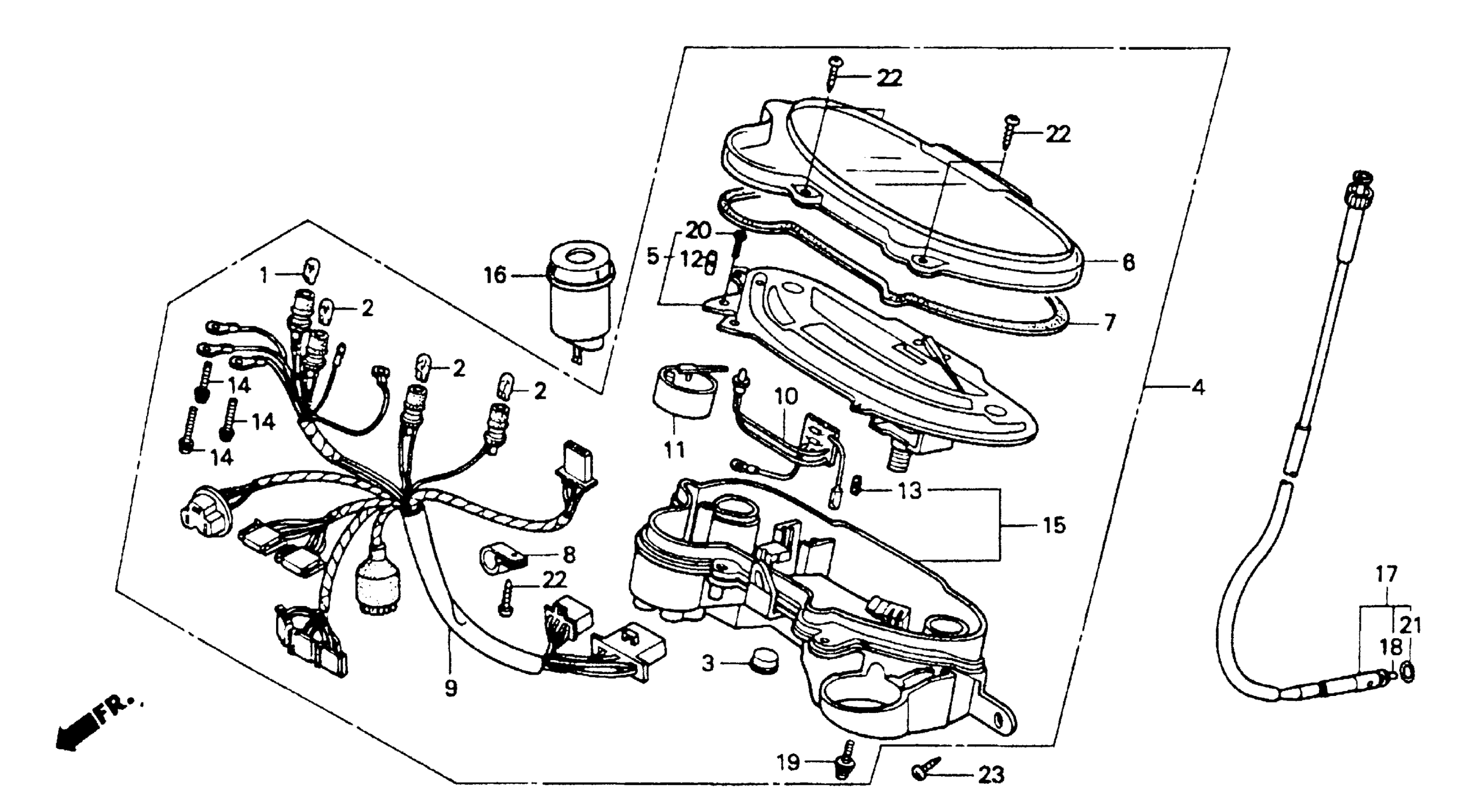

Honda SA50A (88) ELITE 50 LX, JPN, VIN# JH2AF160-JK000001 TO JH2AF160-JK007077 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

34908-MB9-871

$2.78

3

CAP A

37116-KG4-008

Unavailable

4

SPEEDOMETER ASSY. (MPH)

37200-GS7-671

Unavailable

5

SPEEDOMETER (MPH)

37210-GS7-671

Unavailable

6

LENS

37211-GS7-008

Unavailable

7

GASKET

37213-GS7-008

Unavailable

8

CLAMP

37215-MB6-831

$2.65

9

SOCKET | Use up to Frame SN JK000022 This part replaces 37223-GS7-670.

37223-GS7-671

Unavailable

9

SOCKET

37223-GS7-671

Unavailable

10

INDICATOR, L.E.D.

37230-GS7-000

Unavailable

11

METER ASSY., FUEL

37300-GS7-000

Unavailable

12

RUBBER, CUSHION

37304-KM7-911

$9.11

13

RUBBER, CUSHION

37304-198-901

$3.89

14

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

15

CASE ASSY.

37617-GS7-670

Unavailable

16

RELAY, TURN SIGNAL (AP) | Use up to Frame SN JK000022 This part replaces 38301-GS7-670.

38301-GS7-671

Unavailable

16

RELAY, TURN SIGNAL (AP)

38301-GS7-671

Unavailable

17

CABLE, SPEEDOMETER | Use up to Frame SN JK000022 This part replaces 44830-GS7-000.

44830-GS7-020

Unavailable

17

CABLE, SPEEDOMETER This part replaces 44830-GS7-010.

44830-GS7-020

Unavailable

17

CABLE, SPEEDOMETER

44830-GS7-020

Unavailable

18

CABLE (INNER)

44831-GN2-930

Unavailable

19

SCREW-WASHER, SPECIAL

90035-166-008

$2.67

20

SCREW, PAN (2.3X7)

90107-GC8-000

$2.92

21

O-RING (8.8X1.5)

91312-PH7-000

Unavailable

21

O-RING (8.5X1.5) This part replaces 91352-671-003.

91312-PH7-000

Unavailable

21

O-RING (8.5X1.5) This part replaces 91352-671-004.

91312-PH7-000

Unavailable

22

SCREW, TAPPING (4X16)

93903-24420

$1.49

23

SCREW, TAPPING (5X16)

93903-25310

$1.49
