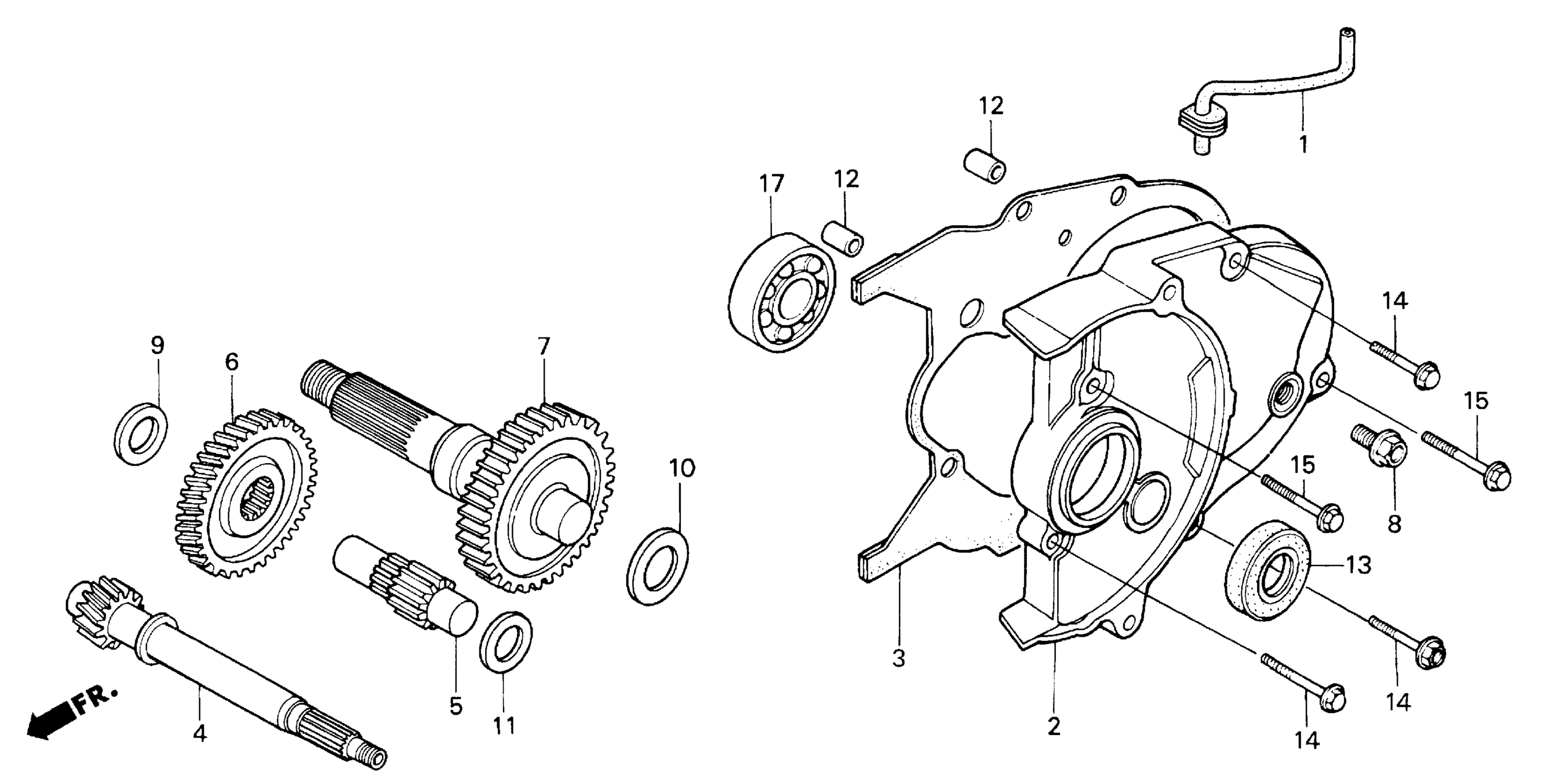

Honda SA50A (01) ELITE SR, MEX, VIN# 3H1AF160-1D200001 TRANSMISSION Diagram

#

Description
Price

1

TUBE, BREATHER

11211-GW0-000

Unavailable

2

COVER, TRANSMISSION

21301-GBL-870

Unavailable

3

GASKET, TRANSMISSION COVER

21395-GBL-870

$9.13

4

DRIVESHAFT (12T)

23411-GW0-010

Unavailable

5

COUNTERSHAFT (13T)

23421-GW0-000

Unavailable

6

GEAR, COUNTERSHAFT (42T)

23422-GW0-000

Unavailable

7

GEAR, FINAL (45T)

23430-GBL-880

Unavailable

8

BOLT, CHECK (8MM)

90035-GF4-000

$7.16

9

WASHER, SIDE (14MM) (BANDO)

90429-GBL-871

Unavailable

9

WASHER, SIDE (14MM) This part replaces 90429-GBL-872.

90429-GET-000

$2.21

9

WASHER, SIDE (14MM)

90429-GET-000

$2.21

10

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

11

WASHER, THRUST (14MM)

90454-350-000

$3.74

12

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

12

PIN A, DOWEL (10X14)

94301-10140

$2.28

13

OIL SEAL (17X30X5) (NIPPON)

91204-GN2-005

$6.09

14

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

15

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

17

BEARING, RADIAL BALL (6203) This part replaces 91022-GCW-003.

96100-62033-00

$10.00

17

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
