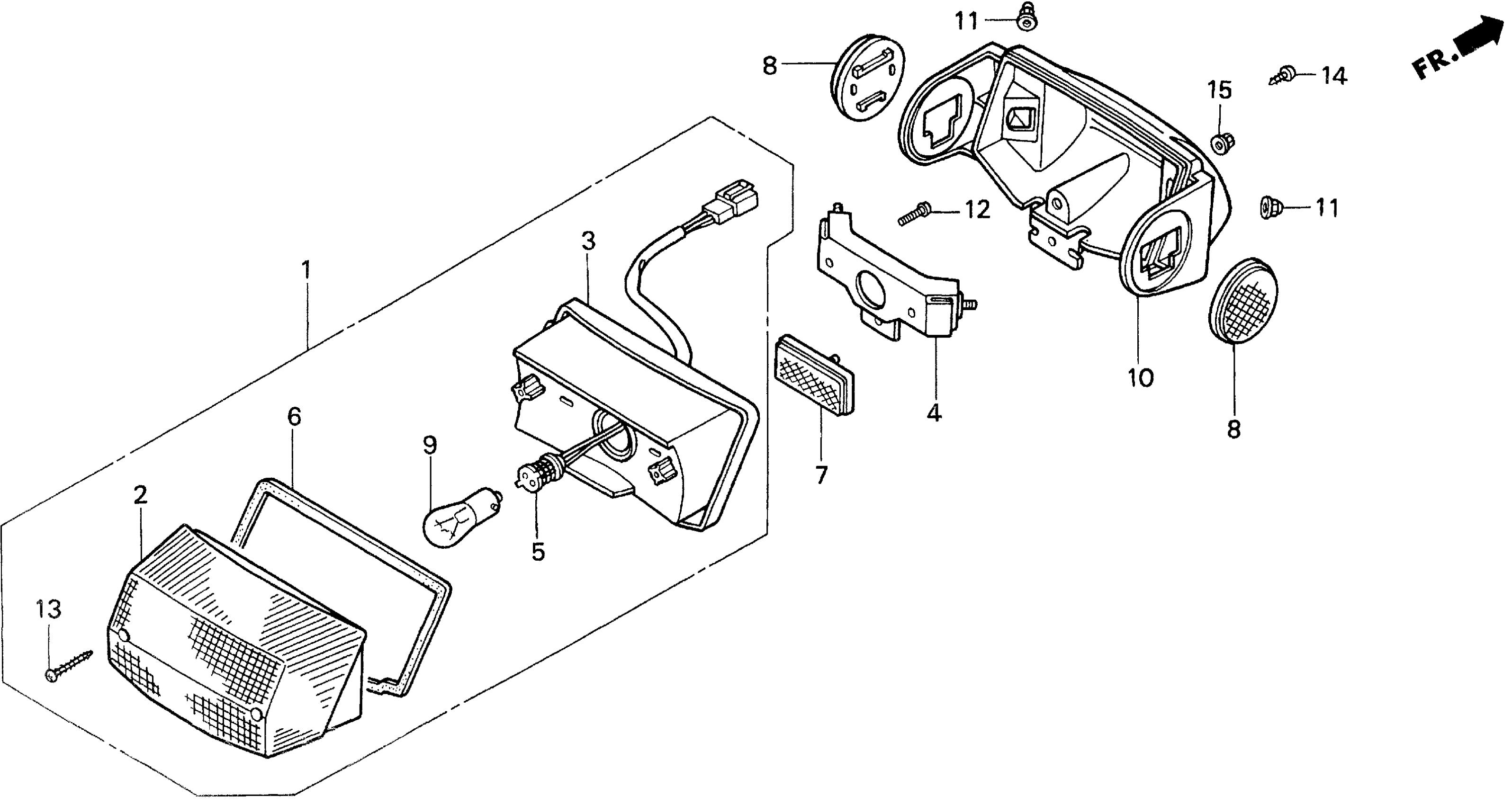

Honda SA50A (01) ELITE SR, MEX, VIN# 3H1AF160-1D200001 TAILLIGHT Diagram

TAILLIGHT UNIT (12V 32/3CP)

33701-GS7-671

Unavailable

LENS, TAILLIGHT This part replaces 33702-GS7-671.

33702-GC8-614

Unavailable

BASE, TAILLIGHT

33704-GS7-671

Unavailable

BRACKET, TAILLIGHT SETTING

33705-GS7-670

Unavailable

WIRE, TAILLIGHT

33706-GS7-670

Unavailable

GASKET, TAILLIGHT LENS

33709-GC8-611

Unavailable

REFLECTOR, REFLEX

33741-GK8-672

Unavailable

REFLECTOR, RR. REFLEX

33741-GS7-671

$14.68

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

COVER, TAILLIGHT

80108-GS7-670

Unavailable

NUT, CAP (6MM)

90201-428-900

$2.23

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, TAPPING (4X30)

93901-34710

$1.49

SCREW, TAPPING (4X10)

93903-34280

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49
