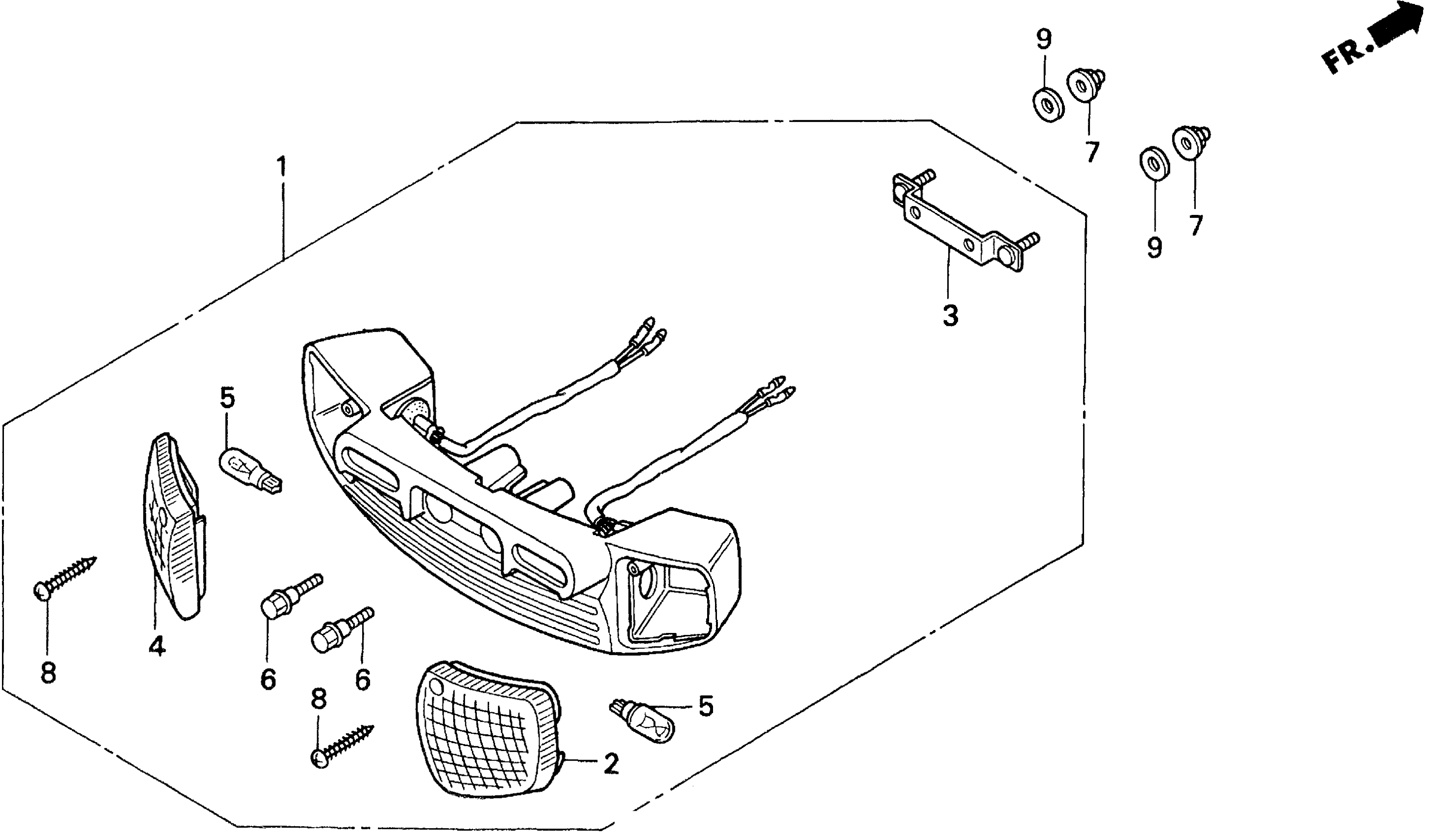

Honda SA50A (01) ELITE SR, MEX, VIN# 3H1AF160-1D200001 REAR TURN SIGNAL Diagram

LIGHT ASSY., RR. TURN SIGNAL (12V 18W 21CP) *NH1* (BLACK)

33600-GS7-671ZC

Unavailable

LENS, R. RR. TURN SIGNAL

33605-GS7-671

Unavailable

BRACKET, RR. TURN SIGNAL

33607-GS7-671

Unavailable

LENS, L. RR. TURN SIGNAL

33655-GS7-671

Unavailable

BULB (12V 16W) This part replaces 34901-SB3-671.

34901-TK8-A01

$4.65

BOLT, FLANGE (6X20)

90113-449-000

$3.19

NUT, CAP (6MM)

90201-415-000

$2.05

SCREW, TAPPING (4X30)

93901-34710

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
