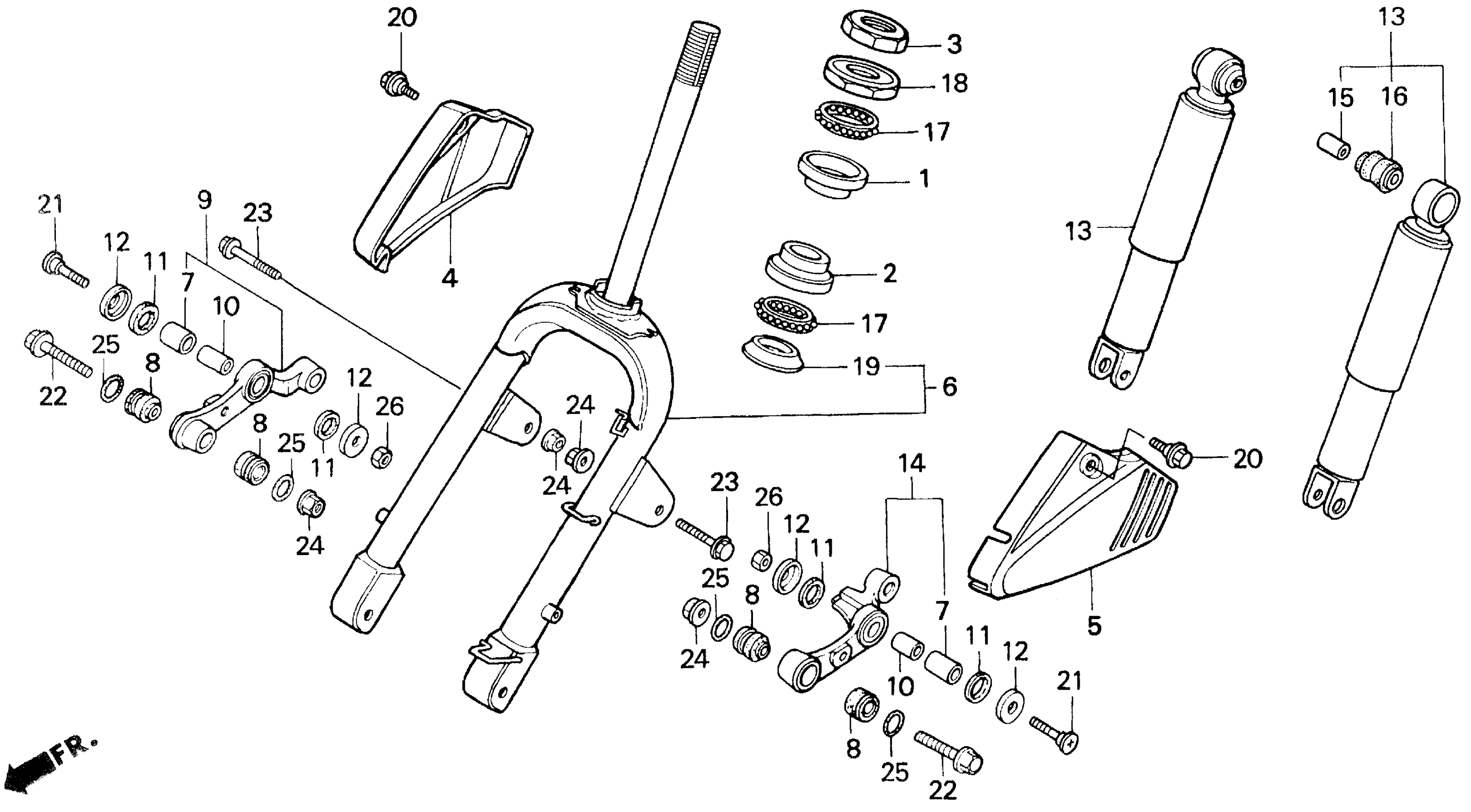

Honda SA50A (01) ELITE SR, MEX, VIN# 3H1AF160-1D200001 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

1

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

2

RACE, STEERING BALL (LOWER)

50305-GE8-680

$10.48

3

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

4

COVER, R. PIVOT ARM *NH1* (BLACK)

51103-GR0-000ZA

Unavailable

5

COVER, L. PIVOT ARM *NH1* (BLACK)

51104-GR0-000ZA

Unavailable

6

FORK SET, FR. *NH1* (BLACK)

51110-GS7-307ZA

$175.75

7

BUSH, FR. FORK (LOWER)

51312-GN2-003

$7.60

8

BUSH, PIVOT ARM

51314-GR1-003

Unavailable

9

ARM SET, R.

51315-GS7-305

Unavailable

10

COLLAR, FR. FORK DISTANCE

51334-GN2-000

$6.56

11

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

12

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

13

CUSHION ASSY., FR. *NH147M* (SHOWA) (BARENTS SILVER METALLIC)

51400-GS7-951ZA

Unavailable

14

ARM SET, L.

51415-GS7-305

Unavailable

15

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

16

BUSH, RR. SHOCK ABSORBER

52489-074-003

Unavailable

17

BALL ASSY., STEERING STEEL

53210-GR1-751

$16.79

18

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

19

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-147-003

$8.74

20

BOLT, RR. FENDER

90003-GE0-000

$2.70

21

BOLT, FR. FORK (LOWER)

90104-KS4-000

$5.21

22

BOLT, FLANGE (8X48)

90111-GC3-000

$6.64

23

BOLT, FLANGE (8X37)

90118-471-000

$3.19

24

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

24

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

25

O-RING (16.8X1.9)

91347-PY3-000

$2.68

25

O-RING (16.8X1.9) This part replaces 91351-GA7-000.

91347-PY3-000

$2.68

26

NUT, HEX. (8MM)

94002-08000-0S

$1.49
