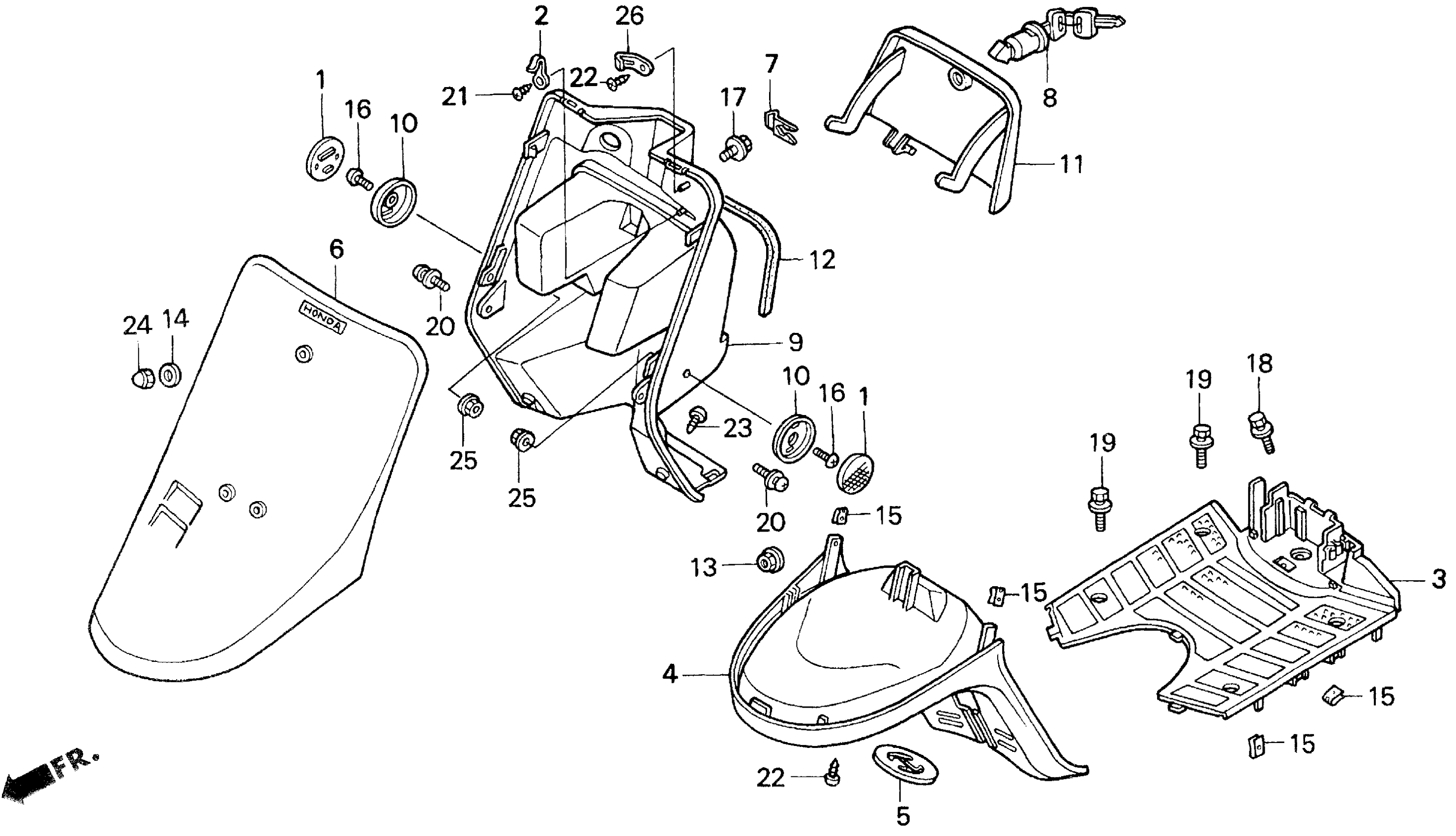

Honda SA50A (01) ELITE SR, MEX, VIN# 3H1AF160-1D200001 FRONT COVER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-GS7-671

$14.68

2

CLIP, FR. BRAKE CABLE

45465-028-000

Unavailable

3

FLOOR, STEP *NH158R* (CARBON GRAY)

50610-GS7-000ZL

Unavailable

4

FENDER, FR. *NH1* (BLACK) This part replaces 61100-GS7-000ZK.

61100-GS7-000ZL

Unavailable

4

FENDER, FR. *NH1* (BLACK)

61100-GS7-000ZL

Unavailable

5

FENDER, FR. (INNER)

61200-GS7-010

Unavailable

6

COVER SET, FR. *NH1* (WL) (BLACK)

64300-GS7-A80ZA

Unavailable

6

COVER SET, FR. *R191* (WL) (AMERICAN RED)

64300-GS7-A80ZB

Unavailable

7

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

8

LOCK, SIDE BOX

77239-GN2-970

$37.67

9

BOX (INNER) *NH158R* (CARBON GRAY)

81131-GS7-670ZF

Unavailable

10

BASE, FR. REFLECTOR *NH154R* (TASMAN GRAY)

81132-GS7-680ZC

Unavailable

11

LID,INNER *NH158* This part replaces 81141-GS7-000ZN.

81141-GS7-000ZE

Unavailable

12

SEAL A, RUBBER

81146-GS7-000

Unavailable

13

NUT-WASHER (6MM)

90311-GC3-000

Unavailable

14

WASHER (6X17)

90474-704-000

$1.49

15

NUT, CLIP (5MM)

90677-GR1-003

$4.27

16

SCREW, PAN (5X7)

91508-GA6-000

$3.64

17

BOLT-WASHER (6X12)

93404-06012-00

$1.55

18

BOLT-WASHER (6X16)

93404-06016-00

$1.55

19

BOLT-WASHER (6X25)

93404-06025-07

$1.87

20

SCREW-WASHER (5X16)

93891-05016-07

$1.49

21

SCREW, TAPPING (5X12)

93903-25210

$1.49

22

SCREW, TAPPING (4X12)

93903-34310

$1.49

23

SCREW, TAPPING (4X12)

93903-34380

$2.18

24

NUT, CAP (6MM)

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

25

NUT, FLANGE (5MM)

94050-05000

$1.49

26

CLIP (2X70)

94591-27000

$2.92
