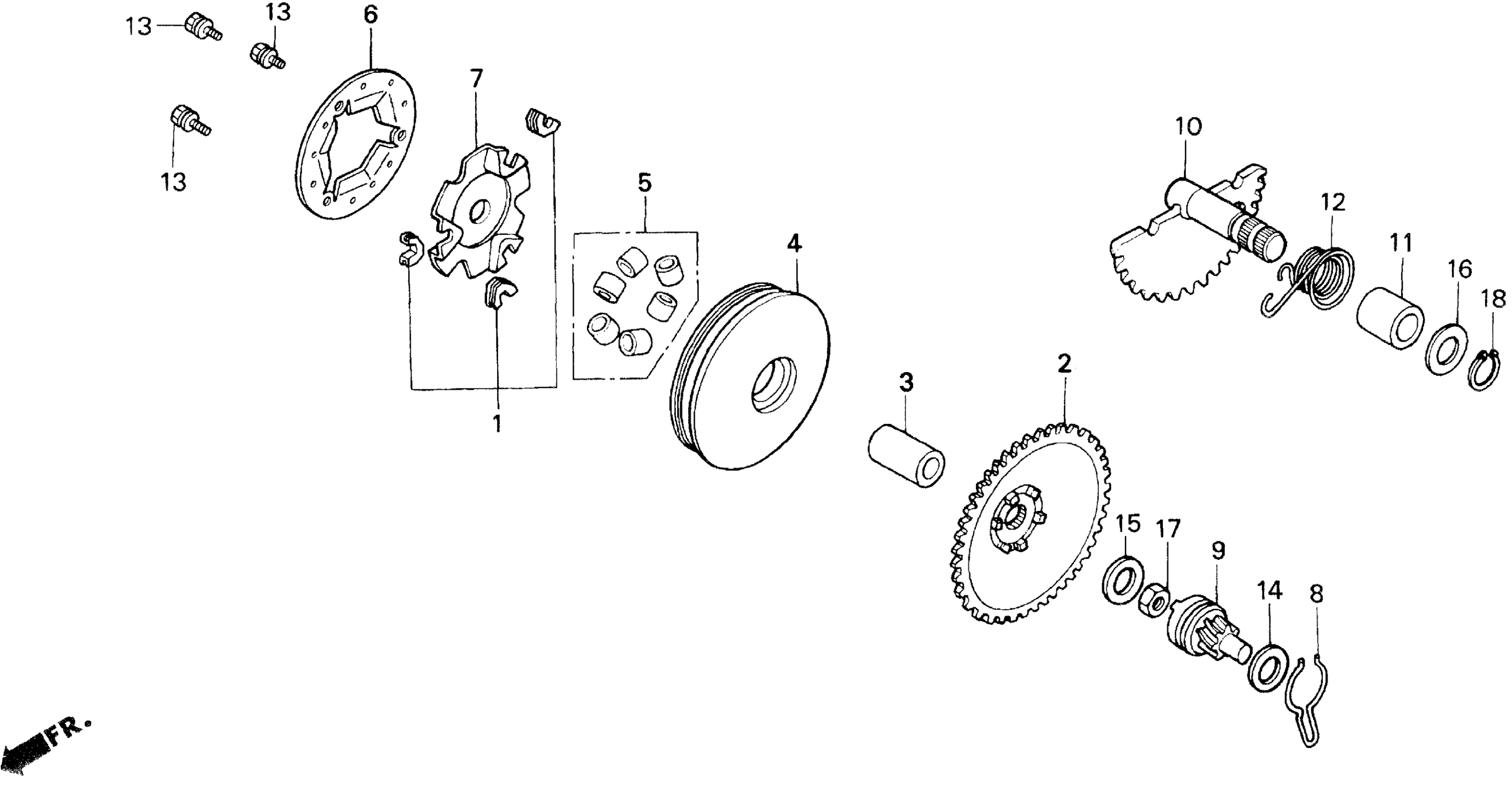

Honda SA50A (01) ELITE SR, MEX, VIN# 3H1AF160-1D200001 DRIVE FACE Diagram

PIECE SET, SLIDE

22011-GW0-000

$10.46

FACE, DRIVE (62T) This part replaces 22102-GCS-000.

22102-GAH-720

$36.02

BOSS, DRIVE FACE

22105-GAH-720

Unavailable

FACE, MOVABLE DRIVE

22110-GAH-690

$61.30

ROLLER SET, WEIGHT

22123-GZ0-000

Unavailable

PLATE, RAMP

22131-GAH-720

Unavailable

SPRING, KICK DRIVEN GEAR

28223-GAH-720

$6.84

GEAR, STARTER IDLE

28230-GBL-870

Unavailable

SPINDLE, KICK STARTER (42T)

28250-GN2-601

Unavailable

BUSH, KICK SPINDLE

28253-GBL-003

$10.07

SPRING, KICK RETURN (CHUO HATSUJO)

28281-GN2-602

Unavailable

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

WASHER, SPECIAL (12MM)

90426-KBN-900

$4.71

WASHER (14MM)

90451-GBL-870

$2.92

NUT, HEX. (12MM)

94001-12200-0S

$1.49

CIRCLIP (OUTER) (14MM)

94511-14000

$1.49
