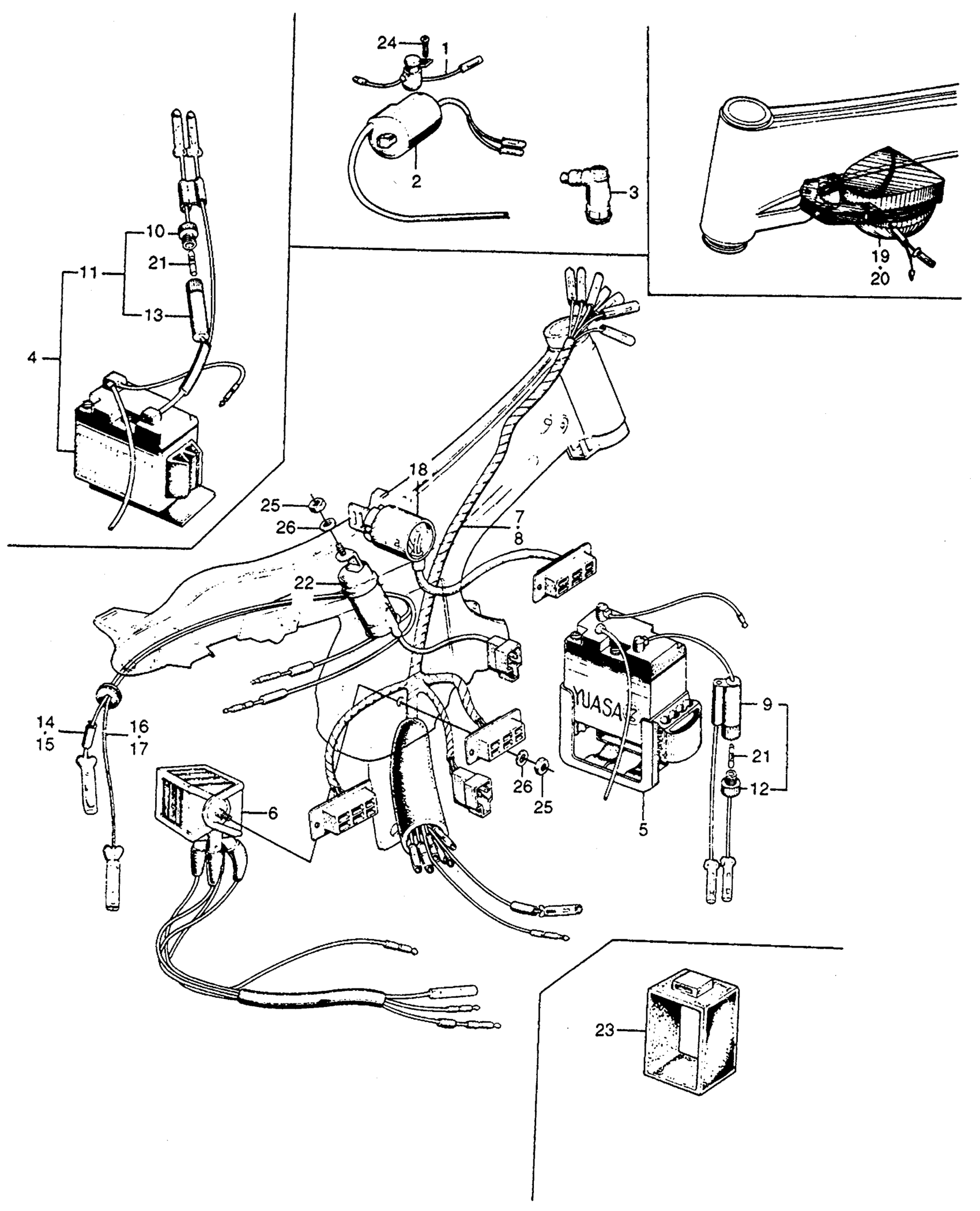

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

CONDENSER ASSY. | Use from Frame SN 424487

30250-028-000

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 30400-028-014.

30400-028-405

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 30400-028-305.

30400-028-405

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) | Use from Frame SN 424487

30400-028-405

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR | Use from Frame SN 424487 This part replaces 30700-098-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR | Use from Frame SN 424487 This part replaces 30700-098-158.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR | Use from Frame SN 424487 This part replaces 30700-098-163.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR | Use from Frame SN 424487 This part replaces 30700-259-810.

30700-KE2-942

$17.87

4

BATTERY ASSY. (6V-6A) (NOT AVAILABLE) | Use from Frame SN 747658A

31500-028-671

Unavailable

5

GUARD, BATTERY (NOT AVAILABLE) | Use from Frame SN 747658A

31510-028-000

Unavailable

6

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 31700-028-000.

31700-028-018

Unavailable

6

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 31700-028-008.

31700-028-018

Unavailable

6

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 424487

31700-028-018

Unavailable

7

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 640505 to 794063

32100-028-050

Unavailable

7

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 932941

32100-028-050

Unavailable

7

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 640505 to 794063

32100-028-670

Unavailable

8

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 424487 to 640504

32100-029-305

$105.61

9

CONNECTOR A, FUSE (NOT AVAILABLE) | Use from Frame SN 683519

32106-046-000

Unavailable

10

CONNECTOR B, FUSE (NOT AVAILABLE) | Use from Frame SN 424487 to 683518

32106-253-010

Unavailable

11

CONNECTOR ASSY., FUSE (NOT AVAILABLE) | Use from Frame SN 424487 to 683518

32111-028-305

Unavailable

12

CONNECTOR B, FUSE (YUASA) | Use from Frame SN 683519 This part replaces 32112-041-000.

32112-041-008

Unavailable

12

CONNECTOR B, FUSE (YUASA) | Use from Frame SN 683519

32112-041-008

Unavailable

13

CONNECTOR A, FUSE (NOT AVAILABLE) | Use from Frame SN 424487 to 683518

32112-253-010

Unavailable

14

SUB-WIRE, TAILLIGHT | Use from Frame SN 640505

33711-028-000

Unavailable

15

SUB-WIRE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 640505

33711-028-671

Unavailable

16

SUB-WIRE, STOP LIGHT (NOT AVAILABLE) | Use from Frame SN 640505

33713-028-000

Unavailable

16

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT) | Use from Frame SN 640505

33713-028-670

Unavailable

17

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT) | Use from Frame SN 640505

33713-028-670

Unavailable

18

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN 640505 to 932940

35010-028-010

Unavailable

18

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN 424487 to 640504 This part replaces 35010-028-000.

35010-028-010

Unavailable

20

FUSE A (10A) | Use from Frame SN 424487

98200-11000

$1.80

20

HORN ASSY. | Use from Frame SN 424487 This part replaces 38100-056-000.

38100-051-880

Unavailable

20

HORN ASSY. | Use from Frame SN 424487 This part replaces 38100-056-004.

38100-051-880

Unavailable

21

FUSE A (15A) | Use from Frame SN 683519 This part replaces 38201-250-000.

98200-11500

$1.49

21

FUSE A (15A) | Use from Frame SN 683519

98200-11500

$1.49

22

RELAY ASSY., TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 594484 This part replaces 38300-028-670.

38300-028-671

Unavailable

22

RELAY ASSY., TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 594484

38300-028-671

Unavailable

23

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use from Frame SN 640505

38306-292-670

Unavailable

24

SCREW, PAN (5X20) This part replaces 93500-05020.

93500-05020-0A

$1.49

24

SCREW, PAN (5X20)

93500-05020-0A

$1.49

24

SCREW, PAN (5X20) This part replaces 93520-05020.

93500-05020-0A

$1.49

24

SCREW, PAN (5X20) This part replaces 93520-05020-0A.

93500-05020-0A

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49
