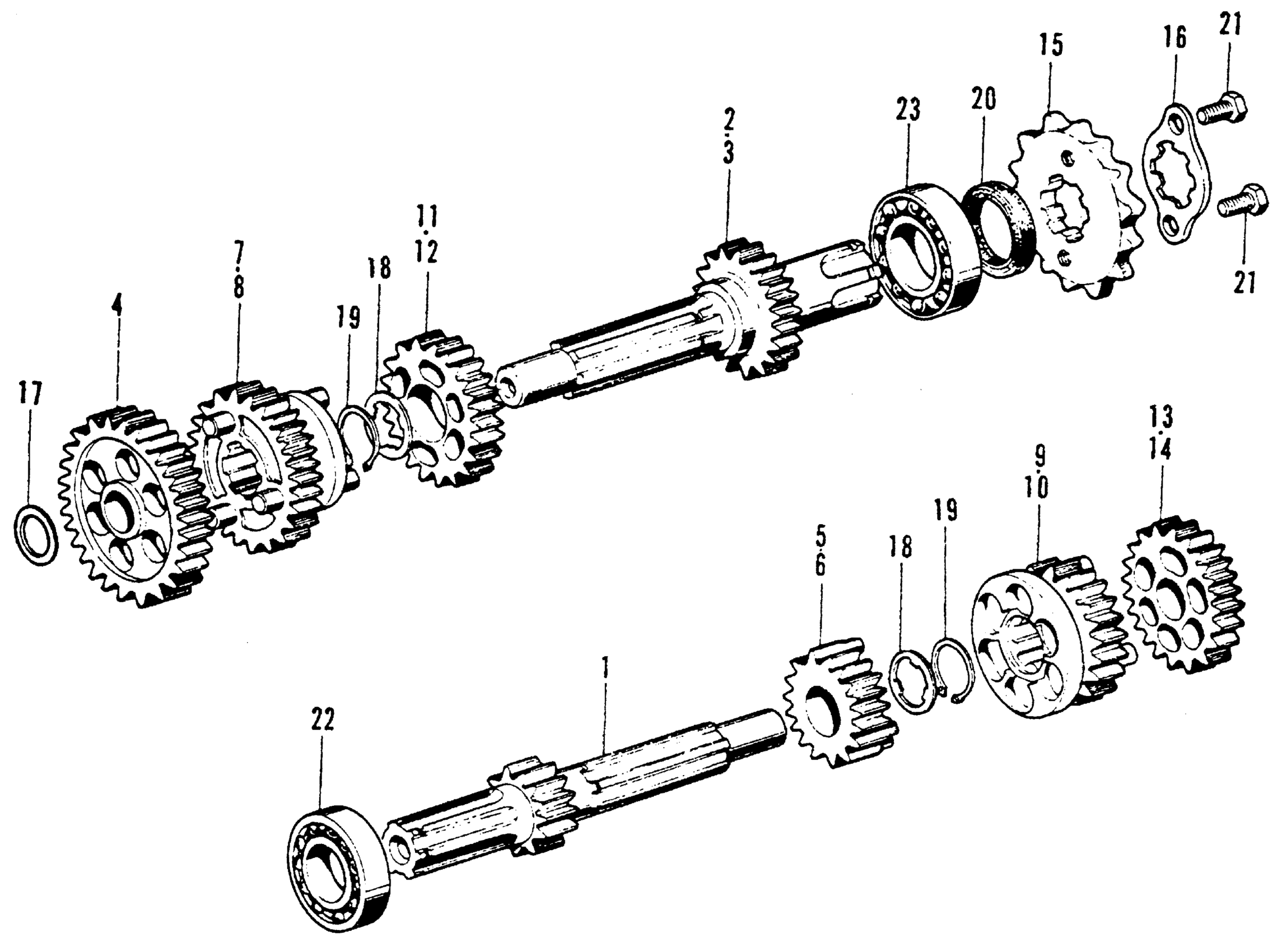

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 527511 to 714718

23211-028-030

Unavailable

1

MAINSHAFT, TRANSMISSION (13T) | Use from Engine SN 714719

23211-028-070

Unavailable

1

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

23211-028-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (22T) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

23221-028-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION (22T) (NOT AVAILABLE) | Use from Engine SN 527511

23221-028-040

Unavailable

4

GEAR, COUNTERSHAFT LOW (33T) | Use from Engine SN 424487 This part replaces 23421-028-000.

23421-096-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (33T) | Use from Engine SN 424487

23421-096-000

Unavailable

5

GEAR, SECOND MAINSHAFT (19T) | Use from Engine SN 424487 to 527510

23431-028-010

Unavailable

5

GEAR, SECOND MAINSHAFT (19T) (NOT AVAILABLE) | Use from Engine SN 527511 to 670426

23431-028-030

Unavailable

5

GEAR, SECOND MAINSHAFT (19T) (NOT AVAILABLE) | Use from Engine SN 670427 to 714718

23431-028-040

Unavailable

5

GEAR, SECOND MAINSHAFT (18T) (NOT AVAILABLE) | Use from Engine SN 714719 to 935049

23431-028-050

Unavailable

7

GEAR, SECOND COUNTERSHAFT (29T) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

23441-028-010

Unavailable

7

GEAR, SECOND COUNTERSHAFT (29T) (NOT AVAILABLE) | Use from Engine SN 527511 to 714718

23441-028-020

Unavailable

7

GEAR, SECOND COUNTERSHAFT (28T) (NOT AVAILABLE) | Use from Engine SN 714719 to 935049

23441-028-030

Unavailable

8

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE) | Use from Engine SN 935050

23441-052-020

$66.88

9

GEAR, THIRD MAINSHAFT (22T) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

23451-028-010

Unavailable

9

GEAR, THIRD MAINSHAFT (22T) (NOT AVAILABLE) | Use from Engine SN 527511 to 670426

23451-028-020

Unavailable

9

GEAR, THIRD MAINSHAFT (22T) (NOT AVAILABLE) | Use from Engine SN 670427 to 935049

23451-028-030

Unavailable

10

GEAR, MAINSHAFT THIRD (21T) | Use from Engine SN 935050

23451-052-010

Unavailable

11

GEAR, THIRD COUNTERSHAFT (24T) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

23461-028-010

Unavailable

11

GEAR, THIRD COUNTERSHAFT (24T) (NOT AVAILABLE) | Use from Engine SN 527511 to 935049

23461-028-030

Unavailable

13

GEAR, TOP MAINSHAFT (25T) | Use from Engine SN 424487 to 935049

23471-028-000

Unavailable

14

GEAR, MAINSHAFT TOP (24T) | Use from Engine SN 935050

23471-052-000

Unavailable

15

SPROCKET, DRIVE (14T) | Use from Engine SN 424487 This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

15

SPROCKET, DRIVE | Use from Engine SN 424487 to 939038 This part replaces 23801-028-000.

23801-121-000

Unavailable

15

SPROCKET, DRIVE | Use from Engine SN 424487 to 939038 This part replaces 23801-046-000.

23801-121-000

Unavailable

15

SPROCKET, DRIVE | Use from Engine SN 424487 to 939038 This part replaces 23801-052-010.

23801-121-000

Unavailable

15

SPROCKET, DRIVE (14T) | Use from Engine SN 424487 This part replaces 23801-107-760.

23801-KF9-505

$38.11

15

SPROCKET, DRIVE | Use from Engine SN 424487 to 939038

23801-121-000

Unavailable

16

PLATE B, FIXING | Use from Engine SN 637753 This part replaces 23811-028-000.

95014-92100

$1.49

16

PLATE B, FIXING | Use from Engine SN 637753

95014-92100

$1.49

16

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE) | Use from Engine SN 424487 to 637752

23811-206-000

Unavailable

17

WASHER, THRUST (14MM) | Use from Engine SN 424487

90451-001-000

$3.67

18

WASHER, SPLINE (18MM) | Use from Engine SN 527511

90461-028-000

Unavailable

18

WASHER, SPLINE (18MM) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

90461-030-000

Unavailable

19

CIRCLIP (18MM) | Use from Engine SN 424487

90601-030-000

$1.77

20

OIL SEAL (20X34X7) (ARAI) | Use from Engine SN 424487 This part replaces 91201-030-000.

91201-030-033

$5.54

20

OIL SEAL (20X34X7) (ARAI) | Use from Engine SN 424487 This part replaces 91201-030-003.

91201-030-033

$5.54

20

OIL SEAL (20X34X7) (ARAI) | Use from Engine SN 424487 This part replaces 91201-030-013.

91201-030-033

$5.54

20

OIL SEAL (20X34X7) | Use from Engine SN 424487

91201-030-015

Unavailable

20

OIL SEAL (20X34X7) (ARAI) | Use from Engine SN 424487 This part replaces 91201-030-023.

91201-030-033

$5.54

20

OIL SEAL (20X34X7) (ARAI) | Use from Engine SN 424487 This part replaces 91201-030-025.

91201-030-033

$5.54

20

OIL SEAL (20X34X7) (ARAI) | Use from Engine SN 424487

91201-030-033

$5.54

21

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

21

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

22

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

22

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

23

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

23

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
