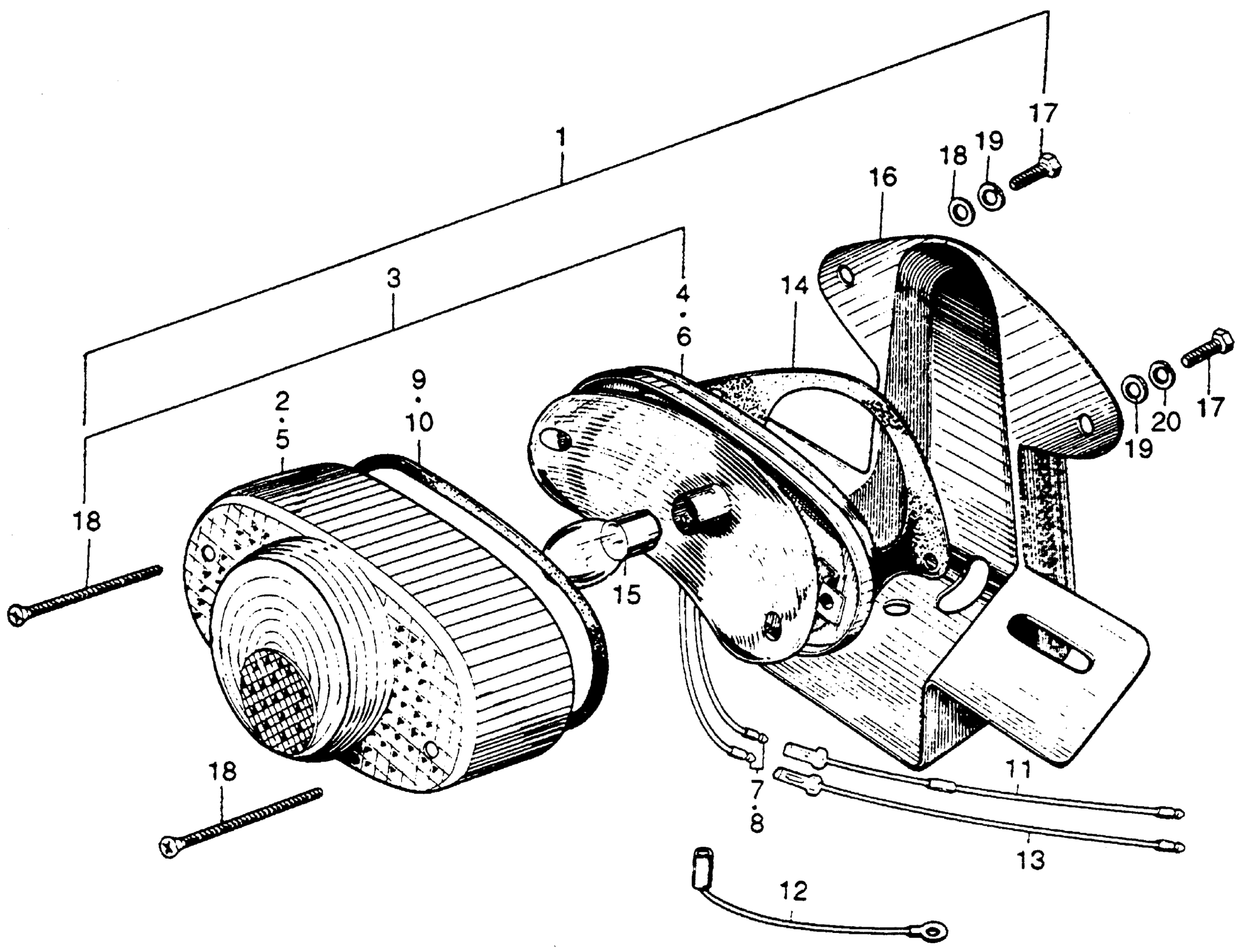

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 TAILLIGHT II Diagram

#

Description
Price

1

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 640505 to 794063 This part replaces 33700-041-671.

33700-237-670

Unavailable

1

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 640505 to 794063

33700-237-670

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 640500 to 794063

33701-041-671

Unavailable

3

TAILLIGHT, UNIT (NOT AVAILABLE) | Use from Frame SN 794064

33701-077-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 800148 to 794063

33702-041-672

Unavailable

5

LENS, TAILLIGHT | Use from Frame SN 794064

33702-077-671

$36.90

6

BASE, TAILLIGHT | Use from Frame SN 794064

33703-077-671

Unavailable

7

WIRE, TAILLIGHT | Use from Frame SN 640505 to 794063 This part replaces 33707-041-672.

33708-077-671

Unavailable

7

WIRE, TAILLIGHT | Use from Frame SN 640505 to 794063 This part replaces 33707-237-670.

33708-077-671

Unavailable

7

WIRE, TAILLIGHT | Use from Frame SN 640505 to 794063 This part replaces 33707-243-670.

33708-077-671

Unavailable

7

WIRE, TAILLIGHT | Use from Frame SN 640505 to 794063 This part replaces 33708-041-670.

33708-077-671

Unavailable

7

WIRE, TAILLIGHT | Use from Frame SN 640505 to 794063

33708-077-671

Unavailable

8

WIRE, TAILLIGHT | Use from Frame SN 794064

33708-077-671

Unavailable

9

GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use from Frame SN 640505 to 794063

33709-041-000

Unavailable

10

GASKET, TAILLIGHT | Use from Frame SN 794064

33709-077-671

$3.41

11

SUB-WIRE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 640505 to 794063

33711-028-671

Unavailable

12

WIRE, TAILLIGHT GROUND (NOT AVAILABLE) | Use from Frame SN 794064

33712-077-670

Unavailable

13

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT) | Use from Frame SN 640505 to 794063

33713-028-670

Unavailable

14

GASKET, TAILLIGHT BASE (NOT AVAILABLE) | Use from Frame SN 640505 to 794063

33719-041-300

Unavailable

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 640505 This part replaces 34906-041-671.

34906-202-670

$11.50

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 640505

34906-202-670

$11.50

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 640505 This part replaces 34906-205-222.

34906-202-670

$11.50

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 640505 This part replaces 34911-001-810.

34906-202-670

$11.50

16

BRACKET, NUMBER PLATE (NOT AVAILABLE) | Use from Frame SN 740505

84701-028-671Z

Unavailable

17

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

17

BOLT, HEX. (5X12) This part replaces 92000-05012-0B.

92101-05012-0B

$1.49

17

BOLT, HEX. (5X12) This part replaces 92000-05012-02.

92101-05012-0B

$1.49

17

BOLT, HEX. (5X12) This part replaces 92000-05012-40.

92101-05012-0B

$1.49

17

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

17

BOLT, HEX. (5X12)

92101-05012-0B

$1.49

17

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

18

SCREW, PAN (4X45)

93500-04045-0B

Unavailable

18

SCREW, PAN (4X45) This part replaces 93500-04045-02.

93500-04045-0B

Unavailable

19

WASHER, PLAIN (5MM)

94101-05000

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49
