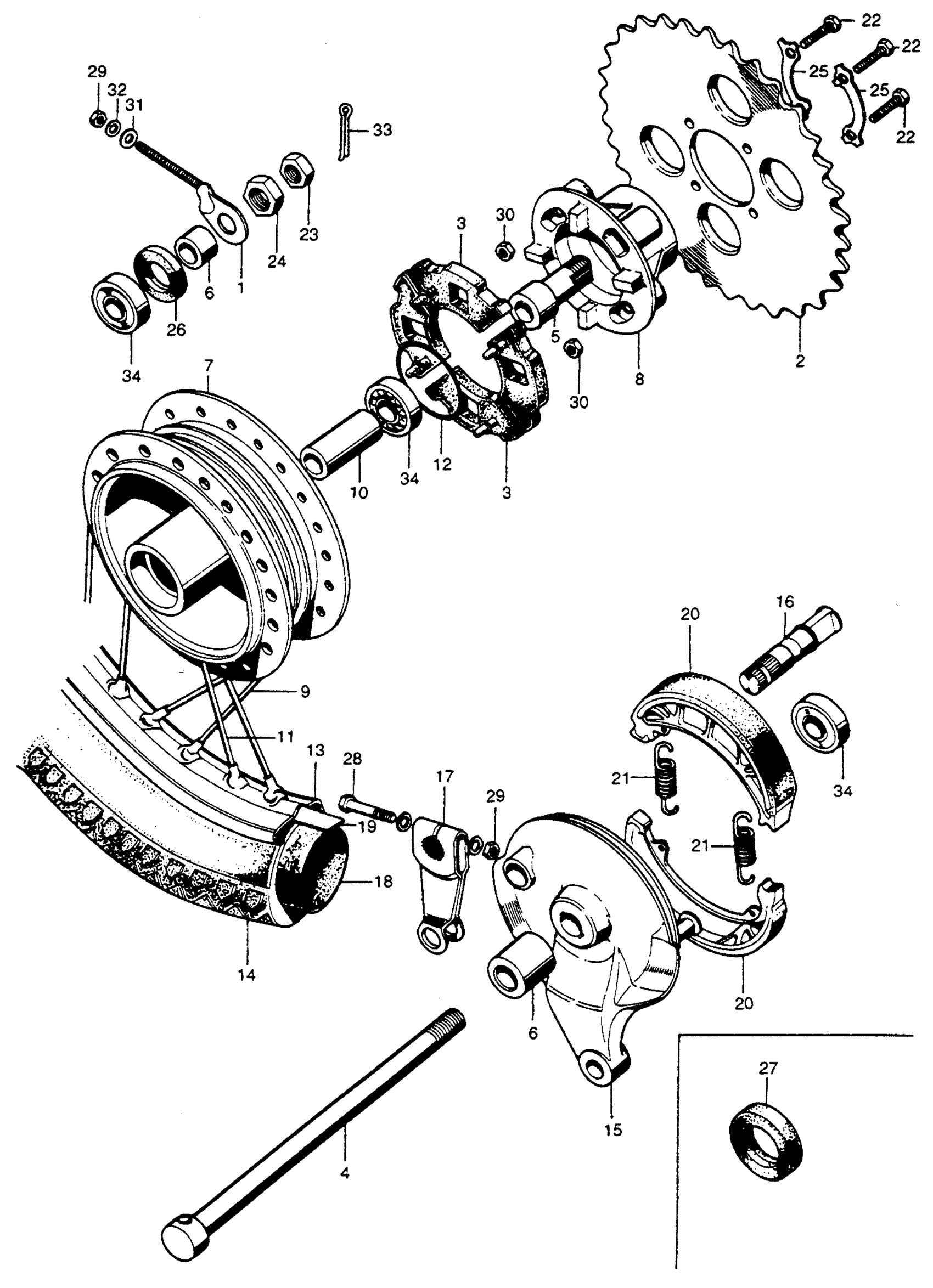

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER B, L. CHAIN | Use from Frame SN 424487 This part replaces 40544-028-000.

95014-11200

$7.15

1

ADJUSTER B, L. CHAIN | Use from Frame SN 424487

95014-11200

$7.15

2

SPROCKET, FINAL DRIVEN (45T) (NOT AVAILABLE) | Use from Frame SN 772119 to 943135 This part replaces 41201-028-010.

41201-028-305

Unavailable

2

SPROCKET, FINAL DRIVEN (45T) (NOT AVAILABLE) | Use from Frame SN 772119 to 943135

41201-028-305

Unavailable

2

SPROCKET, FINAL DRIVEN (45T) | Use from Frame SN 943136 This part replaces 41201-028-720.

41201-459-951

Unavailable

2

SPROCKET, FINAL DRIVEN (45T) | Use from Frame SN 943136

41201-459-951

Unavailable

3

DAMPER, RR. WHEEL | Use from Frame SN 424487 This part replaces 41241-001-040.

41241-001-050

$7.31

3

DAMPER, RR. WHEEL | Use from Frame SN 424487

41241-001-050

$7.31

4

AXLE, RR. WHEEL | Use from Frame SN 800148 to 930011

42301-028-020

Unavailable

4

AXLE, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 930011

42301-028-030

Unavailable

4

AXLE, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 111565 to 111944

42301-028-000

Unavailable

5

SLEEVE, RR. AXLE (NOT AVAILABLE) | Use from Frame SN 424487

42303-028-010

Unavailable

5

SLEEVE, RR. AXLE (NOT AVAILABLE) | Use from Frame SN 542753A

42303-029-000

Unavailable

6

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE) | Use from Frame SN 493169

42304-028-010

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE) | Use from Frame SN 424487 to 708387

42313-028-000

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE) | Use from Frame SN 708388

42313-028-010

Unavailable

6

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE) | Use from Frame SN 424487 to 493161

42304-028-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 424487 to 682896

42601-028-000

Unavailable

7

HUB, RR. WHEEL | Use from Frame SN 682897

42601-102-670

Unavailable

8

FLANGE, FINAL DRIVE | Use from Frame SN 424487

42610-028-000

Unavailable

9

SPOKE A, RR. (NOT AVAILABLE) | Use from Frame SN 424487 to 448542

42611-028-305

Unavailable

10

COLLAR, RR. AXLE DISTANCE | Use from Frame SN 424487

42620-001-010

Unavailable

11

SPOKE A, RR. | Use from Frame SN 424487 to 448542 This part replaces 42647-028-305.

97252-42230-1

Unavailable

11

SPOKE A, RR. | Use from Frame SN 424487 to 448542

97252-42230-1

Unavailable

12

O-RING (40.5X3) (NIPPON DUST KEEPER) | Use from Frame SN 424487 This part replaces 42653-001-000.

42653-001-004

$2.39

12

O-RING (40.5X3) (NIPPON DUST KEEPER) | Use from Frame SN 424487

42653-001-004

$2.39

13

RIM (2.50.18.4PR) | Use from Frame SN 448543 This part replaces 42701-028-010.

42701-028-023

Unavailable

13

RIM (2.50.18.4PR) | Use from Frame SN 448543 This part replaces 42701-028-013.

42701-028-023

Unavailable

13

RIM, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 424487 to 448542

42701-028-000

Unavailable

14

TIRE, RR. (2.50-18) (6PR/45L) (OHTSU) | Use from Frame SN 424487 This part replaces 42711-028-007.

42711-166-614

Unavailable

14

TIRE, RR. (2.50-18) (6PR/45L) (OHTSU) | Use from Frame SN 424487 This part replaces 42711-028-016.

42711-166-614

Unavailable

14

TIRE, RR. (2.50-18) (6PR/45L) (OHTSU) | Use from Frame SN 424487 This part replaces 42711-166-612.

42711-166-614

Unavailable

14

TIRE, RR. (2.50-18) (6PR/45L) (OHTSU) | Use from Frame SN 424487 This part replaces 42711-166-613.

42711-166-614

Unavailable

14

TIRE, RR. (2.50-18) (6PR/45L) (OHTSU) | Use from Frame SN 424487

42711-166-614

Unavailable

14

TIRE, RR. (2.50-18) (6PR/45L) (OHTSU) | Use from Frame SN 424487 This part replaces 42711-398-003.

42711-166-614

Unavailable

15

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 619619 to 708387

43100-028-010

Unavailable

15

PANEL, RR. BRAKE | Use from Frame SN 424487 to 619618

43100-028-000

$95.38

16

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 424487 to 708387

43141-001-000

Unavailable

16

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 619619 to 708387 This part replaces 43141-028-000.

43141-001-000

Unavailable

16

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 708388

43141-028-010

Unavailable

17

ARM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 619619 to 708387

43410-028-010

Unavailable

17

ARM, RR. BRAKE | Use from Frame SN 708388

43410-041-020

Unavailable

17

ARM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 424487 to 619618

43410-028-000

Unavailable

18

TUBE (275/300-18) (IRC) | Use from Frame SN 424487 This part replaces 08400-21600.

42712-KC6-005

Unavailable

18

TUBE (275/300-18) (IRC) | Use from Frame SN 424487 This part replaces 44712-028-000.

42712-KC6-005

Unavailable

18

TUBE (275/300-18) (IRC) | Use from Frame SN 424487 This part replaces 44712-150-005.

42712-KC6-005

Unavailable

18

TUBE (275/300-18) (IRC) | Use from Frame SN 424487 This part replaces 44712-205-000.

42712-KC6-005

Unavailable

19

FLAP, TIRE (NOT AVAILABLE) | Use from Frame SN 424487

44713-028-000

Unavailable

20

SHOE, BRAKE (N/A: USE P/N 451A0-001-670) | Use from Frame SN 424487

45120-001-010

Unavailable

21

SPRING, BRAKE SHOE | Use from Frame SN 424487

45133-028-000

$2.03

22

BOLT, SPROCKET | Use from Frame SN 424487 to 772118

90128-001-030

Unavailable

22

BOLT, SPROCKET (NOT AVAILABLE) | Use from Frame SN 772119 to 943135

90128-028-000

Unavailable

23

NUT, AXLE (NOT AVAILABLE) | Use from Frame SN 424483 to 800147

90305-001-000

Unavailable

23

NUT, AXLE (NOT AVAILABLE) | Use from Frame SN 800148 to 930010

90305-046-000

Unavailable

23

NUT, CASTLE (12MM) | Use from Frame SN 930011

94011-12000-0S

$1.54

24

NUT, RR. AXLE SLEEVE | Use from Frame SN 424487

90307-001-000

Unavailable

25

WASHER, TOOTHED | Use from Frame SN 424487

90552-001-000

Unavailable

26

OIL SEAL (27X40X6) (NOT AVAILABLE) | Use from Frame SN 493162 This part replaces 90753-028-010.

90753-028-013

Unavailable

26

OIL SEAL (27X40X6) (NOT AVAILABLE) | Use from Frame SN 493162

90753-028-013

Unavailable

26

OIL SEAL (23606) (NOT AVAILABLE) | Use from Frame SN 424487 to 493161

90753-028-000

Unavailable

27

OIL SEAL (18X37X7) (NOT AVAILABLE) | Use from Frame SN 424487

91254-001-000

Unavailable

28

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

28

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

28

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

30

NUT, HEX. (8MM)

94002-08000-0S

$1.49

30

NUT, HEX. (8MM)

94031-08000

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, SPRING (6MM)

94111-06000

$1.49

33

PIN, COTTER (3.0X45) | Use from Frame SN 930011 This part replaces 94201-30250.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) | Use from Frame SN 930011 This part replaces 94201-30300.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) | Use from Frame SN 930011 This part replaces 94201-30400.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) | Use from Frame SN 930011

94201-30450

$1.49

34

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

34

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6203) This part replaces 96120-62030.

96120-62030-00

$17.70

34

BEARING, RADIAL BALL (6203)

96120-62030-00

$17.70
