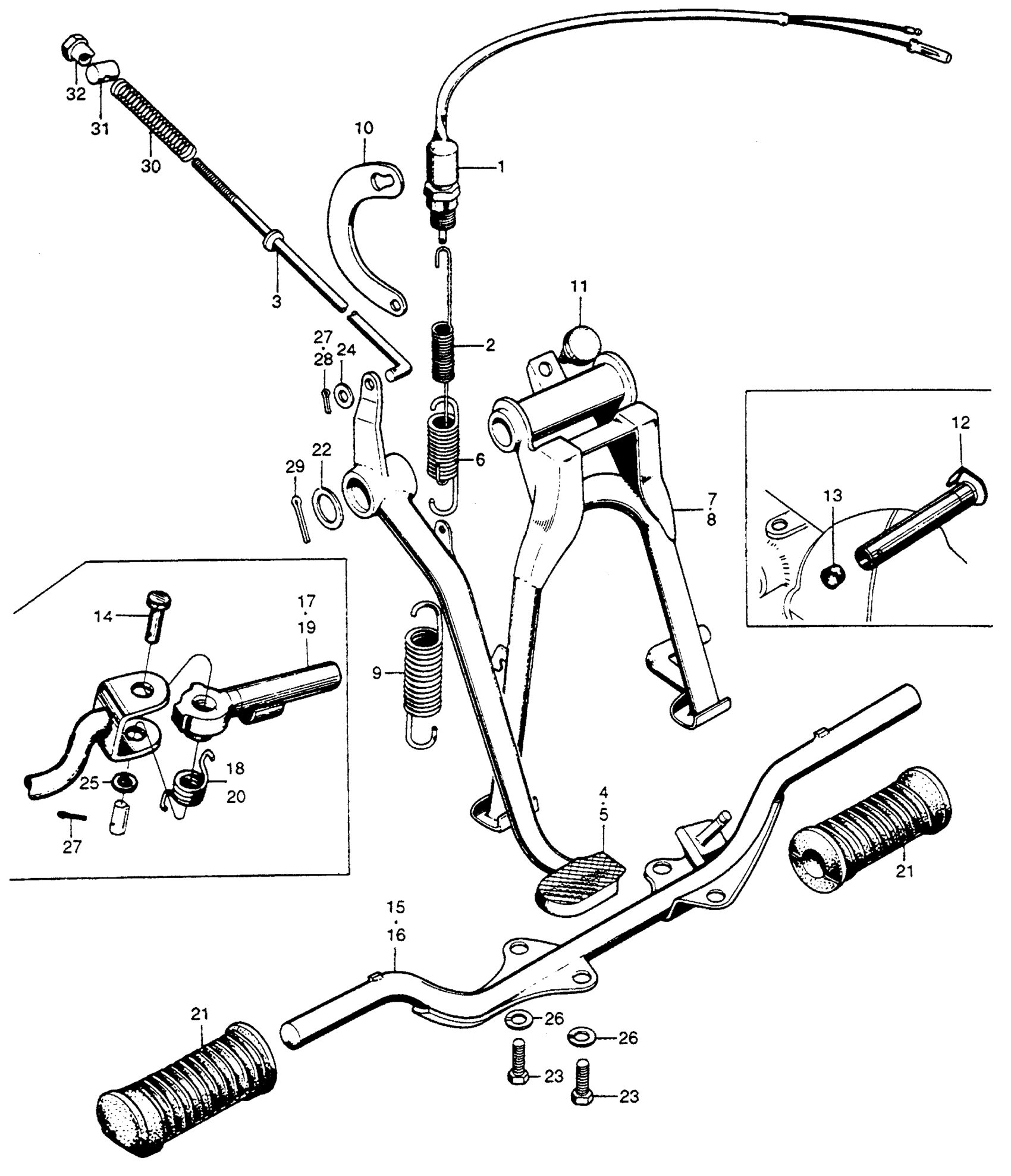

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 REAR BRAKE + MAIN STAND + SIDE STAND Diagram

#

Description
Price

1

SWITCH ASSY., STOP | Use from Frame SN 424487 This part replaces 35350-028-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP | Use from Frame SN 424487 This part replaces 35350-051-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP | Use from Frame SN 424487 This part replaces 35350-098-003.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP | Use from Frame SN 424487

35350-098-005

Unavailable

2

SPRING, STOP SWITCH | Use from Frame SN 424487 This part replaces 35357-028-010.

35357-393-000

Unavailable

2

SPRING, STOP SWITCH | Use from Frame SN 424487

35357-393-000

Unavailable

2

SPRING, STOP SWITCH | Use from Frame SN 111945 to 131817

35357-KF9-900

Unavailable

2

SPRING, STOP SWITCH

35357-011-000

$2.46

2

SPRING, STOP SWITCH | Use from Frame SN 111945 to 131817 This part replaces 35357-028-000.

35357-KF9-900

Unavailable

3

ROD, RR. BRAKE | Use from Frame SN 424487 This part replaces 43451-028-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE | Use from Frame SN 424487

43451-397-000

$7.34

4

PEDAL, BRAKE (NOT AVAILABLE) | Use from Frame SN 424487

46500-028-670

Unavailable

6

SPRING, BRAKE PEDAL | Use from Frame SN 424487 This part replaces 46514-028-000.

46514-GW8-670

$4.33

7

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 111565 to 118518

50500-028-000B

Unavailable

7

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 424487

50500-028-670B

Unavailable

9

SPRING, MAIN STAND | Use from Frame SN 424487 This part replaces 50522-028-010.

95014-71202

$2.84

9

SPRING, MAIN STAND | Use from Frame SN 424487

95014-71202

$2.84

9

SPRING, MAIN STAND (NOT AVAILABLE) | Use from Frame SN 111565 to 118518

50522-028-000

Unavailable

10

HOOK, MAIN STAND SPRING (NOT AVAILABLE) | Use from Frame SN 424487

50523-028-000

Unavailable

11

RUBBER B, STAND STOPPER | Use from Frame SN 424487 This part replaces 50524-011-000.

95011-62000

$1.49

11

RUBBER B, STAND STOPPER | Use from Frame SN 424487

95011-62000

$1.49

12

PIPE, MAIN STAND PIVOT | Use from Frame SN 424487 This part replaces 50526-028-010.

50526-383-670

Unavailable

12

PIPE, MAIN STAND PIVOT | Use from Frame SN 424487 This part replaces 50526-331-000.

50526-383-670

Unavailable

12

PIPE, MAIN STAND PIVOT | Use from Frame SN 424487

50526-383-670

Unavailable

12

PIPE, MAIN STAND PIVOT (NOT AVAILABLE) | Use from Frame SN 111565 to 118518

50526-028-000

Unavailable

13

PLUG, PIVOT PIPE OIL (NOT AVAILABLE) | Use from Frame SN 424487

50528-028-000

Unavailable

15

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 424487

50610-028-600B

Unavailable

21

RUBBER, STEP

95011-21000

$8.33

22

WASHER (17X22) | Use from Frame SN 424487

90521-028-000

$1.89

23

BOLT, HEX. (8X22) This part replaces 90061-030-000.

92101-08022-0A

Unavailable

23

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

23

BOLT, HEX. (8X22) This part replaces 92000-08022.

92101-08022-0A

Unavailable

23

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

23

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

23

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

28

PIN, COTTER (2.0X15)

94201-20150

$1.49

29

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

29

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

29

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

29

PIN, COTTER (3.0X45)

94201-30450

$1.49

30

SPRING A, BRAKE ROD | Use from Frame SN 424487

95014-73100

$1.49

31

JOINT A, BRAKE ARM | Use from Frame SN 424487 This part replaces 95015-31000.

95015-31001

$1.53

31

JOINT A, BRAKE ARM | Use from Frame SN 424487

95015-31001

$1.53

32

NUT A, BRAKE ROD ADJUSTING | Use from Frame SN 424487

95015-41000

$1.49
