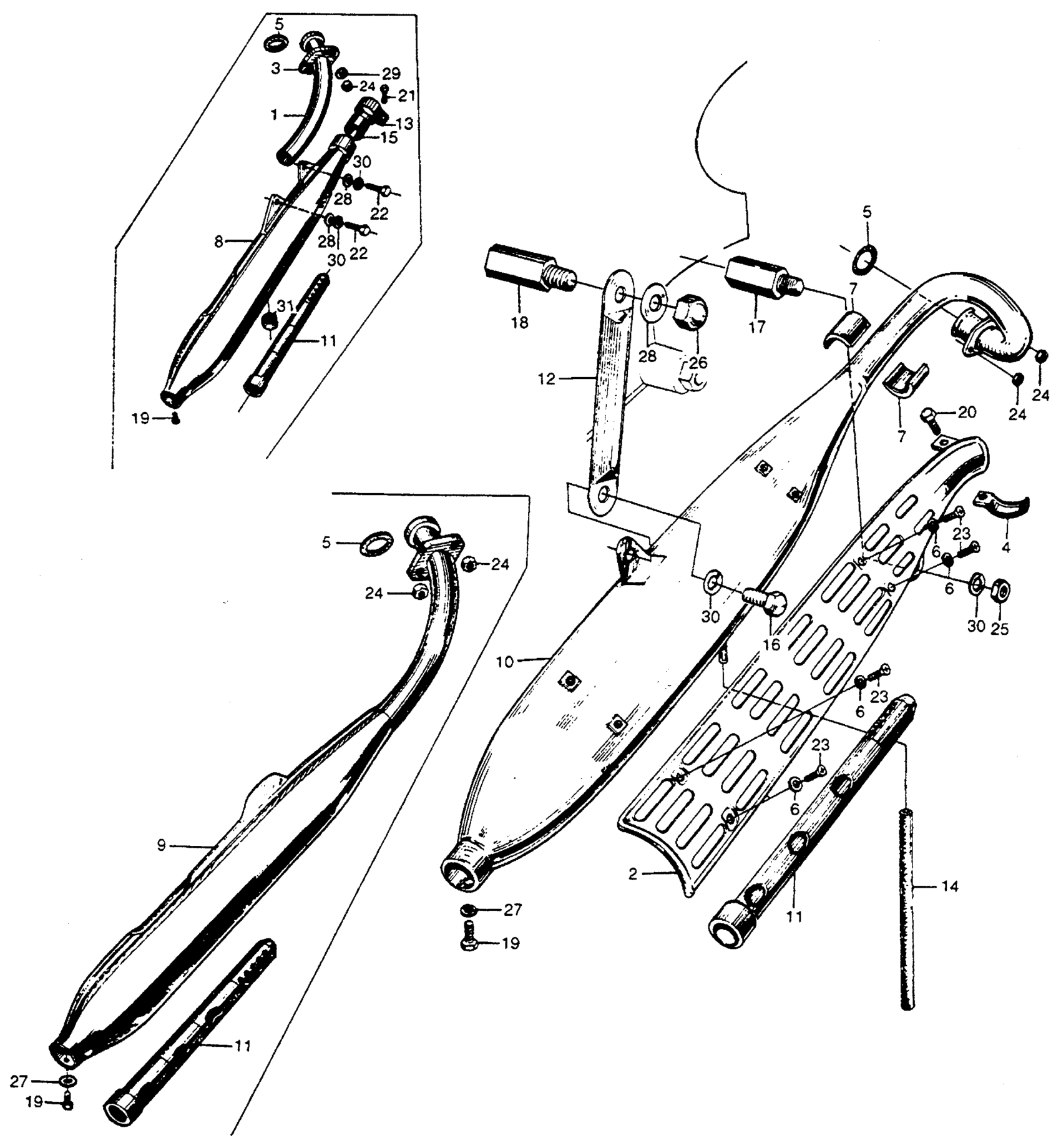

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 MUFFLER Diagram

#

Description
Price

1

MUFFLER (NOT AVAILABLE) | Use from Frame SN 424487 to 527510

18200-028-000

Unavailable

1

MUFFLER (NOT AVAILABLE) | Use from Frame SN 527511 to 570698

18200-028-010

Unavailable

2

PROTECTOR, MUFFLER (NOT AVAILABLE) | Use from Frame SN 106956 to 570698

18230-056-010

Unavailable

3

JOINT | Use from Frame SN 424487 to 570698

18231-028-000

Unavailable

5

GASKET, EX. PIPE | Use from Frame SN 106956 This part replaces 18291-028-000.

18291-028-306

$7.30

5

GASKET, EX. PIPE | Use from Frame SN 424487 This part replaces 18291-028-000.

18291-028-306

$7.30

5

GASKET, EX. PIPE | Use from Frame SN 106956

18291-028-306

$7.30

5

GASKET, EX. PIPE | Use from Frame SN 424487

18291-028-306

$7.30

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 424487 to 570698

183A0-028-010

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 111565 to 118518 This part replaces 18300-028-000.

18300-028-007

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 111565 to 118518

18300-028-007

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 424487 to 570698 This part replaces 18300-028-010.

183A0-028-010

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 424487 to 570698 This part replaces 18300-028-017.

183A0-028-010

Unavailable

9

MUFFLER, EX. (NOT AVAILABLE) | Use from Frame SN 570699 to 591615

183A0-028-030

Unavailable

9

MUFFLER, EX. (NOT AVAILABLE) | Use from Frame SN 570699 to 591615 This part replaces 18300-028-020.

183A0-028-030

Unavailable

9

MUFFLER (NOT AVAILABLE) | Use from Frame SN 591616 to S90 This part replaces 18300-028-670.

18300-028-677

Unavailable

9

MUFFLER (NOT AVAILABLE) | Use from Frame SN 591616 to S90

18300-028-677

Unavailable

11

PIPE, EX. DIFFUSER (NOT AVAILABLE) | Use from Frame SN 424486

18301-028-000

Unavailable

13

BAND, MUFFLER (NOT AVAILABLE) | Use from Frame SN 424487 to 570698

18371-028-000

Unavailable

15

GASKET, MUFFLER | Use from Frame SN 424487 to 570698

18391-ML8-000

$9.49

15

GASKET, MUFFLER | Use from Frame SN 424487 to 570698 This part replaces 18391-028-000.

18391-ML8-000

$9.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (8X22) This part replaces 90061-030-000.

92101-08022-0A

Unavailable

22

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

22

BOLT, HEX. (8X22) This part replaces 92000-08022.

92101-08022-0A

Unavailable

22

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

22

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

22

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

RUBBER A, STAND STOPPER | Use from Frame SN 424487

95011-61000

$1.49
