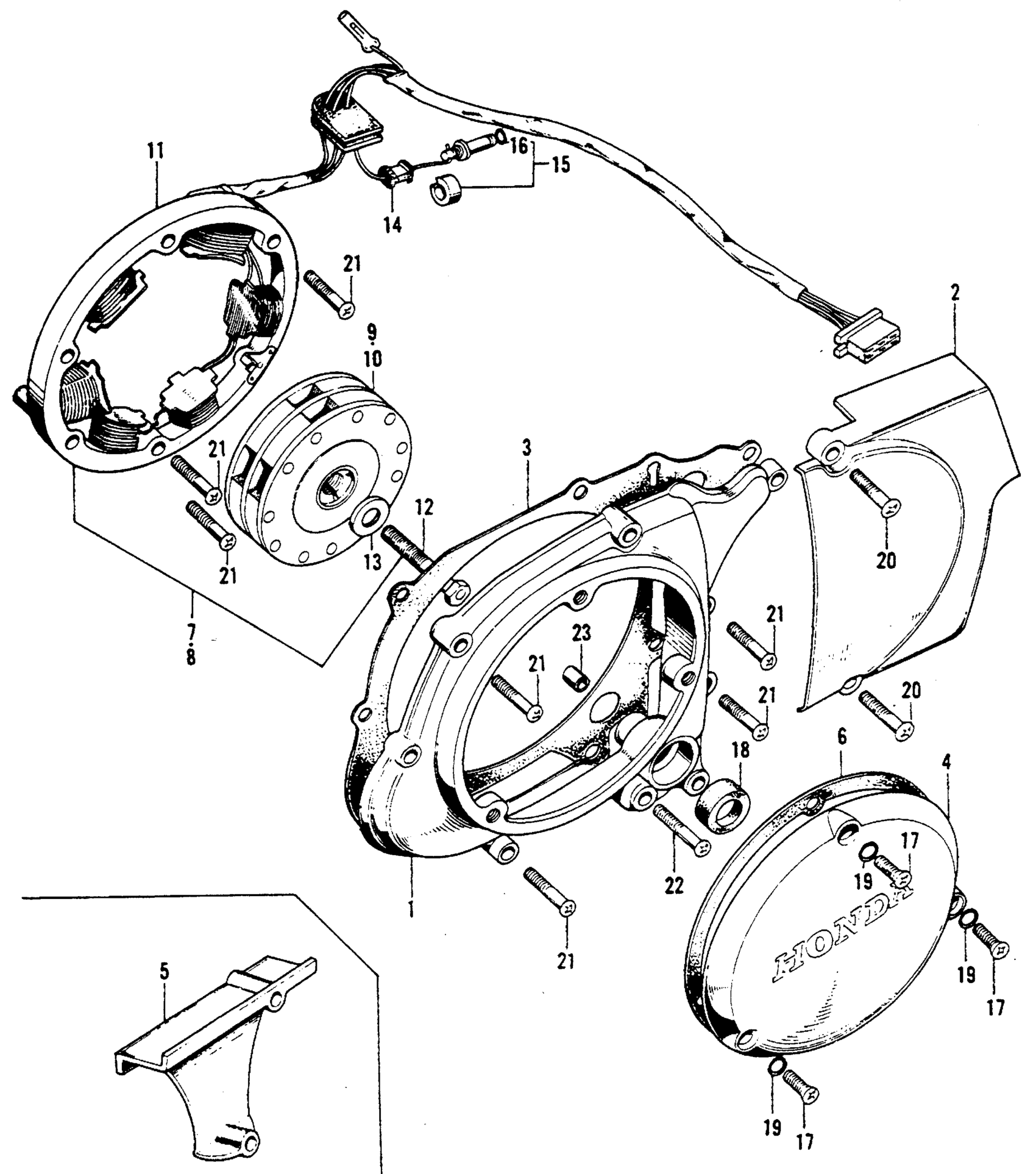

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 111565 to 135974

11341-028-010

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

11341-028-020

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 527511 to 645880A

11341-028-030

Unavailable

2

COVER, L. RR. CRANKCASE | Use from Engine SN 111565 to 111944 This part replaces 11361-028-010.

11361-028-020

Unavailable

2

COVER, L. RR. CRANKCASE | Use from Engine SN 111565 to 135974

11361-028-020

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 424487 to 490201 This part replaces 11361-028-030.

11361-128-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 424487 to 490201 This part replaces 11361-028-040.

11361-128-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 424487 to 490201

11361-128-000

Unavailable

3

GASKET, R. | Use from Engine SN 645881A This part replaces 11394-028-040.

11394-028-308

Unavailable

3

GASKET, L. | Use from Engine SN 424487 to 527510 This part replaces 11394-028-010.

11394-028-307

Unavailable

3

GASKET, L. | Use from Engine SN 424487 to 645880A This part replaces 11394-028-020.

11394-028-307

Unavailable

4

COVER, ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424486

11431-028-000

Unavailable

5

COVER, DRIVE SPROCKET | Use from Engine SN 424487 to 490201 This part replaces 11661-028-000.

11661-028-010

$18.75

5

COVER, DRIVE SPROCKET | Use from Engine SN 424487 to 490201

11661-028-010

$18.75

6

GASKET, ALTERNATOR COVER | Use from Engine SN 424487 This part replaces 11691-028-000.

11691-028-306

Unavailable

6

GASKET, ALTERNATOR COVER | Use from Engine SN 424487

11691-028-306

Unavailable

7

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 726469 This part replaces 31100-028-034.

31100-028-094

Unavailable

7

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 726469 This part replaces 31100-028-074.

31100-028-094

Unavailable

7

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 726469

31100-028-094

Unavailable

7

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 955350

31100-028-094

Unavailable

8

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 31100-028-034.

31100-028-094

Unavailable

8

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 31100-028-074.

31100-028-094

Unavailable

8

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

31100-028-094

Unavailable

8

ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 31100-028-671.

31100-028-094

Unavailable

9

ROTOR (NOT AVAILABLE) | Use from Engine SN 424487 to 726469

31101-028-003

Unavailable

9

ROTOR (NOT AVAILABLE) | Use from Engine SN 424487 to 726469

31101-028-004

Unavailable

9

ROTOR (KOKUSAN) (NOT AVAILABLE) | Use from Engine SN 726470

31101-053-003

Unavailable

9

ROTOR (DENSO) (NOT AVAILABLE) | Use from Engine SN 726470

31101-053-004

Unavailable

10

ROTOR | Use from Engine SN 424487 to 527510

31101-028-812

Unavailable

10

ROTOR | Use from Engine SN 424487 to 527510

31101-028-813

Unavailable

11

STATOR (NOT AVAILABLE) | Use from Engine SN 935350

31102-028-054

Unavailable

11

STATOR (NOT AVAILABLE)

31102-028-053

Unavailable

12

BOLT A1, ROTOR | Use from Engine SN 424487 This part replaces 31104-028-000.

95015-11100

Unavailable

12

BOLT A1, ROTOR | Use from Engine SN 424487

95015-11100

Unavailable

13

WASHER, ROTOR SETTING (NOT AVAILABLE) | Use from Engine SN 424487

31105-028-000

Unavailable

14

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE) | Use from Engine SN 424487

32981-028-010

Unavailable

15

CONTACT ASSY., NEUTRAL SWITCH | Use from Engine SN 424487

35750-028-000

Unavailable

16

O-RING (7X1.6) | Use from Engine SN 424487

37551-001-000

Unavailable

17

SCREW, OVAL (6X18) (NOT AVAILABLE) | Use from Engine SN 424487 This part replaces 90141-028-000.

93700-06018-02

Unavailable

17

SCREW, OVAL (6X18) (NOT AVAILABLE) | Use from Engine SN 424487 This part replaces 93700-06018-0B.

93700-06018-02

Unavailable

18

OIL SEAL (11.6X24X10) (ARAI) | Use from Engine SN 424487 This part replaces 91203-001-000.

91208-KB4-671

$4.06

18

OIL SEAL (11.6X24X10) (ARAI) | Use from Engine SN 424487 This part replaces 91204-035-000.

91208-KB4-671

$4.06

18

OIL SEAL (11.6X24X10) (ARAI) | Use from Engine SN 424487 This part replaces 91204-035-003.

91208-KB4-671

$4.06

18

OIL SEAL (11.6X24X10) (ARAI) | Use from Engine SN 424487 This part replaces 91204-121-000.

91208-KB4-671

$4.06

18

OIL SEAL (11.6X23X10) (ARAI) | Use from Engine SN 424487

91208-KB4-671

$4.06

19

O-RING (5.5X1.5) | Use from Engine SN 424487

91301-216-000

$2.38

20

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

20

SCREW, PAN (6X20)

93500-06020-0A

$1.49

21

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

22

SCREW, PAN (6X35)

93500-06035-0A

$1.49

22

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

23

PIN A, DOWEL (10X14)

94301-10140

$2.28
