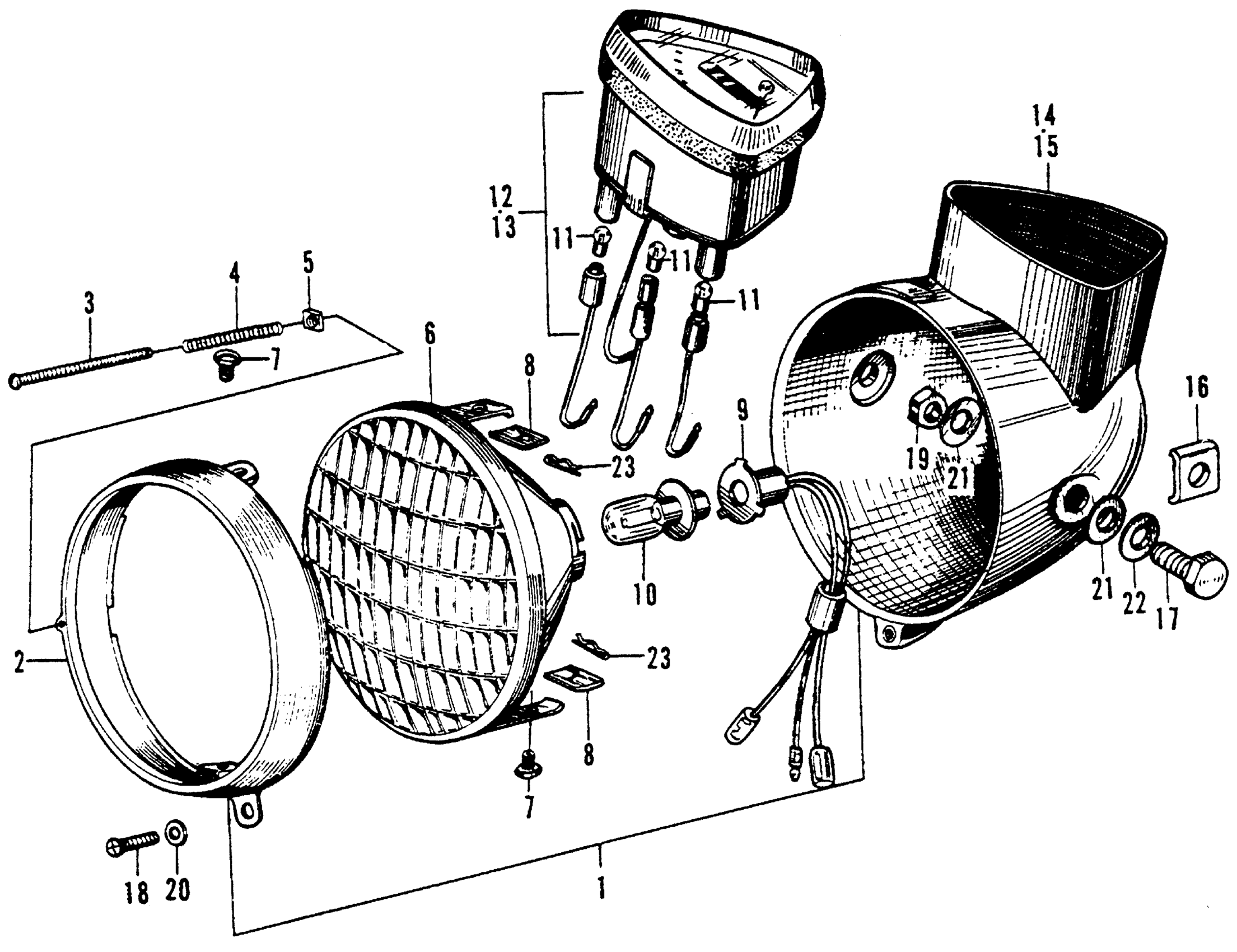

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 424487 to 812057 This part replaces 33100-028-671.

33100-028-673

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 812058 This part replaces 33100-028-672.

33100-028-673

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 812058

33100-028-673

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 424487 to 460749 This part replaces 33100-028-670.

33100-028-673

Unavailable

2

RIM, HEADLIGHT (N/A: SEE ASSEMBLY) | Use from Frame SN 424487

33101-028-672

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE) | Use from Frame SN 424487 to 800147

33102-001-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) | Use from Frame SN 800148

33102-041-003

$2.25

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) | Use from Frame SN 800148 This part replaces 33102-041-670.

33102-041-003

$2.25

4

SPRING, HEADLIGHT SETTING | Use from Frame SN 424487

33107-030-003

$2.54

5

NUT, HEADLIGHT BEAM ADJ. | Use from Frame SN 424487 to 800147

33117-001-003

Unavailable

5

NUT, BEAM ADJ. | Use from Frame SN 800148

33117-041-003

$1.95

6

HEADLIGHT UNIT (6V35/25W) (N/A: SEE ASSEMBLY) | Use from Frame SN 424487 This part replaces 33120-028-672.

33120-028-673

Unavailable

6

HEADLIGHT UNIT (6V35/25W) (N/A: SEE ASSEMBLY) | Use from Frame SN 424487

33120-028-673

Unavailable

7

SCREW, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 424487 to 800147

33125-200-030

Unavailable

7

SCREW, UNIT HOLDER | Use from Frame SN 800148

33125-292-670

Unavailable

8

NUT, UNIT HOLDER | Use from Frame SN 424487 to 800147 This part replaces 33128-200-030.

33128-292-670

$2.94

8

NUT, UNIT HOLDER | Use from Frame SN 424487

33128-292-670

$2.94

9

SOCKET, HEADLIGHT (N/A: SEE ASSEMBLY) | Use from Frame SN 424487 to 812057

33130-028-670

Unavailable

10

BULB, HEADLIGHT (6V25/25W) (STANLEY) | Use from Frame SN 424487 to 812057

34901-030-003

$9.57

10

BULB, HEADLIGHT (6V25/25W) (STANLEY) | Use from Frame SN 521395 to 812057 This part replaces 34901-030-671.

34901-030-003

$9.57

10

BULB, HEADLIGHT (6V25/25W) (STANLEY) | Use from Frame SN 424487 to 812057

34901-087-640

$9.57

11

BULB, SPEEDOMETER (6V1.5W) (STANLEY) | Use from Frame SN 424487

34908-001-000

$5.57

13

SPEEDOMETER ASSY. (MILE) (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 37200-028-670.

37200-028-672

Unavailable

13

SPEEDOMETER ASSY. (MILE) (NOT AVAILABLE) | Use from Frame SN 424487

37200-028-672

Unavailable

13

SPEEDOMETER ASSY. (MILE) (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 37200-028-810.

37200-028-672

Unavailable

14

CASE, HEADLIGHT *NH1* (BLACK) (N/A: SEE ASSEMBLY) | Use from Frame SN 460750 to 800147 This part replaces 61301-028-020B.

61301-028-325B

Unavailable

14

CASE, HEADLIGHT *R2* (SCARLET) (N/A: SEE ASSEMBLY) | Use from Frame SN 460750 to 800147 This part replaces 61301-028-020C.

61301-028-325C

Unavailable

14

CASE, HEADLIGHT *NH1* (BLACK) (N/A: SEE ASSEMBLY) | Use from Frame SN 460750 to 800147

61301-028-325B

Unavailable

14

CASE, HEADLIGHT *R2* (SCARLET) (N/A: SEE ASSEMBLY) | Use from Frame SN 460750 to 800147

61301-028-325C

Unavailable

14

CASE, HEADLIGHT *NH1* (BLACK) (N/A: SEE ASSEMBLY) | Use from Frame SN 424487 to 460749

61301-028-600B

Unavailable

14

CASE, HEADLIGHT *R2* (SCARLET) (N/A: SEE ASSEMBLY) | Use from Frame SN 424487 to 460749

61301-028-600C

Unavailable

14

CASE, HEADLIGHT *PB5* (ROYAL BLUE) (N/A: SEE ASSEMBLY) | Use from Frame SN 424487 to 460749

61301-028-600E

Unavailable

15

CASE, HEADLIGHT *R4C* (CANDY RUBY RED) | Use from Frame SN 800148 This part replaces 61301-056-671AA.

61301-056-672ZA

Unavailable

15

CASE, HEADLIGHT *PB1C* (CANDY BLUE) (NOT AVAILABLE) | Use from Frame SN 800148 This part replaces 61301-056-671AB.

61301-056-672AB

Unavailable

15

CASE, HEADLIGHT *NH1* (BLACK) (N/A: SEE ASSEMBLY) | Use from Frame SN 800148 This part replaces 61301-056-671B.

61301-056-672B

Unavailable

15

CASE, HEADLIGHT *R4C* (CANDY RUBY RED) | Use from Frame SN 800148 This part replaces 61301-056-671CM.

61301-056-672ZA

Unavailable

15

CASE, HEADLIGHT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 800148

61301-056-671S

Unavailable

15

CASE, HEADLIGHT *PB1C* (CANDY BLUE) (NOT AVAILABLE) | Use from Frame SN 800148

61301-056-672AB

Unavailable

15

CASE, HEADLIGHT *NH1* (BLACK) (N/A: SEE ASSEMBLY) | Use from Frame SN 800148

61301-056-672B

Unavailable

15

CASE, HEADLIGHT *R4C* (CANDY RUBY RED) | Use from Frame SN 800148

61301-056-672ZA

Unavailable

16

WASHER, HEADLIGHT CASE | Use from Frame SN 800148

61303-229-000

$2.67

17

BOLT, HEX. (8X22) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08022-0B.

92101-08022-0B

Unavailable

17

BOLT, HEX. (8X22) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08022-02.

92101-08022-0B

Unavailable

17

BOLT, HEX. (8X22) (SOURCE: VINTAGE PARTS INC.)

92101-08022-0B

Unavailable

18

SCREW, PAN (5X12)

93500-05012-0B

$1.49

18

SCREW, PAN (5X12) This part replaces 93500-05012-02.

93500-05012-0B

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

NUT, HEX. (8MM)

94030-08000

$1.49

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, PLAIN (8MM)

94101-08200

$1.49

22

WASHER, SPRING (8MM)

94111-08200

Unavailable

23

PIN, LOCK (5MM)

94251-05000

$1.49
