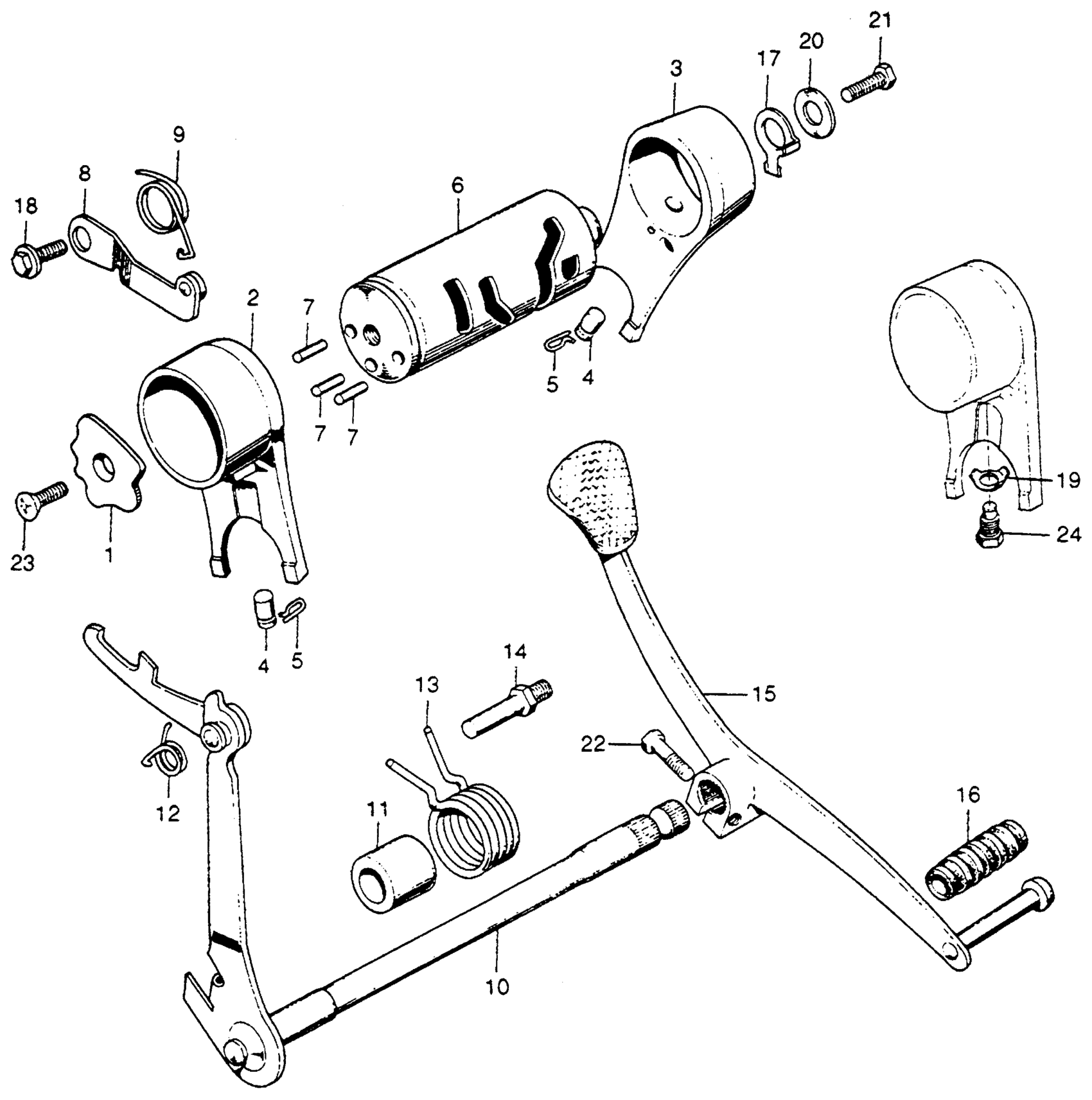

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 GEARSHIFT FORK Diagram

#

Description
Price

1

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 609970 to 666748

24425-028-601

Unavailable

1

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 666749 This part replaces 24425-028-602.

24425-128-000

Unavailable

1

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 666749

24425-128-000

Unavailable

1

PLATE SET, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 424487 to 609969

24025-028-600

Unavailable

2

FORK, R. GEARSHIFT | Use from Engine SN 527511

24211-028-345

Unavailable

2

FORK, R. GEARSHIFT | Use from Engine SN 424487 to 527510 This part replaces 24211-028-000.

24211-028-010

Unavailable

2

FORK, R. GEARSHIFT | Use from Engine SN 424487 to 527510

24211-028-010

Unavailable

2

FORK, R. GEARSHIFT | Use from Engine SN 527511 to 583760 This part replaces 24211-028-030.

24211-028-345

Unavailable

3

FORK, L. GEARSHIFT | Use from Engine SN 527511

24221-028-335

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

24221-028-010

Unavailable

4

PIN, GEARSHIFT FORK GUIDE | Use from Engine SN 527511 This part replaces 24261-028-010.

24261-121-742

$2.33

4

PIN, GEARSHIFT FORK GUIDE | Use from Engine SN 527511 This part replaces 24261-121-740.

24261-121-742

$2.33

4

PIN, GEARSHIFT FORK GUIDE | Use from Engine SN 527511 This part replaces 24261-121-741.

24261-121-742

$2.33

5

CLIP, GEARSHIFT FORK GUIDE | Use from Engine SN 527511

24263-028-000

$2.66

6

DRUM, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 527511 This part replaces 24301-028-605.

24301-028-606

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 527511

24301-028-606

Unavailable

6

DRUM, GEARSHIFT | Use from Engine SN 424487 to 527510

24301-028-603

Unavailable

7

PIN, GEARSHIFT DRUM | Use from Engine SN 424487 This part replaces 24421-200-000.

24421-230-000

$5.80

7

PIN, GEARSHIFT DRUM | Use from Engine SN 424487

24421-230-000

$5.80

8

STOPPER, SHIFT DRUM (NOT AVAILABLE) | Use from Engine SN 609970 to 666748

24430-028-601

Unavailable

8

ARM | Use from Engine SN 666749 This part replaces 24430-028-602.

24430-459-950

$15.78

8

ARM | Use from Engine SN 666749 This part replaces 24430-028-603.

24430-459-950

$15.78

8

ARM | Use from Engine SN 666749 This part replaces 24430-943-000.

24430-459-950

$15.78

8

ARM | Use from Engine SN 666749 This part replaces 24430-943-010.

24430-459-950

$15.78

8

STOPPER, SHIFT DRUM (NOT AVAILABLE) | Use from Engine SN 424487 to 609969

24430-028-600

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 424487

24435-028-680

Unavailable

10

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 939179

24610-028-030

Unavailable

10

SPINDLE, GEARSHIFT | Use from Engine SN 424487 to 527510

24610-028-000

Unavailable

11

COLLAR (12.5MM) (NOT AVAILABLE) | Use from Engine SN 625756

24621-028-000

Unavailable

12

SPRING, GEARSHIFT ARM | Use from Engine SN 424487

24641-028-000

$1.33

13

SPRING, GEARSHIFT RETURN (NOT AVAILABLE) | Use from Engine SN 424487

24651-028-000

Unavailable

14

PIN, SHIFT RETURN SPRING | Use from Engine SN 424487

24652-028-000

$9.72

15

PEDAL, GEARSHIFT | Use from Engine SN 424487 to 939178 This part replaces 24700-028-670.

24700-111-970

Unavailable

15

PEDAL, GEARSHIFT | Use from Engine SN 424487

24700-111-970

Unavailable

16

RUBBER, CHANGE PEDAL | Use from Engine SN 424487 This part replaces 24781-205-000.

95011-40000

$1.49

16

RUBBER, CHANGE PEDAL | Use from Engine SN 424487 This part replaces 24781-268-000.

95011-40000

$1.49

16

RUBBER, SHIFT PEDAL | Use from Engine SN 424487

95011-40000

$1.49

17

ROTOR, NEUTRAL SWITCH | Use from Engine SN 672266

35753-KG2-951

$4.76

17

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE) | Use from Engine SN 424487 to 672265

35753-028-600

Unavailable

17

ROTOR, NEUTRAL SWITCH | Use from Engine SN 672266 This part replaces 35753-028-601.

35753-KG2-951

$4.76

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT | Use from Engine SN 424487 This part replaces 90023-041-000.

90023-041-010

$2.25

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT | Use from Engine SN 424487

90023-041-010

$2.25

19

WASHER, FORK PIN (NOT AVAILABLE) | Use from Engine SN 424487 to 57510

90416-001-000

Unavailable

20

WASHER, GEARSHIFT DRUM SIDE | Use from Engine SN 424487

90417-041-000

$2.19

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

22

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

23

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

23

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

24

PIN, SHIFT FORK GUIDE (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

24261-001-000

Unavailable
