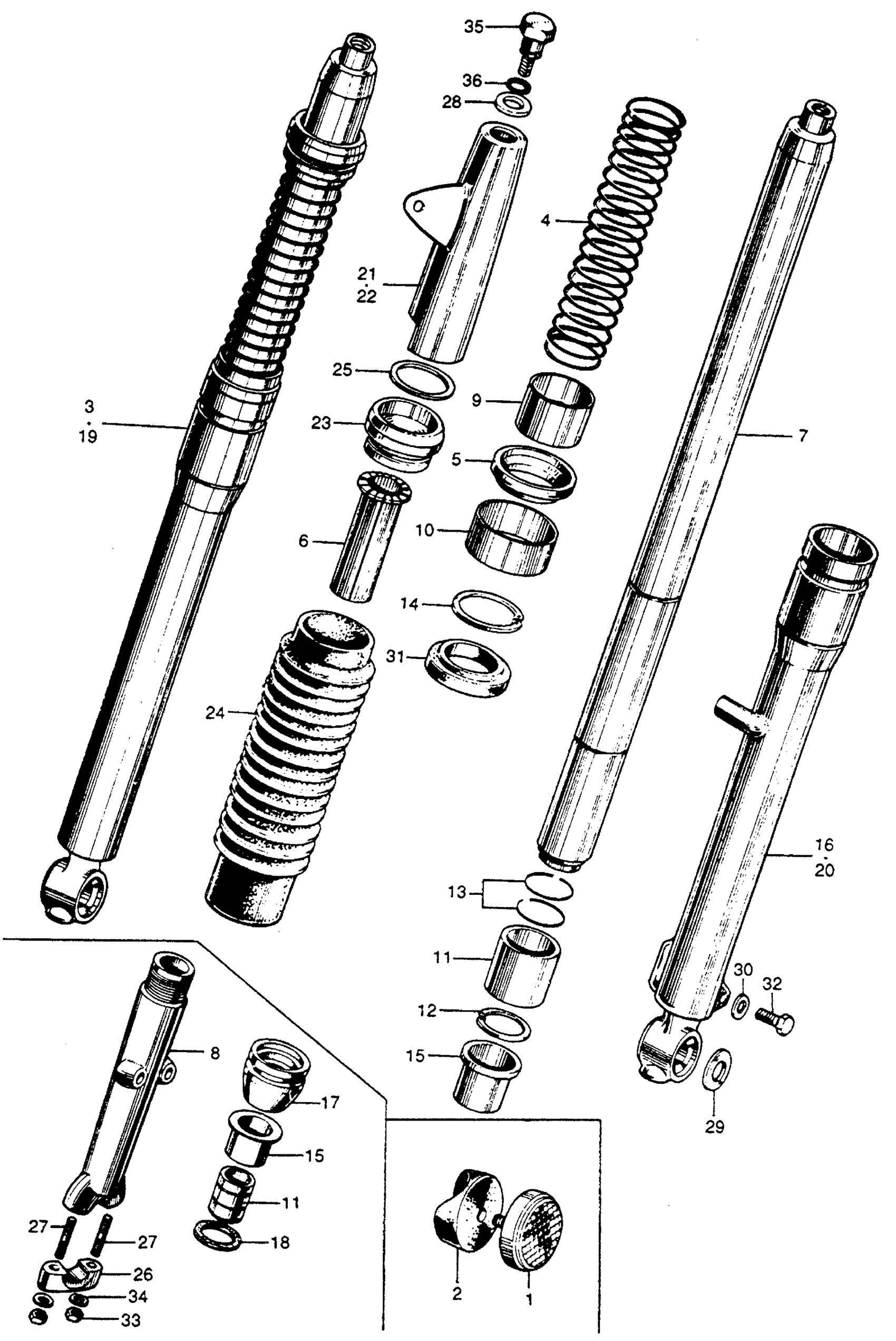

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX | Use from Frame SN 827879 This part replaces 33741-045-671.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX | Use from Frame SN 827879 This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX | Use from Frame SN 827879

33741-315-000

$25.26

2

BASE, FR. REFLECTOR (NOT AVAILABLE) | Use from Frame SN 827879

33744-089-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 424487 to 534940

51400-028-010

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 534941 to 639754A

51400-028-020

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 679641 This part replaces 51400-028-030T.

51400-028-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 679641

51400-028-670

Unavailable

4

SPRING, FR. FORK | Use from Frame SN 424487 This part replaces 51401-028-000.

51401-459-911

Unavailable

4

SPRING, FR. FORK | Use from Frame SN 424487 This part replaces 51401-459-670.

51401-459-911

Unavailable

4

SPRING, FR. FORK | Use from Frame SN 424487

51401-459-911

Unavailable

5

SEAT, FR. FORK SPRING (NOT AVAILABLE) | Use from Frame SN 639755A

51407-229-000

Unavailable

5

SEAT, FR. RUBBER SPRING (LOWER) (NOT AVAILABLE) | Use from Frame SN 534941 to 639754A

51407-028-010

Unavailable

6

GUIDE, FR. FORK SPRING | Use from Frame SN 424487

51409-028-000

$2.13

7

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 424487 to 470100 This part replaces 51410-028-010.

51410-028-020

Unavailable

7

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 424487 to 639754A

51410-028-020

Unavailable

7

PIPE, FR. FORK | Use from Frame SN 639755A

51410-229-000

Unavailable

8

PIPE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 639755A to 679640

51420-056-000S

Unavailable

9

GUIDE, FR. FORK SPRING (LOWER) | Use from Frame SN 639755A

51430-229-000

Unavailable

10

RING, CASE (LOWER) (NOT AVAILABLE) | Use from Frame SN 534941

51435-028-000

Unavailable

11

PISTON, FORK (27MM) | Use from Frame SN 639755A This part replaces 51442-229-000.

94603-27002

Unavailable

11

PISTON, FORK (27MM) | Use from Frame SN 639755A

94603-27002

Unavailable

11

PISTON, FR. FORK (NOT AVAILABLE) | Use from Frame SN 424487 to 470100 This part replaces 51442-028-000.

51442-028-010

Unavailable

11

PISTON, FR. FORK (NOT AVAILABLE) | Use from Frame SN 424487 to 639754A

51442-028-010

Unavailable

12

RING B, SNAP (27MM) (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 51445-028-000.

94580-27000

Unavailable

13

RING A, SNAP (27MM) | Use from Frame SN 424487 This part replaces 51446-028-000.

94570-27000

Unavailable

13

RING A, SNAP (27MM) | Use from Frame SN 424487

94570-27000

Unavailable

14

CIRCLIP (INNER) (37MM) | Use from Frame SN 534941

51447-028-000

Unavailable

15

GUIDE, FORK PIPE (27MM) | Use from Frame SN 53491 This part replaces 51451-028-010.

94602-27201

Unavailable

15

GUIDE, FORK PIPE (27MM) | Use from Frame SN 53491

94602-27201

Unavailable

15

GUIDE, FR. FORK PIPE (NOT AVAILABLE) | Use from Frame SN 424487 to 534940

51451-028-000

Unavailable

16

PIPE, R. FR. FORK (LOWER) | Use from Frame SN 424487 to 451348

51466-028-020

Unavailable

16

PIPE, R. FR. FORK (LOWER) | Use from Frame SN 451349 to 534940

51466-028-030

Unavailable

16

PIPE, R. FR. FORK (LOWER) | Use from Frame SN 534941 to 639754A

51466-028-040

$329.57

17

HOUSING, FR. FORK SEAL (NOT AVAILABLE) | Use from Frame SN 424487 to 534940

51471-028-010

Unavailable

18

O-RING (34.4X2.4) (NOT AVAILABLE) | Use from Frame SN 424487 to 534940

51493-028-000

Unavailable

19

FORK ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN 424487 to 534940

51500-028-010

Unavailable

19

FORK ASSY., L. FR. | Use from Frame SN 534941

51500-028-020

Unavailable

19

FORK ASSY., L. FR. | Use from Frame SN 686859

51500-028-670

Unavailable

20

PIPE, L. FR. FORK (LOWER) | Use from Frame SN 679641

51520-056-000

Unavailable

20

PIPE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 639755A to 679640

51520-056-000S

Unavailable

20

PIPE, L. FR. FORK (LOWER) | Use from Frame SN 424487 to 451348

51566-028-020

Unavailable

20

PIPE, L. FR. FORK (LOWER) | Use from Frame SN 451349 to 534940

51566-028-030

Unavailable

20

PIPE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 534941 to 639754A

51566-028-040

Unavailable

21

COVER, R. FR. FORK (NOT AVAILABLE) | Use from Frame SN 827879

51602-028-670Z

Unavailable

21

COVER, R. FR. FORK | Use from Frame SN 424487

51602-028-010Z

Unavailable

22

COVER, L. FR. FORK (NOT AVAILABLE) | Use from Frame SN 827879

51606-028-670Z

Unavailable

23

SEAT, FR. COVER (LOWER) | Use from Frame SN 424487

51608-028-000

Unavailable

24

BOOT, FR. FORK | Use from Frame SN 424487 This part replaces 51611-106-000.

51611-459-880

$25.33

24

BOOT, FR. FORK | Use from Frame SN 424487

51611-459-880

$25.33

25

GASKET, FORK COVER SEAT (LOWER) (NOT AVAILABLE) | Use from Frame SN 424487

51624-028-000

Unavailable

26

HOLDER, FR. AXLE | Use from Frame SN 424487 to 639754A

51634-028-000

Unavailable

27

BOLT, STUD PIPE (LOWER) | Use from Frame SN 424487 to 639754A

90155-028-000

Unavailable

28

WASHER, FORK BOLT (13MM) | Use from Frame SN 600227 This part replaces 94606-13000.

94606-13001

$1.49

28

WASHER, FORK BOLT (13MM) | Use from Frame SN 600227

94606-13001

$1.49

28

WASHER, FR. FORK (NOT AVAILABLE) | Use from Frame SN 424487 to 600266

90506-273-000

Unavailable

29

WASHER (12.5MM) | Use from Frame SN 639755A

90528-229-000

$2.02

30

GASKET, FR. FORK DRAIN VALVE | Use from Frame SN 424487

90543-273-000

$2.46

30

GASKET, FORK DRAIN VALVE (NOT AVAILABLE) | Use from Frame SN 111565 to 135438

90543-025-000

Unavailable

31

OIL SEAL, FR. FORK | Use from Frame SN 534941

90756-028-000

$12.47

32

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

32

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

32

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

33

NUT, HEX. (8MM)

94001-08000-0S

$1.49

33

NUT, HEX. (8MM)

94030-08000

$1.49

34

WASHER, PLAIN (8MM)

94101-08000

$1.49

35

BOLT, FORK A | Use from Frame SN 424487

94605-10101

$5.21

36

O-RING (8.4X2.4) | Use from Frame SN 424487

94608-10000

$1.49
