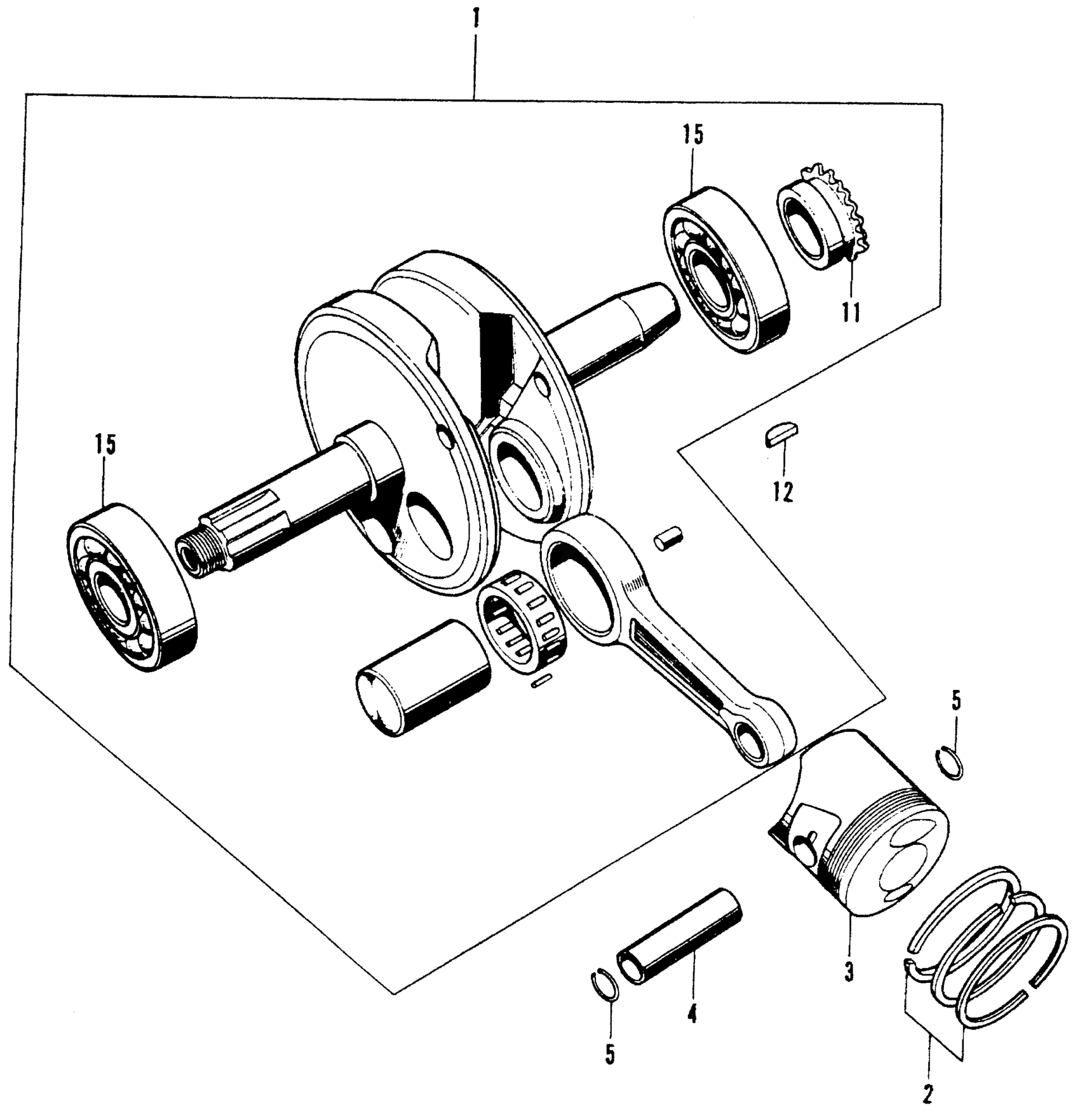

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use from Engine SN 637753

13000-028-040

Unavailable

1

CRANKSHAFT ASSY. | Use from Engine SN 111565 to 118685

13000-028-010

Unavailable

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

13000-028-020

Unavailable

1

CRANKSHAFT ASSY. | Use from Engine SN 527511 to 637752

13000-028-030

Unavailable

2

RING SET, PISTON (OS 0.50) | Use from Engine SN 569419

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) | Use from Engine SN 569419

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) | Use from Engine SN 569419

130D1-121-762

Unavailable

2

RING SET, PISTON | Use from Engine SN 569419 This part replaces 13010-028-025.

13011-121-762

$23.12

2

RING SET, PISTON | Use from Engine SN 569419 This part replaces 13010-028-035.

13011-121-762

$23.12

2

RING SET, PISTON | Use from Engine SN 569419 This part replaces 13010-121-732.

13011-121-762

$23.12

2

RING SET, PISTON | Use from Engine SN 569419

13011-121-762

$23.12

2

RING SET, PISTON (OS 0.50) | Use from Engine SN 569419 This part replaces 13030-028-025.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | Use from Engine SN 569419 This part replaces 13030-028-035.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | Use from Engine SN 569419 This part replaces 13030-121-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) | Use from Engine SN 569419 This part replaces 13040-028-025.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | Use from Engine SN 569419 This part replaces 13040-028-035.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | Use from Engine SN 569419 This part replaces 13040-121-732.

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) | Use from Engine SN 569419 This part replaces 13050-028-025.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | Use from Engine SN 569419 This part replaces 13050-028-035.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | Use from Engine SN 569419 This part replaces 13050-121-732.

130D1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25)

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-025.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-035.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-121-732.

130A1-121-762

Unavailable

3

PISTON (STD) | Use from Engine SN 616009

13101-028-070

Unavailable

3

PISTON (OS 0.25) | Use from Engine SN 616009

13102-028-070

$37.74

3

PISTON (OS 0.50) | Use from Engine SN 616009

13103-028-070

Unavailable

3

PISTON (0.75) | Use from Engine SN 616009

13104-028-070

Unavailable

3

PISTON (1.00) | Use from Engine SN 616009

13105-028-070

Unavailable

3

PISTON (STD) | Use from Engine SN 111565 to 119484

13101-028-314

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | Use from Engine SN 111565 to 119484

13102-028-314

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | Use from Engine SN 111565 to 119484

13103-028-314

$63.67

3

PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 111565 to 119484

13104-028-314

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | Use from Engine SN 111565 to 119484

13105-028-314

Unavailable

4

PIN, PISTON | Use from Engine SN 424487

13111-028-000

$11.08

5

CLIP, PISTON PIN | Use from Engine SN 424487

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM) | Use from Engine SN 424487

94601-14000

$1.49

11

SPROCKET, TIMING (15T) | Use from Engine SN 527511

14311-028-010

Unavailable

11

SPROCKET, TIMING (15T) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

14311-028-000

Unavailable

12

KEY, WOODRUFF | Use from Engine SN 424487

90741-253-000

Unavailable

15

BEARING, RADIAL BALL (6305) This part replaces 96100-63050.

96100-63050-00

$15.27

15

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
