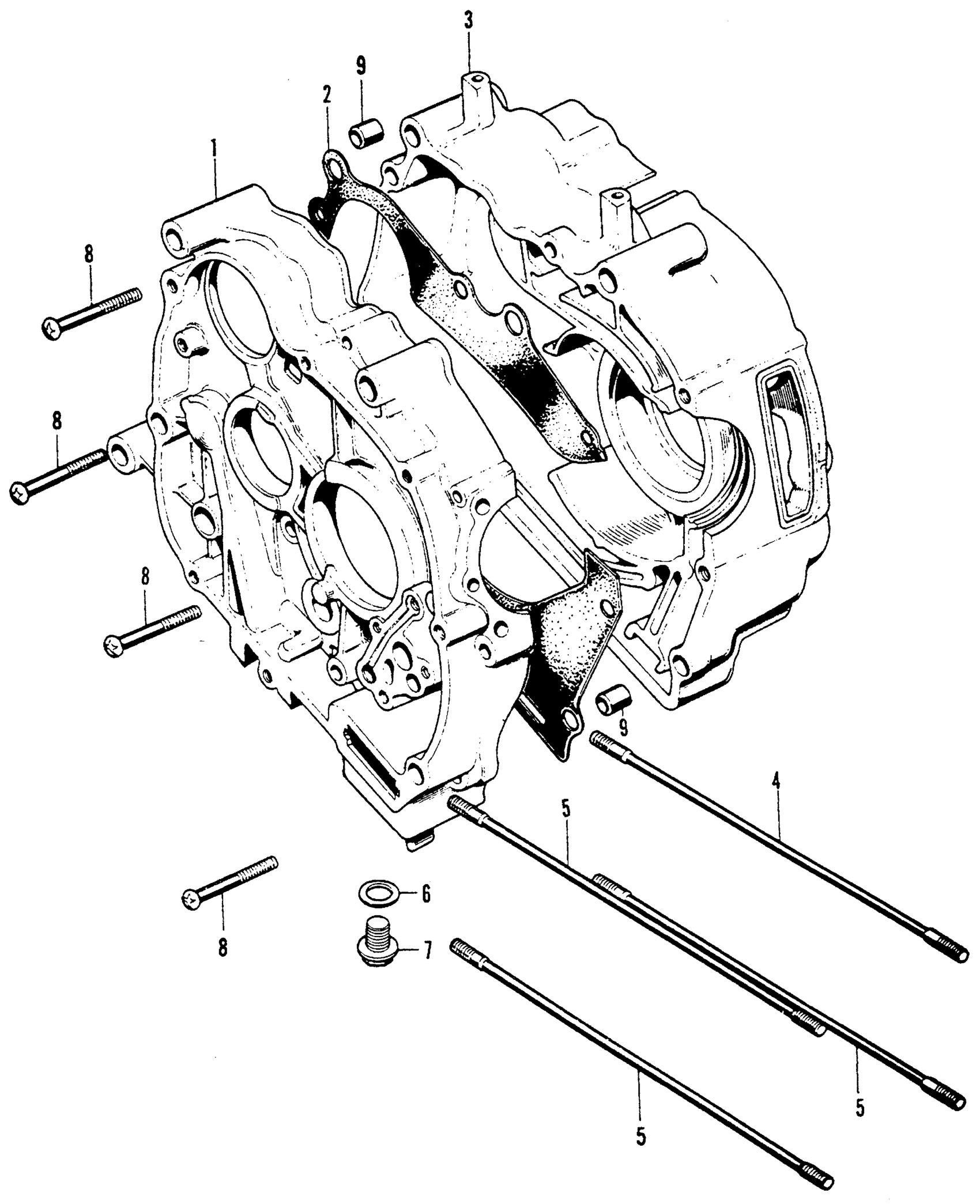

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 575924 to 839857

11100-028-090

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 839858

11100-028-110

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 424487 to 441567

11100-028-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 441568 to 575923

11100-028-080

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE) | Use from Engine SN 527511 This part replaces 11191-028-040.

11191-028-307

Unavailable

2

GASKET, CRANKCASE | Use from Engine SN 424487 to 527510 This part replaces 11191-028-010.

11191-028-306

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE) | Use from Engine SN 527511

11191-028-307

Unavailable

3

CRANKCASE, L. | Use from Engine SN 800148 to 839857

11200-028-170

Unavailable

3

CRANKCASE, L. | Use from Engine SN 839858

11200-028-180

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 424487 to 441567 This part replaces 11200-028-030.

11200-028-383

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

11200-028-383

Unavailable

4

BOLT A, CYLINDER STUD | Use from Engine SN 424487

90031-028-010

Unavailable

5

BOLT B, CYLINDER STUD | Use from Engine SN 441568

90032-028-020

Unavailable

5

STUD BOLT, CYLINDER (NOT AVAILABLE) | Use from Engine SN 424487 to 441567

90032-028-010

Unavailable

6

WASHER, DRAIN PLUG (12MM) | Use from Engine SN 424487 This part replaces 90407-231-000.

94109-12000

$1.49

6

GASKET, DRAIN VALVE (12.5X20) | Use from Engine SN 424487

90407-259-000

$2.92

6

WASHER, DRAIN PLUG (12MM) | Use from Engine SN 424487

94109-12000

$1.49

7

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

8

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

8

SCREW, PAN (6X40)

93500-06040-0A

$1.49

9

PIN A, DOWEL (10X14)

94301-10140

$2.28
