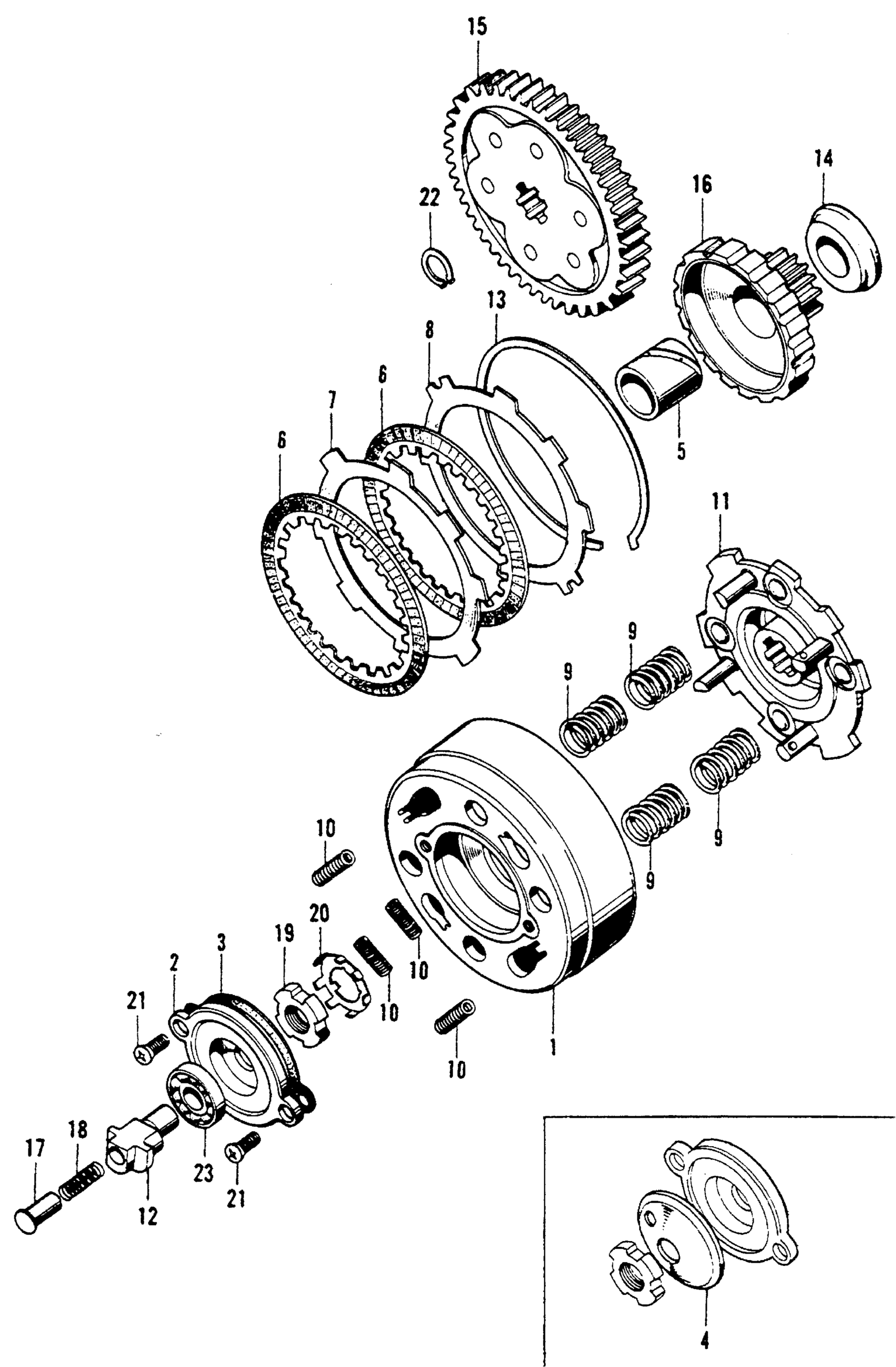

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 800148

22101-028-020

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 111565 to 119633 This part replaces 22101-030-000.

22101-030-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 111565 to 119633

22101-030-010

Unavailable

2

COVER, CLUTCH (OUTER) | Use from Engine SN 527511

22111-028-010

Unavailable

2

COVER, CLUTCH (OUTER) | Use from Engine SN 527511 to 561508 This part replaces 22111-028-000.

22111-028-010

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 111565 to 119633 This part replaces 22111-030-000.

22111-030-010

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 111565 to 119633

22111-030-010

Unavailable

3

GASKET, CLUTCH COVER | Use from Engine SN 527511 This part replaces 22112-028-000.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER | Use from Engine SN 527511 This part replaces 22112-028-306.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER | Use from Engine SN 527511 This part replaces 22112-121-630.

22112-121-632

$3.60

4

PLATE, OIL FILTER (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

22115-030-000

Unavailable

5

GUIDE, CLUTCH CENTER | Use from Engine SN 424487 This part replaces 22131-028-000.

22131-121-690

Unavailable

5

GUIDE, CLUTCH CENTER | Use from Engine SN 424487

22131-121-690

Unavailable

6

DISK, CLUTCH FRICTION | Use from Engine SN 424487 This part replaces 22201-028-000.

22201-030-405

Unavailable

6

DISK, CLUTCH FRICTION | Use from Engine SN 424487

22201-030-405

Unavailable

7

PLATE A, CLUTCH (NOT AVAILABLE) | Use from Engine SN 424487

22311-030-000

Unavailable

8

PLATE B, CLUTCH (NOT AVAILABLE) | Use from Engine SN 424487

22321-030-000

Unavailable

9

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 527511 to 707959

22401-028-000

Unavailable

9

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

22401-028-010

Unavailable

9

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 707960

22401-028-010

Unavailable

9

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 22401-030-000.

22401-028-010

Unavailable

10

SPRING, CLUTCH DAMPER | Use from Engine SN 424487

22421-035-000

$4.15

11

PLATE, DRIVE (NOT AVAILABLE) | Use from Engine SN 527511 to 637752

22511-028-000

Unavailable

11

PLATE, DRIVE (NOT AVAILABLE) | Use from Engine SN 637753

22511-028-010

Unavailable

11

PLATE, DRIVE | Use from Engine SN 424487 to 527510

22511-030-010

Unavailable

12

LIFTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 527511

22831-028-000

Unavailable

12

LIFTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

22831-030-000

Unavailable

13

SET-RING (102.5MM) | Use from Engine SN 606257 This part replaces 22901-028-000.

22901-102-700

Unavailable

13

SET-RING (102.5MM) | Use from Engine SN 606257

22901-102-700

Unavailable

13

SET-RING (101.5MM) | Use from Engine SN 424487 to 606256

22901-001-000

$4.02

13

SET-RING (101.5MM) | Use from Engine SN 424487 to 606256 This part replaces 22901-035-000.

22901-001-000

$4.02

14

COLLAR (20MM) (NOT AVAILABLE) | Use from Engine SN 424487

22911-028-000

Unavailable

15

GEAR, PRIMARY DRIVEN (67T) | Use from Engine SN 424487

23110-028-000

Unavailable

16

GEAR, DRIVE (18T) (NOT AVAILABLE) | Use from Engine SN 424487

23111-030-000

Unavailable

17

GUIDE, OIL (NOT AVAILABLE) | Use from Engine SN 527511

25551-028-000

Unavailable

17

GUIDE, OIL (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

25551-030-000

Unavailable

18

SPRING, OIL GUIDE (NOT AVAILABLE) | Use from Engine SN 527511

25555-028-000

Unavailable

18

SPRING, OIL GUIDE (NOT AVAILABLE) | Use from Engine SN 527511 This part replaces 25555-028-010.

25555-028-000

Unavailable

18

SPRING, OIL GUIDE (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

25576-703-000

Unavailable

19

NUT, LOCK (16MM) | Use from Engine SN 424487 This part replaces 90231-028-000.

90231-KCS-651

$4.21

20

WASHER, LOCK (16MM) | Use from Engine SN 637753

90431-028-010

$2.75

20

WASHER, LOCKING (16MM) (NOT AVAILABLE) | Use from Engine SN 424487

90431-030-000

Unavailable

21

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

21

SCREW, PAN (5X12)

93500-05012-0A

$1.49

22

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

23

BEARING, RADIAL BALL (6000) | Use from Engine SN 424487 This part replaces 96100-60000.

96100-60000-00

$8.13

23

BEARING, RADIAL BALL (6000) | Use from Engine SN 424487

96100-60000-00

$8.13
